Rockwell Automation Publication 1756-UM013B-EN-P - October 2019 109
Troubleshoot Your Module Appendix A
Point Diagnostics
Point diagnostics provide information on an individual point basis. For example,
you can check individual points on a 1756-IB16S safety input module for the
presence of a Short Circuit condition.
Remember the following:
• Not all 1756 ControlLogix digital safety I/O modules provide point
diagnostics.
• The point diagnostics that are available vary by module type and
functionality.
• There are some differences between modules, but most commonly, the
Module Properties dialog box category from which you can access point
diagnostics is Points.

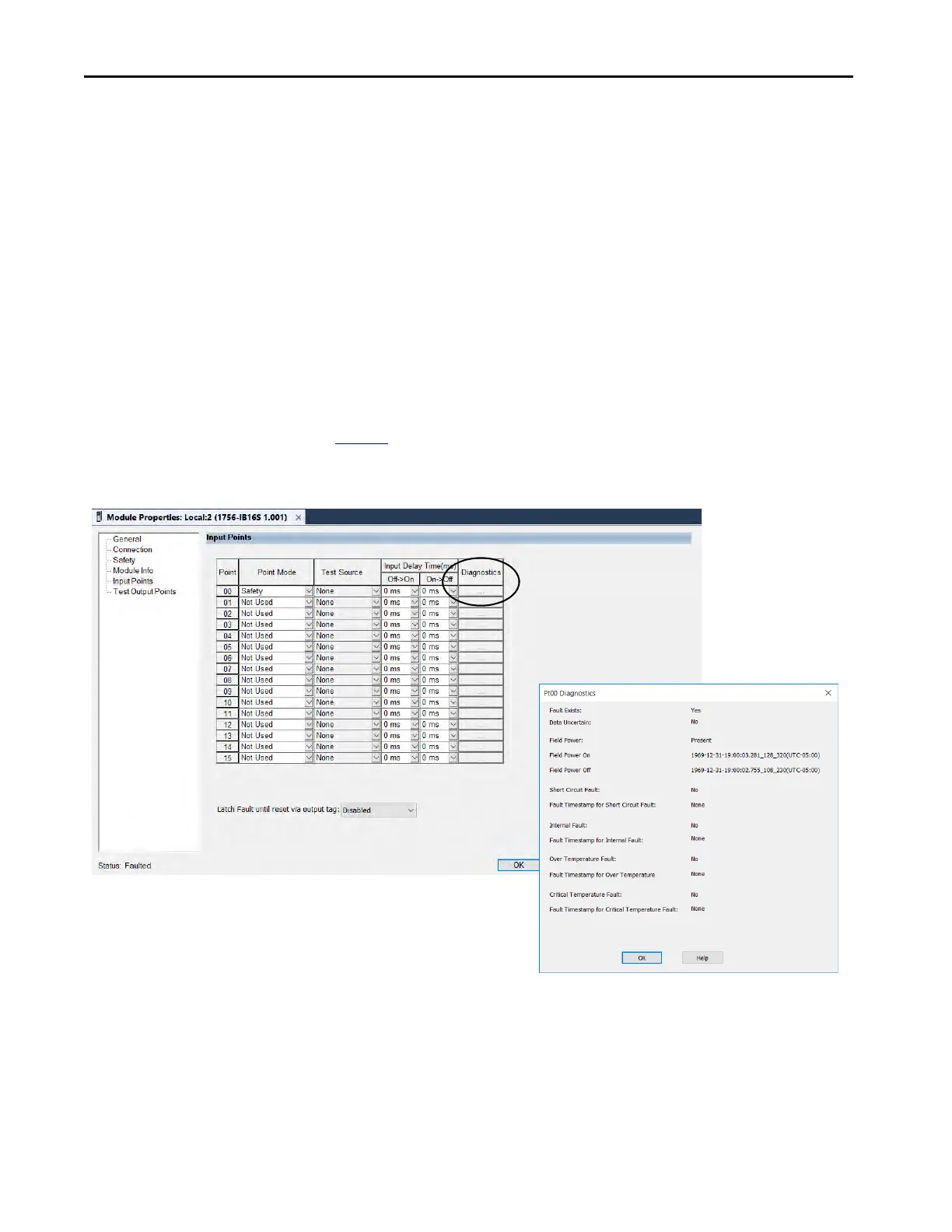

Figure 6
shows how to access output point diagnostics on the 1756-IB16S
module and the diagnostics dialog box.
Figure 6 - Point Diagnostics
