MOP 2-115
Direction Mask
This “masks out” the reverse function from all adapters except Adapter 2,
making the local HIM (Adapter 1) REV button inoperable. Also see
Owners
on page 2-127.
MOP The Motor Operated Pot (MOP) function is one of the sources for the
frequency reference. The MOP function uses digital inputs to increment or
decrement the Speed reference at a programmed rate.
The MOP has three components:
• [MOP Rate] parameter
• [Save MOP Ref] parameter
• [MOP Frequency] parameter
MOP increment input
MOP decrement input

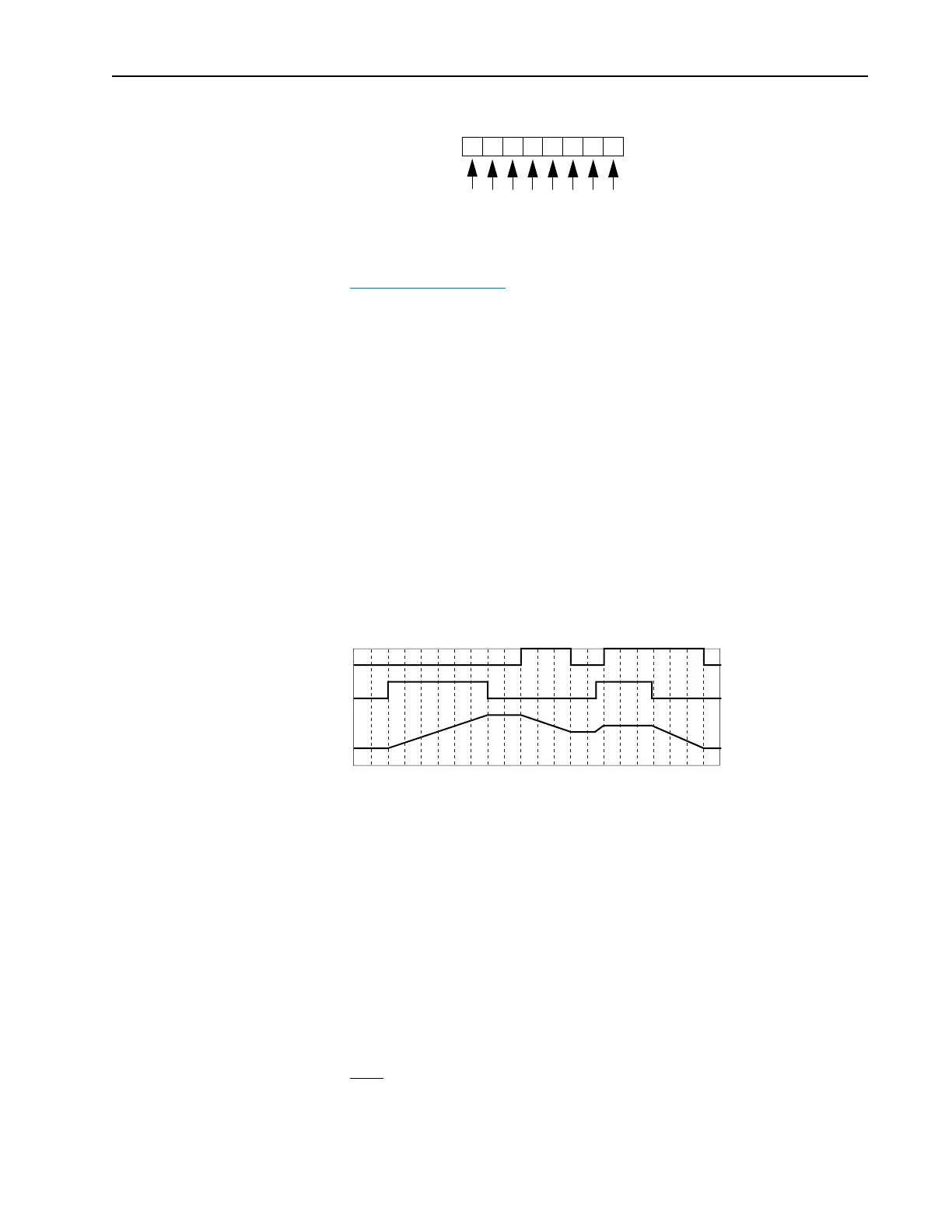

The MOP reference rate is defined in [MOP rate]. The MOP function is
defined graphically below
MOP rate is defined in Hz/sec. The MOP reference will increase/decrease
linearly at that rate as long as the MOP inc or dec is asserted via TB or DPI
port (the MOP inputs are treated as level sensitive).
Both the MOP inc and dec will use the same rate (i.e. they can not be
separately configured). The MOP rate is the rate of change of the MOP
reference. The selected active MOP reference still feeds the ramp function
to arrive at the present commanded speed/frequency (eg. is still based on the
accel/decel rates). Asserting both MOP inc and dec inputs simultaneously
will result in no change to the MOP reference.
[Save MOP Ref] is a packed boolean parameter with two bits used as
follows:
Bit 0
0 = Don’t save MOP reference on power-down (default)
1 = Save MOP reference on power-down
00000100
Adapter # X6543210
MOP dec
MOP inc
MOP reference
