PowerFlex 70 Dimensions 1-7
PowerFlex 70
Dimensions
Table 1.A PowerFlex 70 Frames

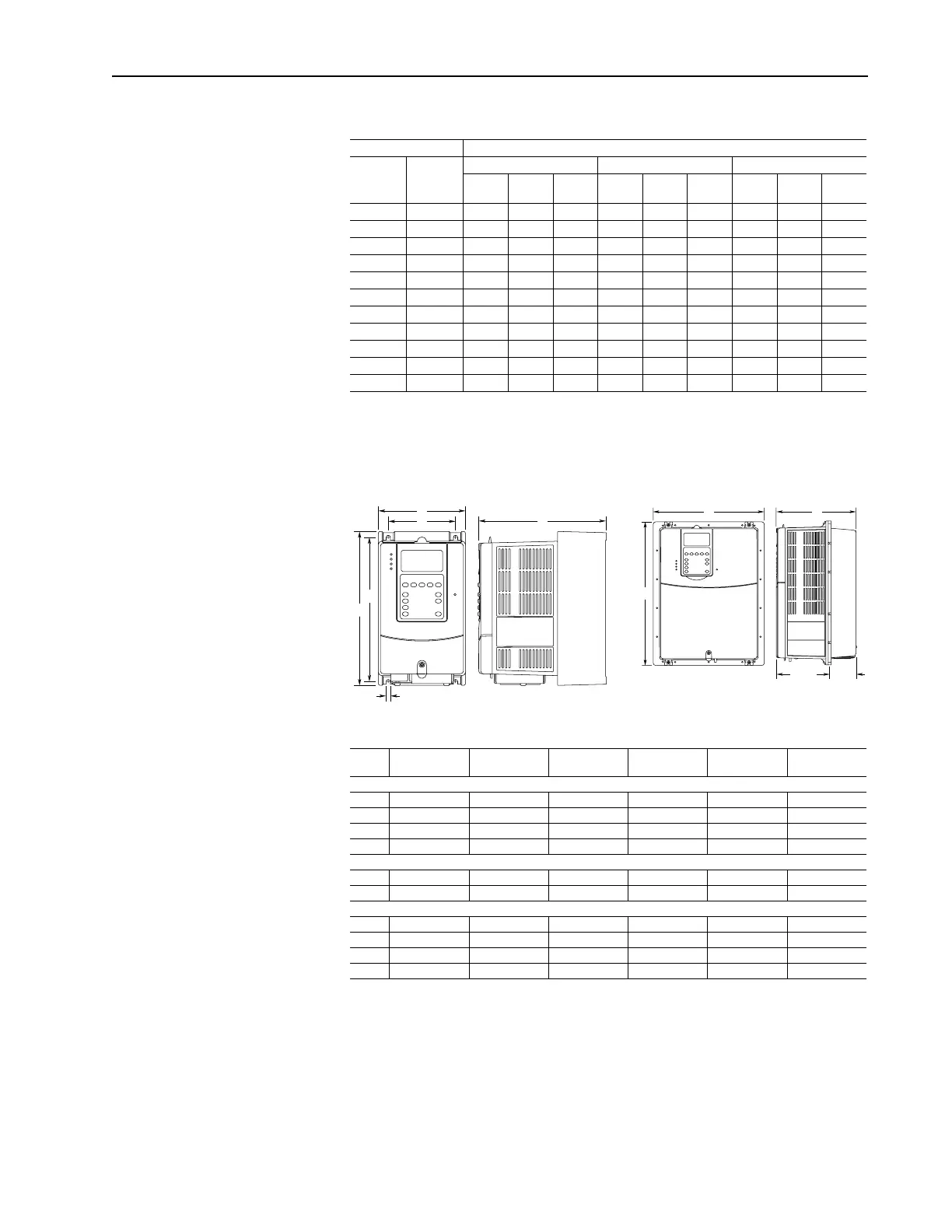

Figure 1.1 PowerFlex 70 Frames A-D
Dimensions are in millimeters and (inches).
Output Power Frame Size
kW
ND (HD)
HP
ND (HD)
208-240V AC Input 400-480V AC Input 600V AC Input
Not
Filtered Filtered
IP66
(4X/12)
Not
Filtered Filtered
IP66
(4X/12)
Not
Filtered Filtered
IP66
(4X/12)
0.37 (0.25) 0.5 (0.33) A B B A B B A – B
0.75 (0.55) 1 (0.75) A B B A B B A – B
1.5 (1.1) 2 (1.5) B B B A B B A – B
2.2 (1.5)3 (2)BBBBBBB– B
4 (3) 5 (3) – C D B B B B – B
5.5 (4) 7.5 (5) – D D – C D C – D
7.5 (5.5) 10 (7.5) – D D – C D C – D
11 (7.5) 15 (10) – – – – D D D – D
15 (11) 20 (15) – – – – D D D – D
18.5 (15) 25 (20) – – – – D D – – –
22 (18.5) 30 (25) – – – – D D – – –
FrameABCDE
Weight
(1)
kg (lbs.)
(1)
Weights include HIM and Standard I/O.
IP20 / NEMA Type 1
A 122.4 (4.82) 225.7 (8.89) 179.8 (7.08) 94.2 (3.71) 211.6 (8.33) 2.71 (6.0)
B 171.7 (6.76) 234.6 (9.24) 179.8 (7.08) 122.7 (4.83) 220.2 (8.67) 3.60 (7.9)
C 185.0 (7.28) 300.0 (11.81) 179.8 (7.08) 137.6 (5.42) 285.6 (11.25) 6.89 (15.2)
D 219.9 (8.66) 350.0 (13.78) 179.8 (7.08) 169.0 (6.65) 335.6 (13.21) 9.25 (20.4)
IP66 / NEMA Type 4X/12
B 171.7 (6.76) 239.8 (9.44) 203.3 (8.00) 122.7 (4.83) 220.2 (8.67) 3.61 (8.0)
D 219.9 (8.66) 350.0 (13.78) 210.7 (8.29) 169.0 (6.65) 335.6 (13.21) 9.13 (20.1)
Flange Mount
A 156.0 (6.14) 225.8 (8.89) 178.6 (7.03) – – 2.71 (6.0)
B 205.2 (8.08) 234.6 (9.24) 178.6 (7.03) – – 3.60 (7.9)
C 219.0 (8.62) 300.0 (11.81) 178.6 (7.03) – – 6.89 (15.2)
D 248.4 (9.78) 350.0 (13.78) 178.6 (7.03) – – 9.25 (20.4)
A
E
B
D
5.8
(0.23)
C
B
A
C
123.0
(4.84)
55.6
(2.19)
IP20/66 (NEMA Type 1/4X/12) Flange Mount
