36 Rockwell Automation Publication 20A-IN009E-EN-P - January 2015
PowerFlex 70 Adjustable Frequency AC Drive

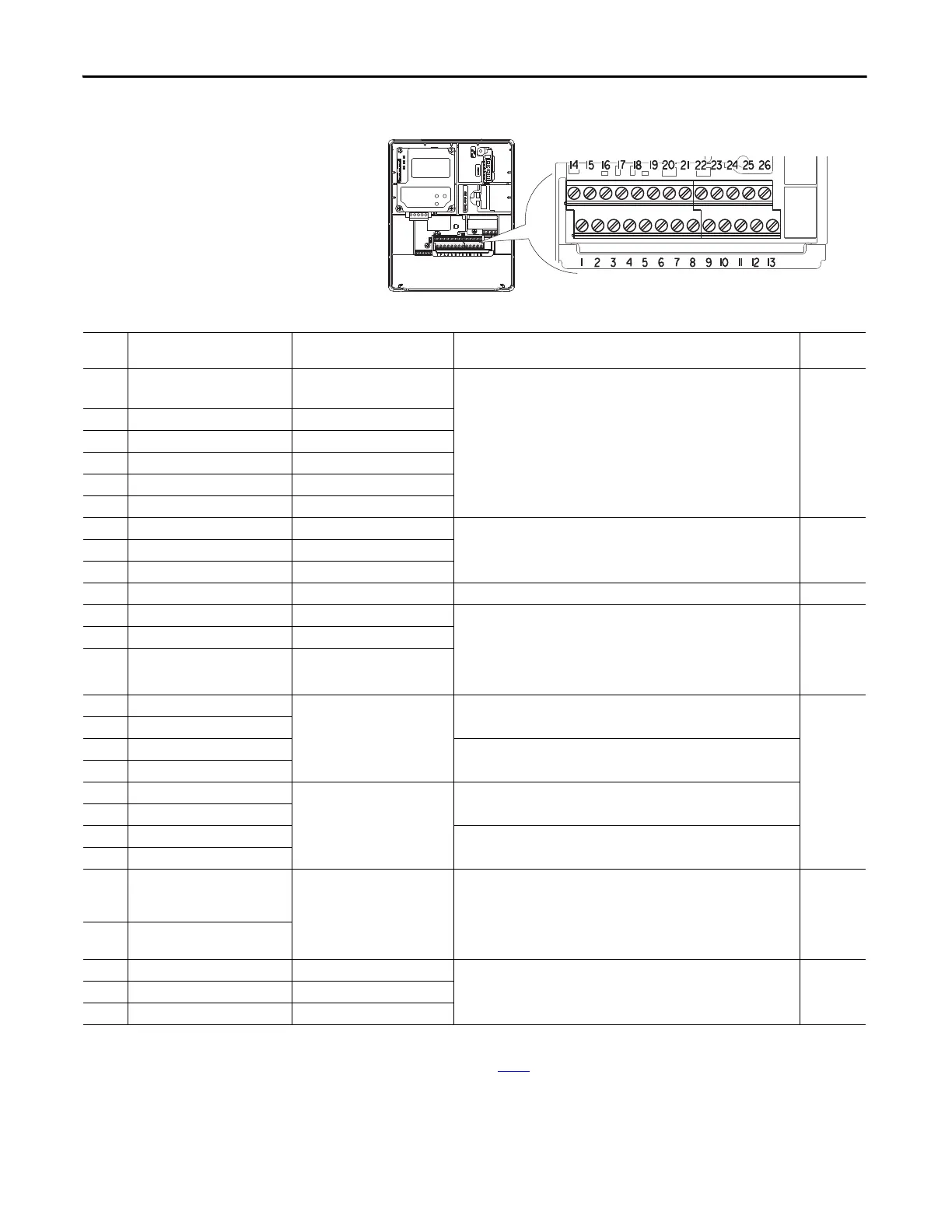

I/O Terminal Positions
Table 17 - I/O Terminal Designations – Standard and Enhanced Control
No. Signal Factory Default Description
Related
Parameters
1 Digital In 1 Stop – CF
(CF = Clear Fault)
11.2 mA at 24V DC
19.2V minimum on state
3.2V maximum off state
Important: Use only 24V DC, not suitable for 115V AC circuitry.
Inputs can be wired as sink or source.
Important: Digital inputs are not designed to work with a pulsed source.
361…366
2 Digital In 2 Start
3 Digital In 3 Auto/Man
4 Digital In 4 Speed Sel 1
5 Digital In 5 Speed Sel 2
6 Digital In 6 Speed Sel 3
7 24V Common – Drive supplied power for Digital In1…6 inputs.
Not intended for use on circuits outside of the drive.
150 mA maximum load.
–
8 Digital In Common –
9 +24V DC –
10 +10V DC Pot Reference – 2 k ohm minimum load. –
11 Digital Out 1 – N.O.
(1)
NOT Fault Max resistive load
250V AC / 30V DC
50VA / 60 W
Min DC load
10 μA, 10 mV DC
Max inductive load
250V AC / 30V DC
25 VA / 30 W
380…387
12 Digital Out 1 Common
13 Digital Out 1 – N.C.
(1)
Fault
14 Analog In 1 (– Volts)
(2)
TB Man Ref
Voltage – Reads value at 14 & 15
Non-isolated, 0…+10V, 10 bit, 100k ohm input impedance.
(3)
320…327
15 Analog In 1 (+ Volts)
16 Analog In 1 (– Current) Non-isolated, 0…20 mA, 10 bit, 100 ohm input impedance.
(3)
17 Analog In 1 (+ Current)
18 Analog In 2 (– Volts)
(2)
Speed Ref A
Voltage – Reads value at 18 & 19
Isolated, bipolar, differential, 0…+10V unipolar (10 bit) or ±10V bipolar
(10 bit and sign), 100k ohm input impedance.
(4)
19 Analog In 2 (+ Volts)
20 Analog In 2 (– Current) Isolated, 0…20 mA, 10 bit and sign, 100 ohm input impedance.
(4)
21 Analog In 2 (+ Current)
22 10V Pot Common
Analog Out (– Volts)
Analog Out (– Current)
(2)
Output Freq
0…+10V, 10 bit, 10k ohm (2k ohm minimum) load.
0…20 mA, 10 bit, 400 ohm maximum load.
(5)
Referenced to chassis ground.
Common if internal 10V supply (terminal 10) is used.
340…344
23 Analog Out (+ Volts)
Analog Out (+ Current)
24 Digital Out 2 – N.O.
(1)
Run See description at No.s 11…13. 380…387
25 Digital Out 2 Common
26 Digital Out 2 – N.C.
(1)
NOT Run
(1) Contacts shown in unpowered state. Any relay that is programmed as fault or alarm energizes (pick up) when power is applied to drive and deenergizes (drop out) when fault or alarm exists. Relays
selected for other functions energize when the condition exists, and deenergize when the condition is removed.
(2) These inputs/outputs are dependent on a number of parameters. See the Related Parameters column in Tab le 1 7
.
(3) Differential isolation - external source must be less than 10V with respect to PE.
(4) Differential isolation - external source must be maintained at less than 160V with respect to PE. Input provides high common mode immunity.
(5) Analog output current is available only with enhanced control drives.
