Allen-Bradley Stratix 6000 User Manual

Rockwell Automation Publication 1783-UM001B-EN-P - May 2010 53
Appendix C
Factory Reset
What This Appendix
Contains
This appendix provides information about how to accomplish a factory reset,
setting the 1783-EMS switch to the factory default settings. You have two levels
of reset as described in this appendix. To complete the reset, you need a:
• small screwdriver.
• means to turn off the power to the switch.
Access the Reset Button
Complete the reset by using a small button located on the back of the switch.
To access the button, carefully remove the plastic DIN-rail clip by gently lifting
the tab in the center with a screwdriver and sliding the clip upward.
The button is located inside the left slot, opened by the removal of the plastic
DIN-rail clip.

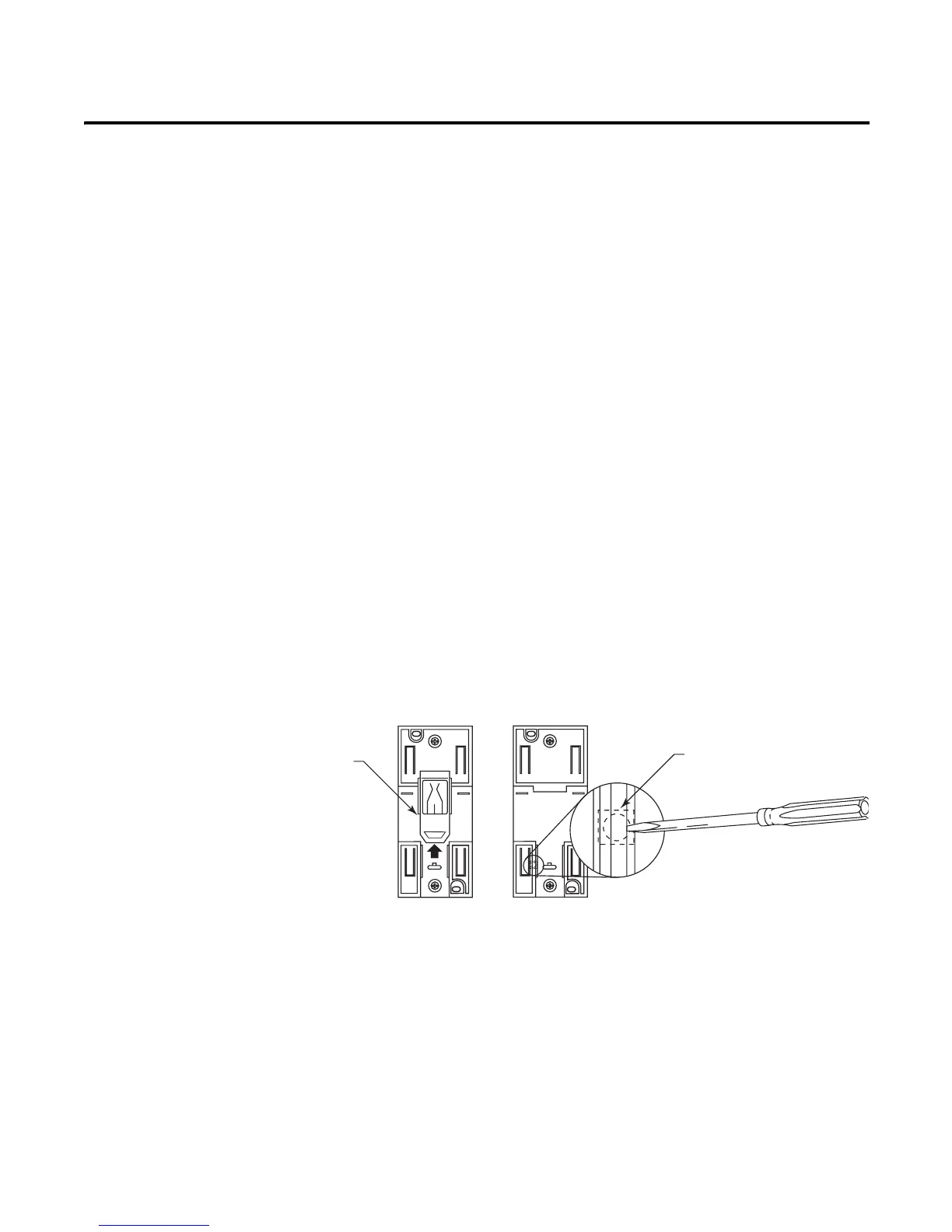

The figure on the left shows the DIN rail clip that you remove to access the reset
button. The figure on the right shows placement of the screwdriver on the reset
button located inside the slot.
Figure 1 - Reset Button
