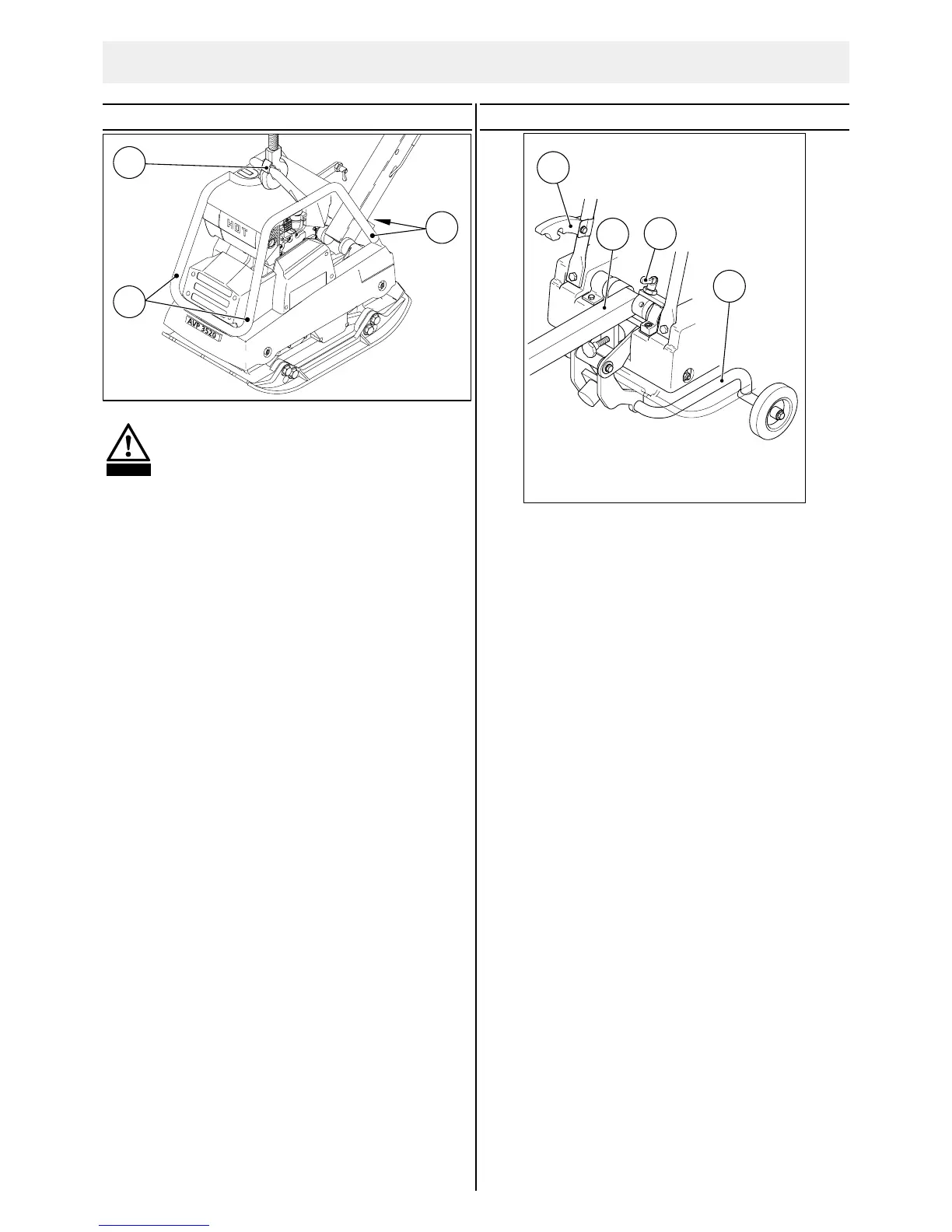

4.1 Loading and transportation
After loading the machine should be
–
lashed in place;
–
lock the tow-bar.
Use the centre-of-gravity suspension point (1) in order to lift the
machine.
4.2 Transport truck*
The transport truck can be used for easy transportation of the
machine over short distances.
–
Place the tow-bar (1) in vertical position.
–
Detach chassis (2) from mount (3) and place on the ground.
–
Place and clamp (4) the tow-bar in position horizontal.
–
With the locked tow-bar (4), tilt the machine on to the front
edge; the chassis moves under the plate.
–
Tilt the machine back with the tow-bar until the machine is
located horizontally on the chassis. The device is ready to
use.
–
After transport, re-attach the chassis in reverse order.
*Special equipment
4. Transport
AVP 3520
1
2
2
B3299019.cdr
3
4
2
1
Danger
Only use sufficiently strong and secure loading
ramps when loading.
Check the contact points (frame, lifting rings)
before use for damage and wear. Immediately
replace damaged parts.
Secure the machine against rolling or slipping off
and against tipping over.
Ensure that no persons will be endangered.
When loading, lashing down and lifting the
machine always use the provided lifting points.
Persons are in danger, if they
• go near swinging loads or
• stand under swinging loads
After loading lock the tow bar.
