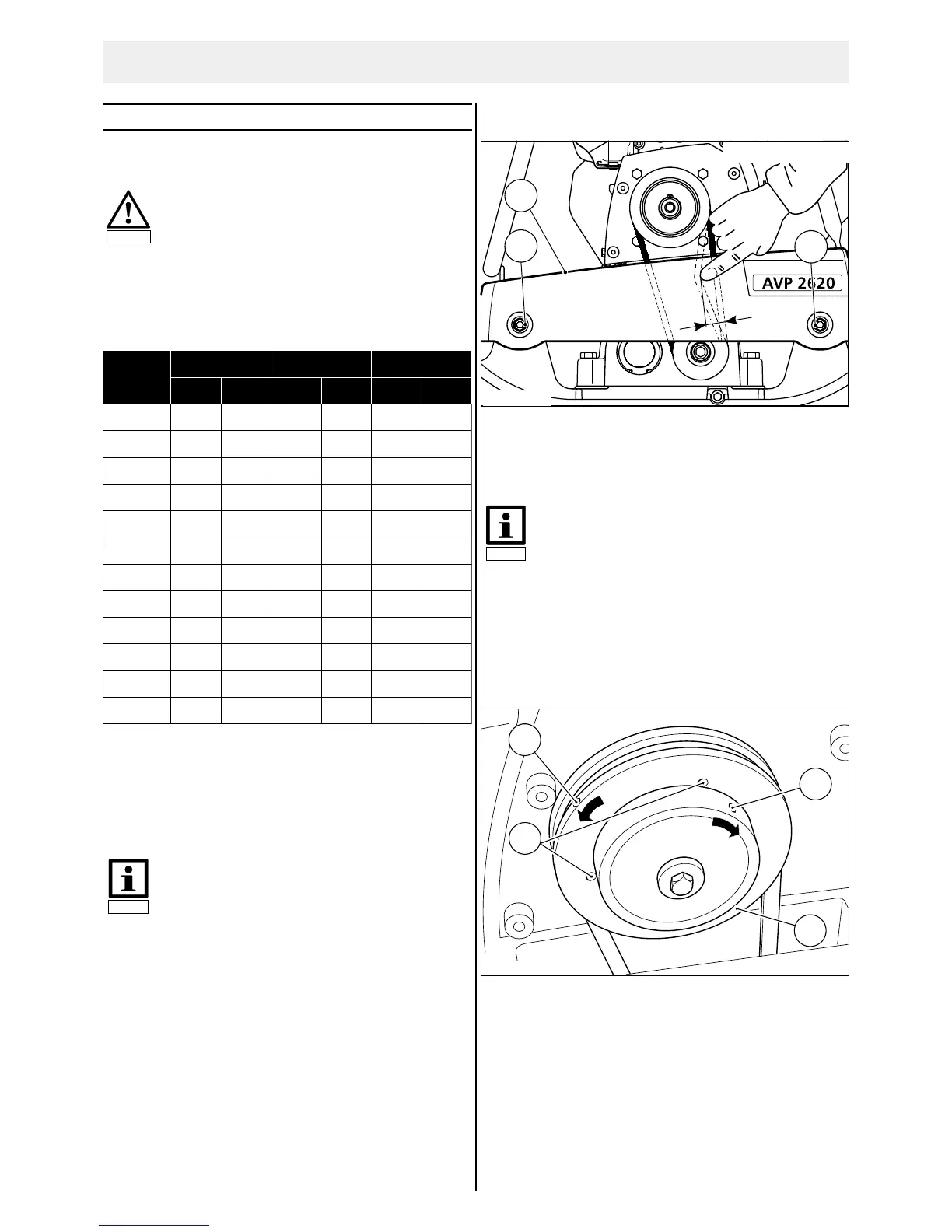

5.7 Maintenance work on the machine
5.7.1 Cleaning
Clean the machine thoroughly daily.
5.7.2 Torque information
The tightness categories relate to bolts with untreatet,
unlibricated surface.
The figures result in 90% exploitation of the limit of elasticity for a
friction coefficient µ
ges
=0.14.
Use a torque wrench to check that the tightening torques are
observed.
The figures indicated do not apply if lubricant MoS2 is used.
5.7.3 Screw connections
With vibration equipment, it is important to check the screwed
connections periodically to ensure that they are screwed tight.
Observe tightening torques.
5.7.4 Checking rubber buffer
Check the rubber buffer for cracks and fractures and for a tight fit;
replace immediately if damaged.
5.7.5 AVP 2220 / 2620: Checking V-belt
–
Remove V-belt guard.
–
Check V-belt for tension and condition.
–
Unscrew the nuts (1) of the rubber stops on the outside.
–
Push the upper tray (2) upwards on both sides.
–
Both buffers should be equally pre-tensioned.
–
Tighten nuts (1).
–
Crank the drive manually and re-check tension and correct if
necessary.
–
Replace V-belt guard.
AVP 3020 / 3520: Tensioning vee-belt
–
Remove vee-belt guard.
–
Loosen set screws (1), do not unscrew.
–
Insert auxiliary tools (ø 6 mm) into bores (2) and (3).
–
Tension vee-belt by turning clutch halves (2) and (3) in
opposite directions.
–
Tension clutch halves (2) and (3). X=10 mm.
5. Maintenance
M4
M5
M6
M8
M10
M12
M14
M16
M18
M20
M22
M24
32
6
10
25
49
85
135
210
300
425
580
730
4
7
18
36
62
99
154
221
313
427
538
4,4
8,7
15
36
72
125
200
310
430
610
830
1050
3
6
11
26
53
92
147
228
317
449
612
774
5
10
18
43
84
145
235
365
500
710
970
1220
4
7
13
31
61
106
173
269
368
523
715
899
8.8
Nm
ø
Nm Nmft lb ft lb ft lb
10.9 12.9
Attention
After cleaning, check all cables, hoses, pipes and
screwed fittings for leaks, loose connections,
chafe marks and other damage.
Any faults which are detected should be rectified
immediately.
Do not use any flammable or aggressive
substances for cleaning purposes.
Important
Self tighted nuts have to be replaced after every
disassambly.
X=10 mm
1
1
2
B3299009.cdr
AVP 2220 / 2620
Important
It is important to ensure that the frame is also actually
pushed on the rubber stop contact surfaces and not
just the rubber elements are stretched and then spring
back again. If necessary apply light blows with a
hammer to knock the rubber stops downwards.
41
B3299051.cdr
AVP 3020 / 3520
1
2
1
3
