4 NAC power supply
The AUTOPULSE Z-20 uses a conventional reverse polarity NAC power supply. It provides 6 A and can support non-addressable
conventional notification devices and addressable initiating devices. See Figure 12 and Table 4 for the main components of the NAC power
supply.

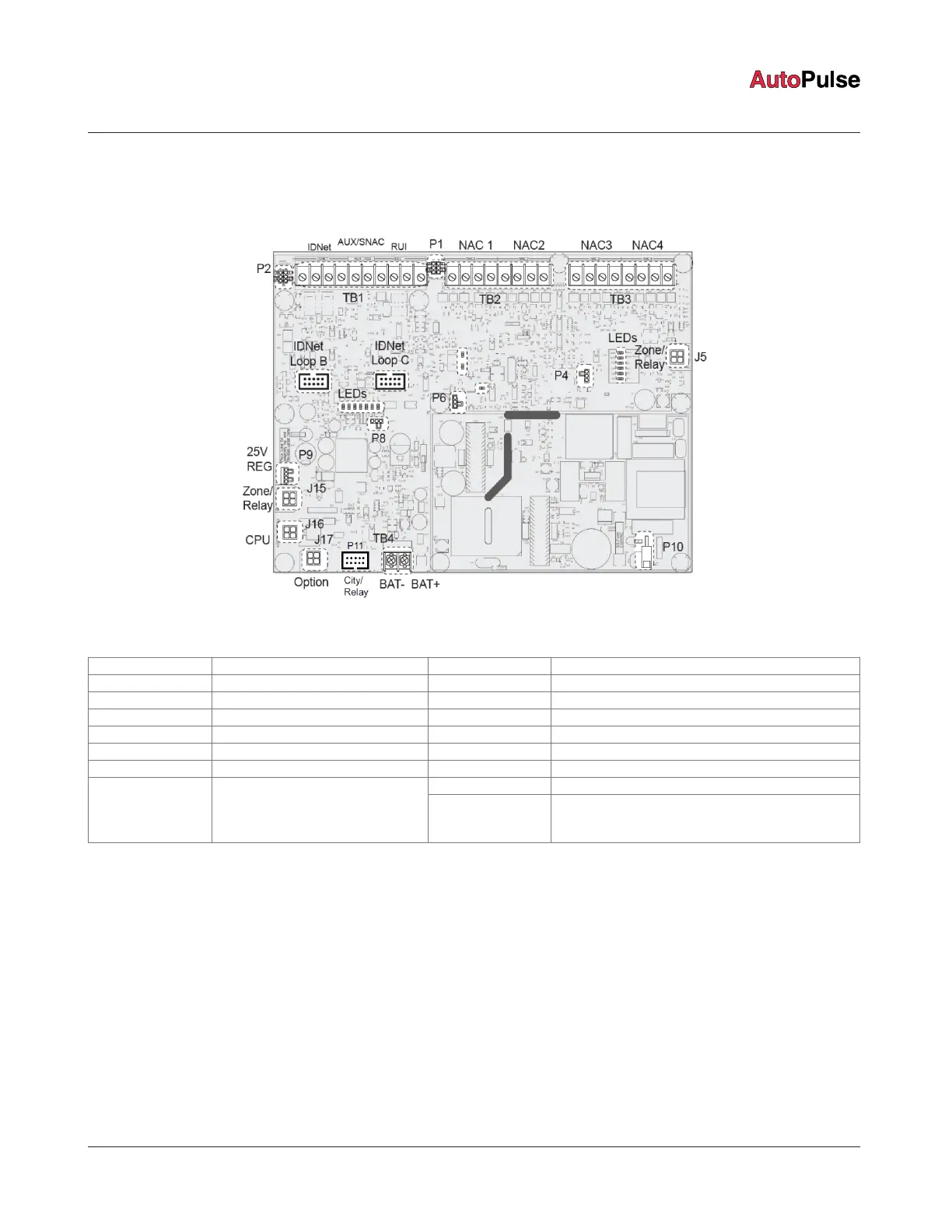

Figure 12: NAC power supply
Table 4: Main components information
P1 RUI Class A/B jumpers P2 IDNet Class A/B jumper
TB4 Battery connection TB2 NAC 1 and NAC 2
P10 AC Power Connection TB3 NAC 3 and NAC 4
J5 and J15 Zone / Relay J7 IDNet Loop B
J16 CPU Connection J8 IDNet Loop C
J17 Option Connection P4 NAC Power Supply Card On-line
P11 City/Relay Connection P6 Battery Depleted Jumper
P8 1-2 (default) / IDNet card on lineTB1 IDNet Loop 1, Aux Power, RUI
Connection
P9 25 V Regulator Jumpers 1-2, 3-4 default. Power is fed
to the zone/ relay card. No jumpers. Using 4007-9802,
25 V Regulator Module.
