MAIN INDEPENDENT CONTROLS

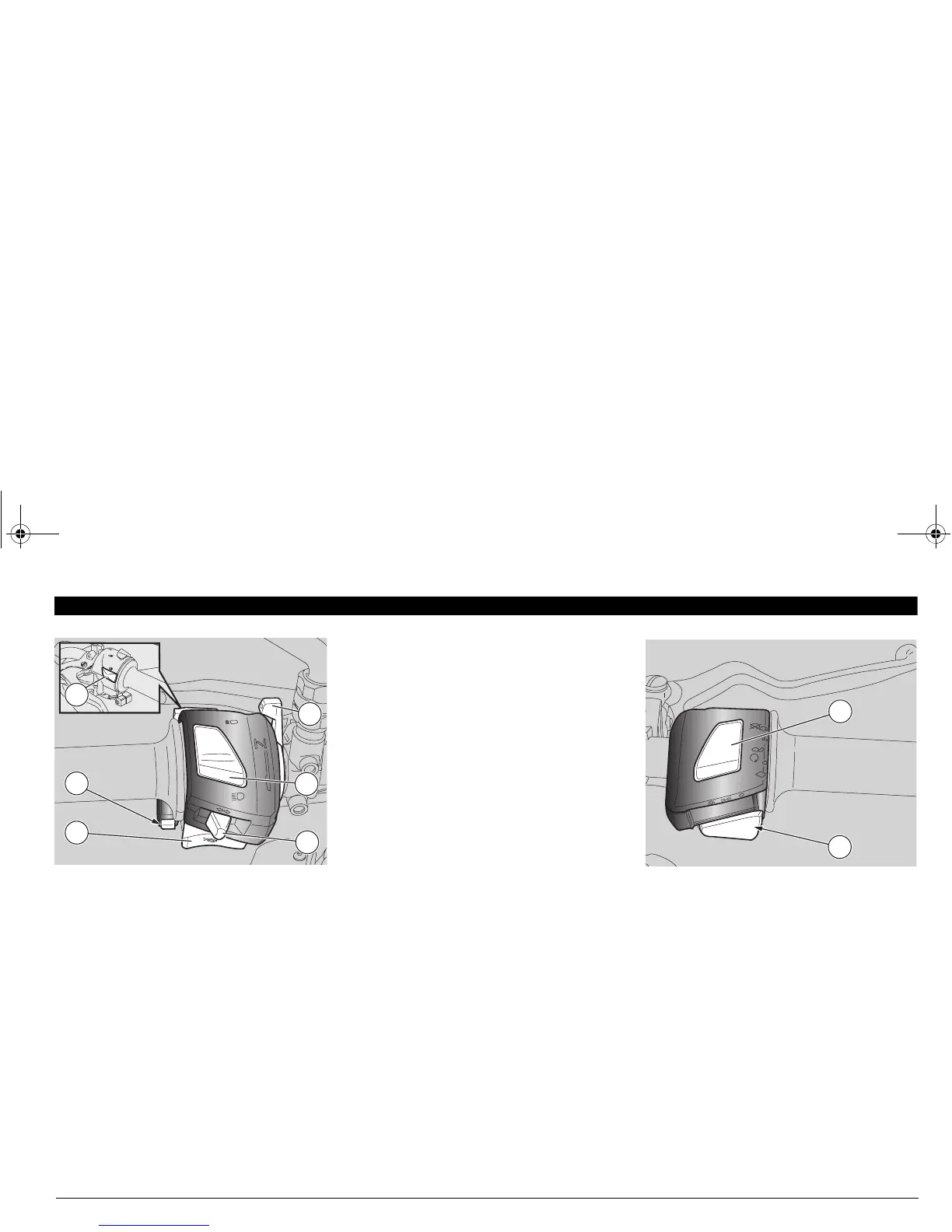

CONTROLS ON THE LEFT PART
OF THE HANDLEBAR
The electrical parts work only
when the ignition switch is in
position "
".
1) HORN PUSH BUTTON (
)
The horn is activated when the push
button is pressed.
2) DIRECTION INDICATOR SWITCH
( ( )
To indicate the turn to the left, move the
switch to the left; to indicate the turn to
the right, move the switch to the right.
To turn off the direction indicator, press
the switch.
3) DIMMER SWITCH ( - )
When it is in position “” the parking
lights, the dashboard light and the low
beam are always on.
When it is in position “ ”, the high
beam comes on.
4) MODE BUTTON
Allows you to use the multifunction
computer.
For the setting of the functions,
see page 16 (MULTIFUNCTION
COMPUTER).
5) COLD START LEVER (
)
The starter for the cold start of the
engine is operated by rotating the lever
"" downwards.
To disconnect the starter, move the
lever "" to its initial position.
6) HIGH BEAM SIGNALLING PUSH
BUTTON ()
It makes it possible to use the high
beam for signalling to forthcoming
vehicles while overtaking and in case of
peril and/or emergency.
CONTROLS ON THE RIGHT PART
OF THE HANDLEBAR
The electrical parts work only
when the ignition switch is in
position "".
7) ENGINE STOP SWITCH (
- )
Do not operate the engine
stop switch “
- ” in
running conditions.
This is a safety or emergency switch.
With the switch in position "", it is
possible to start the engine; the engine
can be stopped by moving the switch to
position "".
With stopped engine and
ignition switch in position
" ", the battery may
discharge.
When the vehicle has come to rest,
after stopping the engine, move the
ignition switch to position "".
8) START PUSH BUTTON (
)
When the start push button "" is
pressed, the starter makes the engine
run. For the starting, see page 36
(STARTING).
