47
use and maintenance RS 125

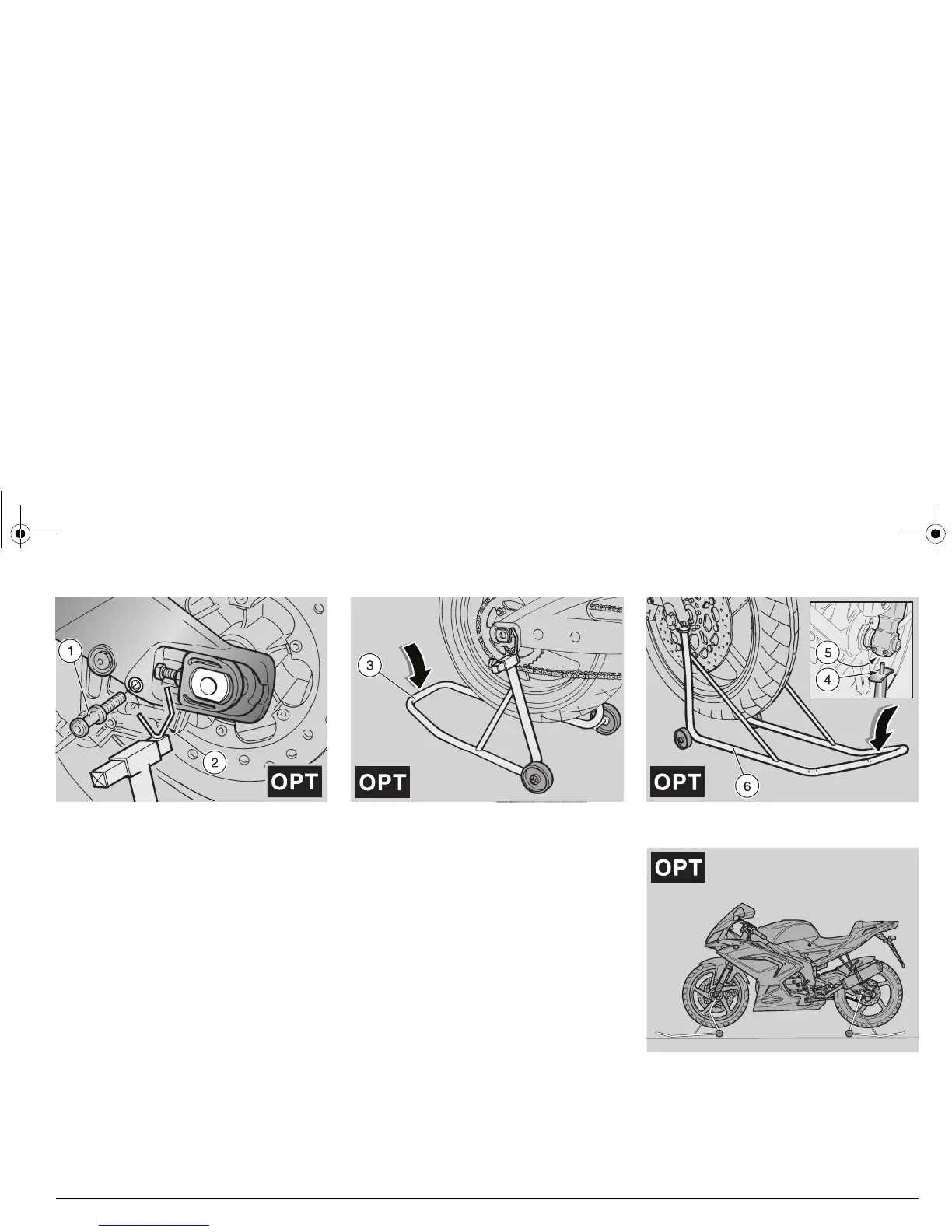

POSITIONING THE VEHICLE ON
THE REAR SUPPORT STAND J
u
H
Screw and tighten the pin (1) - in the
appropriate seat on the rear fork.
Have someone help you keep
the vehicle in vertical position
with the two wheels on the ground.
u
Make the two housings on the stand (2)
coincide with the two pins (1) provided
on the vehicle.
u
Rest one foot on the rear part of the
stand (3).
u
Push the stand (3) downwards until it
reaches the end of its stroke (see figure).
POSITIONING THE VEHICLE ON
THE FRONT SUPPORT STAND J
u
Position the vehicle on the appropriate
rear support stand
-, see beside
(POSITIONING THE VEHICLE ON THE
REAR SUPPORT STAND J).
u
Insert the two ends of the stand (4) in the
two holes (5) positioned on the lower
ends of the front fork.
u
Rest one foot on the front part of the
stand (6).
u
Push the stand (6) downwards until it
reaches the end of its stroke (see figure).
RS_125_UK.book Page 47 Tuesday, June 13, 2006 1:34 PM
