APRILIA RSV4 FACTORY Use And Maintenance Manual

02_41

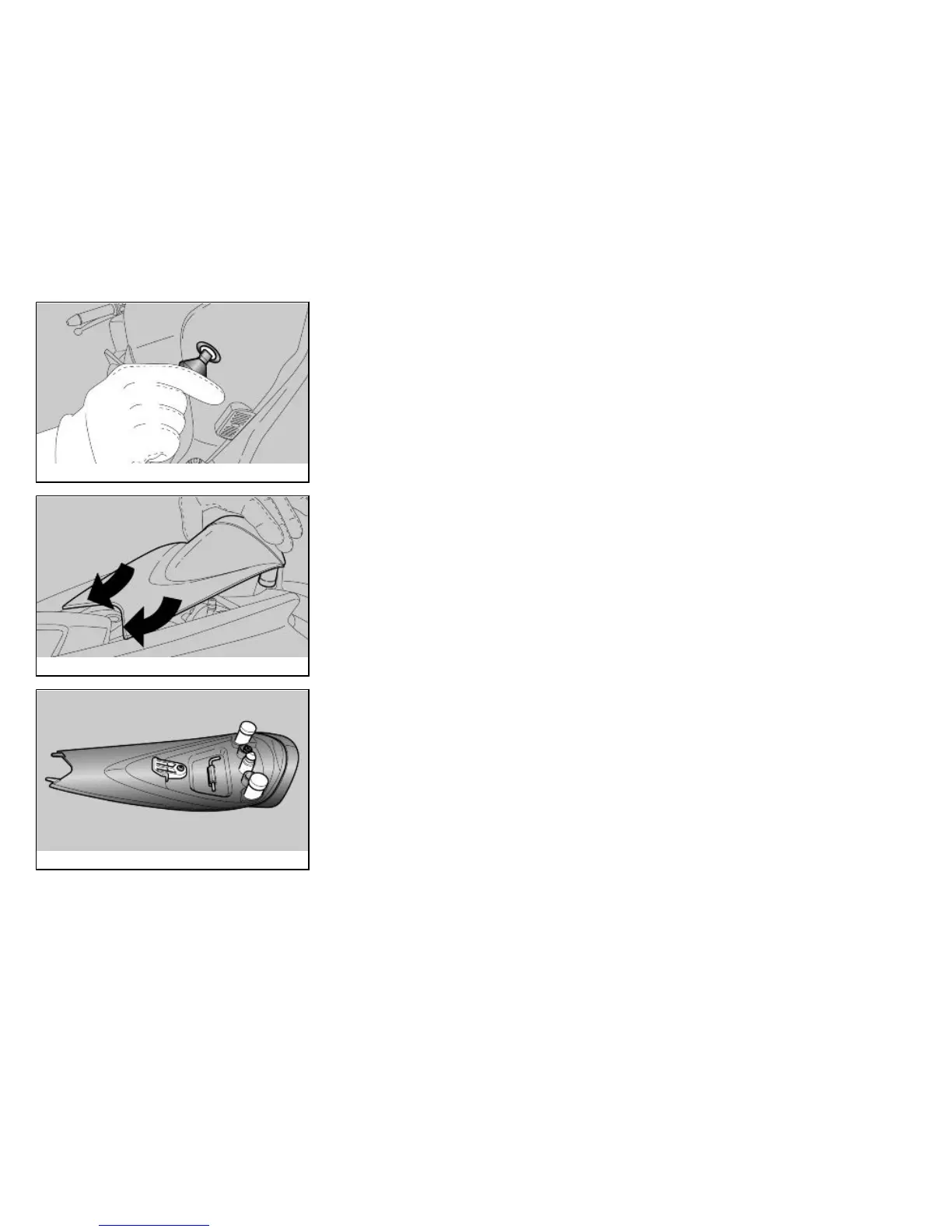

Opening the saddle (02_41,
02_42, 02_43, 02_44, 02_45)
PASSENGER SADDLE / TAIL REMOV-
AL
•
Turn the key clockwise.
Ouverture de la selle (02_41,
02_42, 02_43, 02_44, 02_45)
RETRAIT DE LA BAVETTE ARRIÈRE /
SELLE DU PASSAGER
•
Tourner la clé dans le sens des
aiguilles d'une montre.
02_42
•
Lift up and remove the passen-
ger saddle / tail.
•
Relever et extraire la bavette ar-
rière / selle du passager
02_43
RIDER'S SADDLE REMOVAL
•
Using the hex wrench located
under the passenger saddle /
tail, unscrew and remove the
two saddle fixing screws and re-
move it from the vehicle.
DÉPOSE DE LA SELLE DU CONDUC-
TEUR
•
A l'aide de la clé à six pans, lo-
gée sous la bavette arrière / sel-
le du passager, dévisser et en-
lever les deux vis de fixation de
la selle et l'extraire du véhicule.
89
2 Vehicle / 2 Vehicule

APRILIA RSV4 FACTORY Specifications

General

Displacement	1099 cc
Power	217 HP
Transmission	6-speed
Power RPM	13, 000 rpm
Torque RPM	10, 500 rpm
Seat Height	845 mm
Torque	125 Nm
Front Suspension	Öhlins NIX, 43 mm fully adjustable fork
Rear Suspension	Öhlins TTX36 shock absorber
Front Brakes	Dual 330 mm discs with Brembo Stylema calipers
Rear Brakes	220 mm disc with Brembo caliper
Fuel Capacity	17.9 liters
Fuel System	Electronic fuel injection
ABS	Yes
Frame	Aluminum dual beam
Engine Type	Aprilia longitudinal 65° V4, 4-stroke, liquid-cooled, double overhead camshafts (DOHC), four valves per cylinder
