ADJUSTING THE VERTICAL
HEADLIGHT BEAM
NOTE To check the direction of the head-
light beam, specific procedures must be
adopted, in accordance with the regulations
in force in the country where the vehicle is
used.
Italian standard:

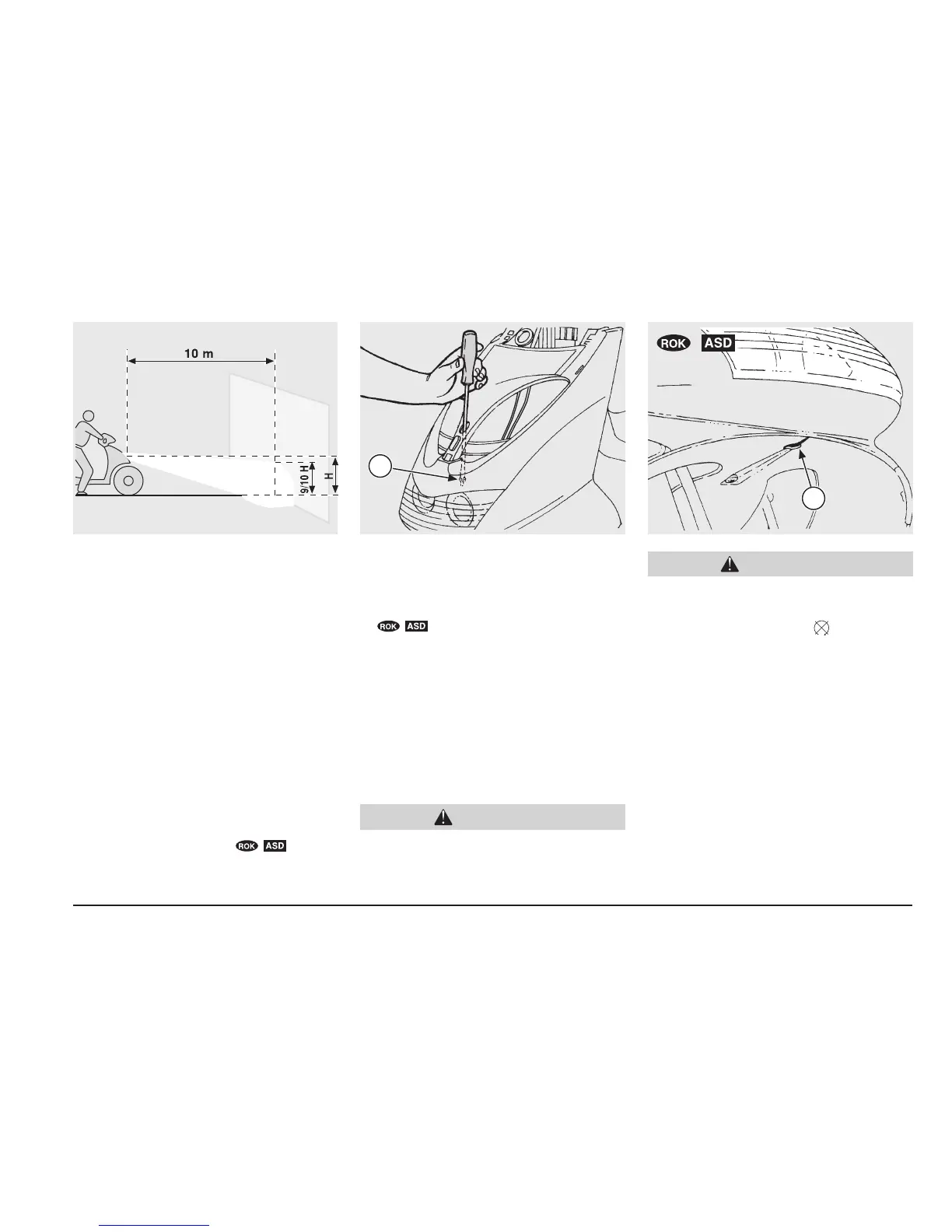

To rapidly check the correct direction of the
beam, place the vehicle on flat ground, 10 m
away from a wall.
Turn on the low beam, sit on the vehicle and
make sure that the beam projected on the
wall is slightly under the horizontal line of the
headlight (about 9/10th of the total height).
NOTE For the versions it is not
necessary to remove the front cover.
◆ Remove the front cover, see p. 49 (RE-
MOVING THE FRONT COVER).
◆ Act on the suitable screw (1) by means of
a screwdriver.
◆
Act on the suitable screw (2) by
means of a screwdriver.
By TURNING IT CLOCKWISE, you set the
beam upwards.
By TURNING IT ANTICLOCKWISE, you
set the beam downwards.
BULBS
Carefully read p. 39 (MAINTENANCE).
Risk of fire.
Keep fuel and other flammable sub-
stances away from the electrical compo-
nents.
Before changing a bulb, position the ve-
hicle on the centre stand, move the igni-
tion switch to position “
” and wait a
few minutes, so that the bulb cools down.
Change the bulb wearing clean gloves or
using a clean and dry cloth.
Do not leave fingerprints on the bulb,
since these may cause its overheating
and consequent breakage.
If you touch the bulb with bare hands,
remove any fingerprint with alcohol, in
order to avoid any damage.
DO NOT FORCE THE ELECTRIC CABLES.
WARNING
1
3
CAUTION
