68
use and maintenance SR 50
NOTE Insert the bulb in the bulb socket,
making the two bulb pins coincide with the
relevant guides on the socket.
◆ Correctly install a new bulb of the same
type.
NOTE If the bulb socket (9) goes out of its
seat, insert it correctly, making the bulb
socket opening coincide with the screw seat.

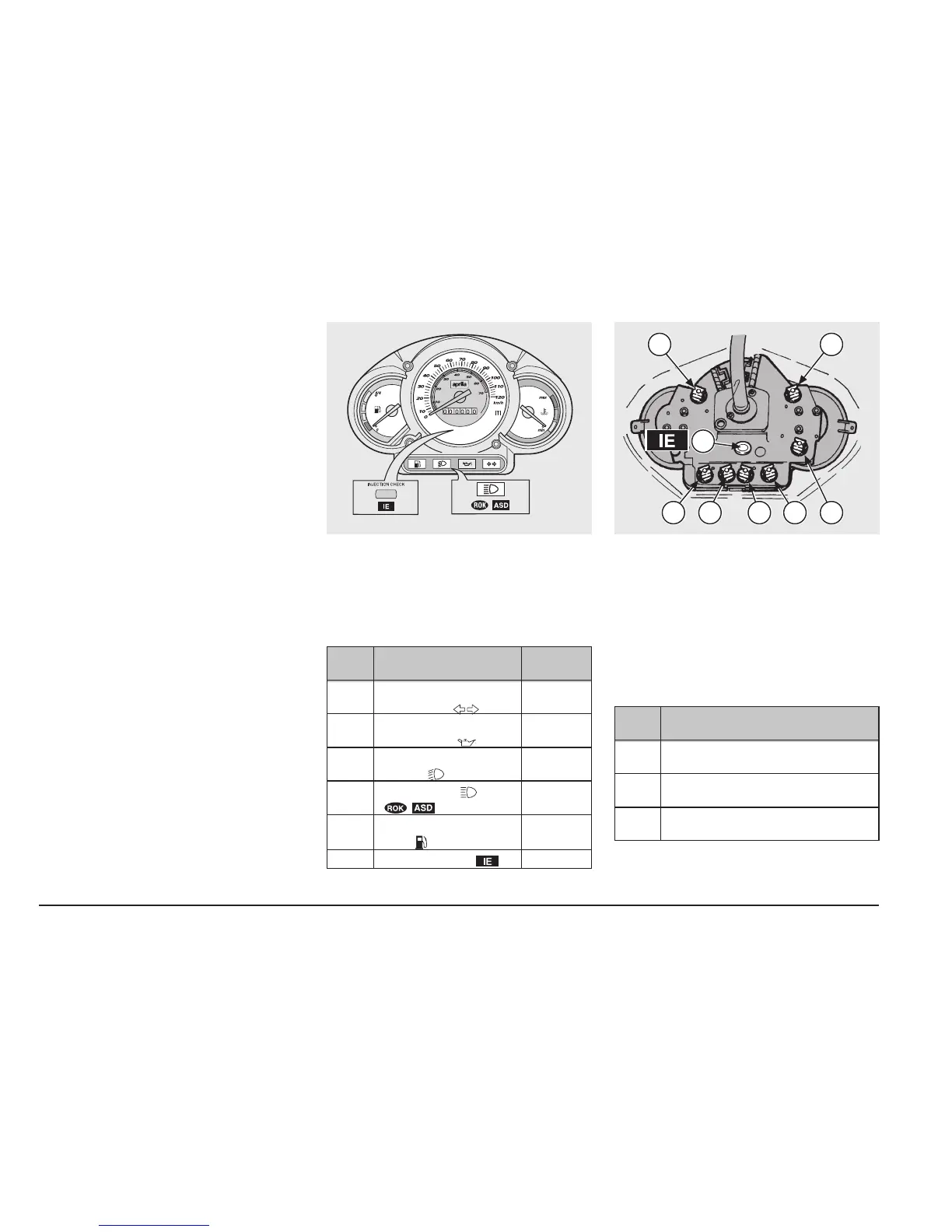

CHANGING
THE DASHBOARD BULBS
Carefully read p. 65 (BULBS).
NOTE Before changing a bulb, check the
fuses, see p. 64 (CHANGING THE FUSES).
The dashboard contains:
– the warning light bulbs;
– the dashboard lighting bulbs.
To change the bulbs:
Carefully read p. 65 (BULBS).
WARNING LIGHT BULBS
NOTE Extract the bulb sockets one by one,
in such a way as to avoid positioning them
incorrectly during the reassembly.
◆ Extract the relative bulb socket:
◆ Extract the bulb and replace it with one of
the same type.
Pos. Lit part
15 Upper right part
16 Upper left part
17 Lower right part
Pos. Warning light Colour
10
11
12
12
13
14
Direction
indicators (
)
2 stroke
oil reserve (
)
Low
beam (
)
High beam (
)
Low
fuel (
)
green
red
green
blue
amber
red
Injection check
DASHBOARD LIGHTING BULBS
NOTE Extract the bulb sockets one by one,
in such a way as to avoid positioning them
incorrectly during the reassembly.
◆ Extract the bulb socket of the dashboard
part in which there has been a light de-
crease:
◆ Extract the bulb and replace it with one of
the same type.
