ASUS
ASMB7-iKVM
1-5
1.5

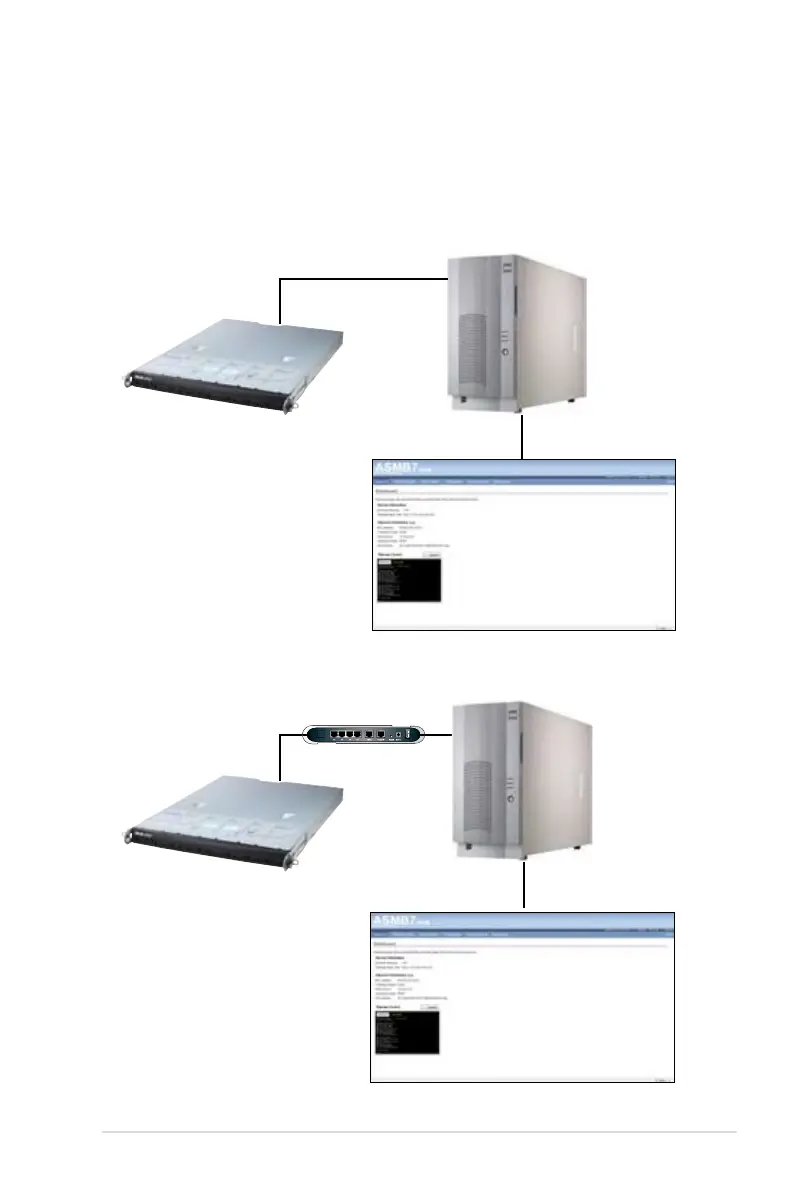

Network setup
The
ASMB7-iKVM server management board installed on the remote server
connects to a local/central server via direct LAN connection or through a network
hub. Below are the supported server management configurations.
Remote server
with
ASMB7-iKVM
Hub or router
Direct LAN connection
LAN connection through a network hub
Remote server
with
ASMB7-iKVM
RJ-45 cable
Remote console with
web-based browser
Remote console with
web-based browser
16
18
