A-2
Appendix: Reference information
A.1
BMC connector
The
ASUS server motherboards that support the
ASMB7-iKVM comes with a
Baseboard Management Controller (BMC) connector
.

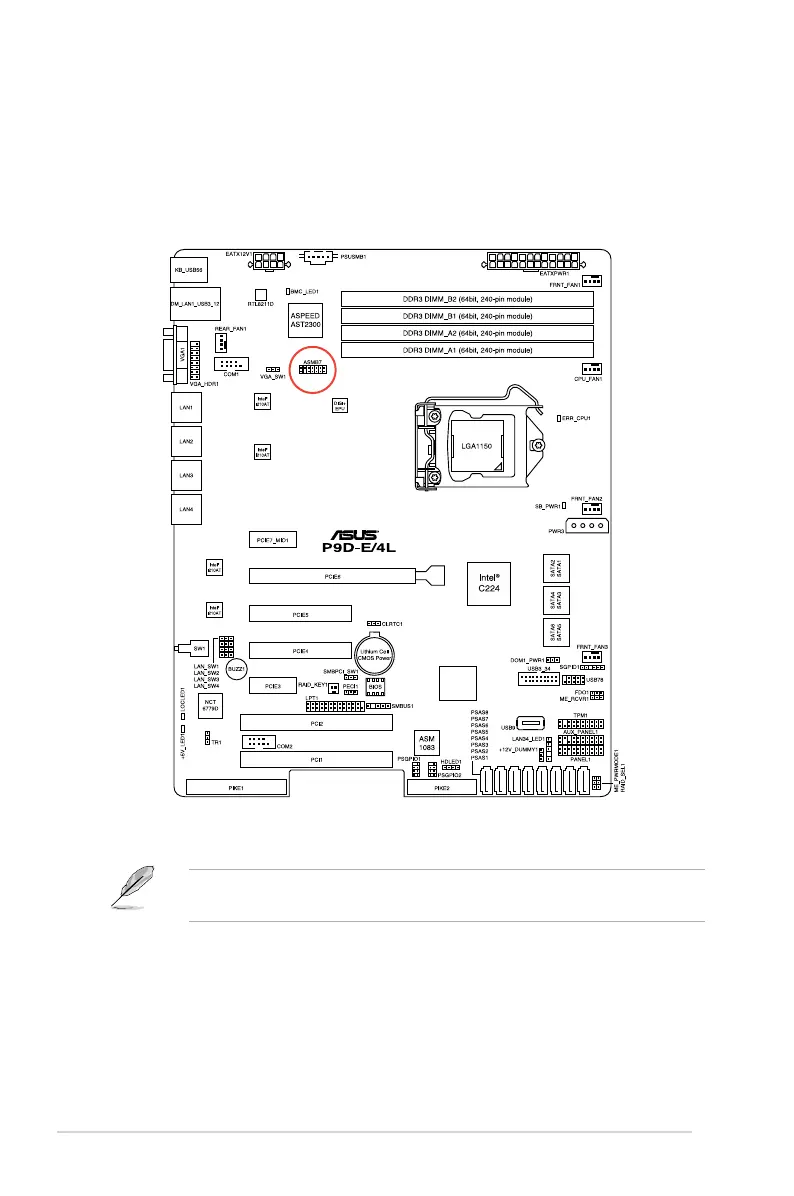

Refer to the illustration below to locate the BMC connector on different server
motherboards.
The
motherboard
illustration
is
for
reference
only
.
The
motherboard
layout
and
appearance may vary depending on the model..
