1-22 Chapter 1: Product introduction

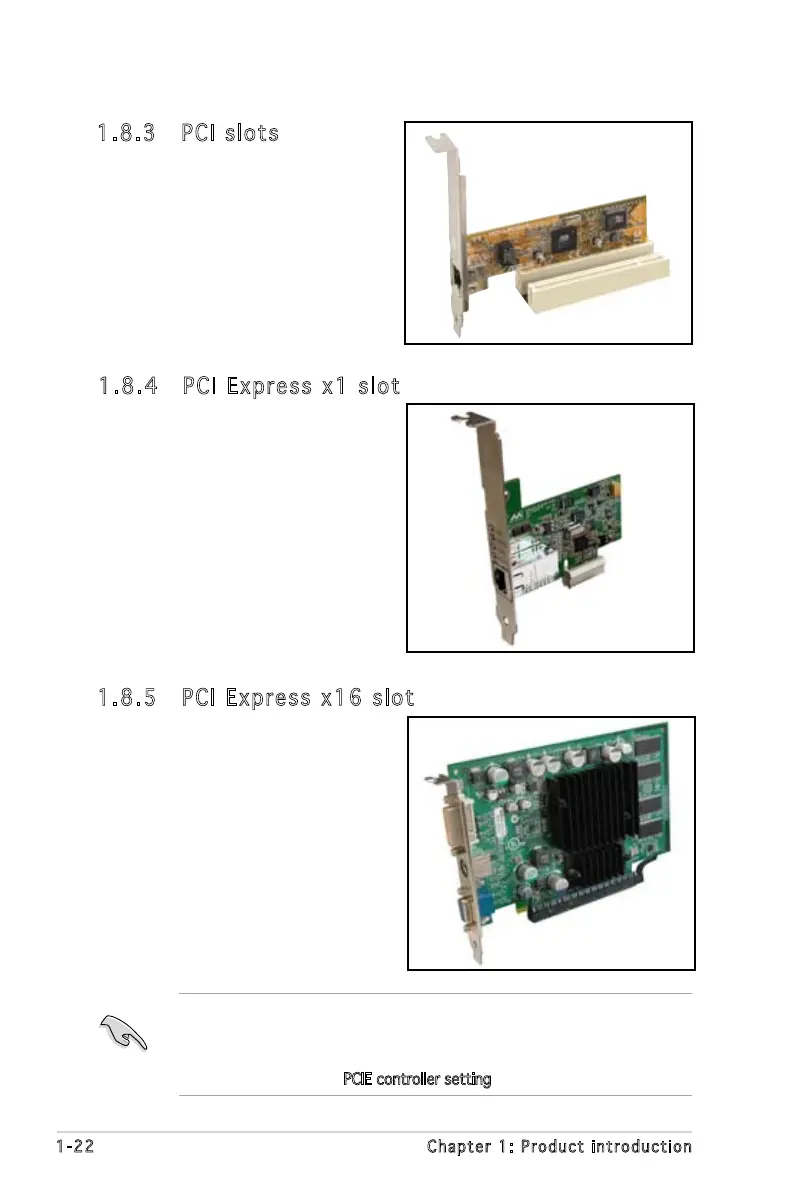

1.8.3 PCI slots
The PCI slots support cards such as
a LAN card, SCSI card, USB card, and
other cards that comply with PCI
specications. The gure shows a
LAN card installed on a PCI slot.
1.8.4 PCI Express x1 slot
This motherboard supports PCI
Express x1 network cards, SCSI cards
and other cards that comply with
the PCI Express specications. The
following gure shows a network
card installed on the PCI Express x1
slot.
1.8.5 PCI Express x16 slot
This motherboard has supports
PCI Express x16 graphic cards
that comply with PCI Express
specications. The gure shows a
graphics card installed on the PCI
Express x16 slot.
• If you install a PCIEx8 or x16 card in PCIEx16 slot, the onboard DVI
device is automatically disabled.
• If you install a PCIEx1 or x4 card in PCIEx16 slot, set the PCIE_SW
jumper to 2-3. See
PCIE controller setting on page 1-25 for details.
