Asus M2N-VM DH User Manual

ASUS M2N-VM DH 2-23
Select Menu
Item Specic Help
Select Frame Buffer Size
for Onboard Graphic
Phoenix-Award BIOS CMOS Setup Utility
Advanced
Chipset
Frame Buffer Size [32M]
CPU<->MCP61 HT Speed [5x]
CPU<->MCP61 HT Width [↓16 ↑16]
DRAM Conguration
PCIE Spread Spectrum [Enabled]
SATA Spread Spectrum [Enabled]
HT Spread Spectrum [Center]
System BIOS Cacheable [Disabled]

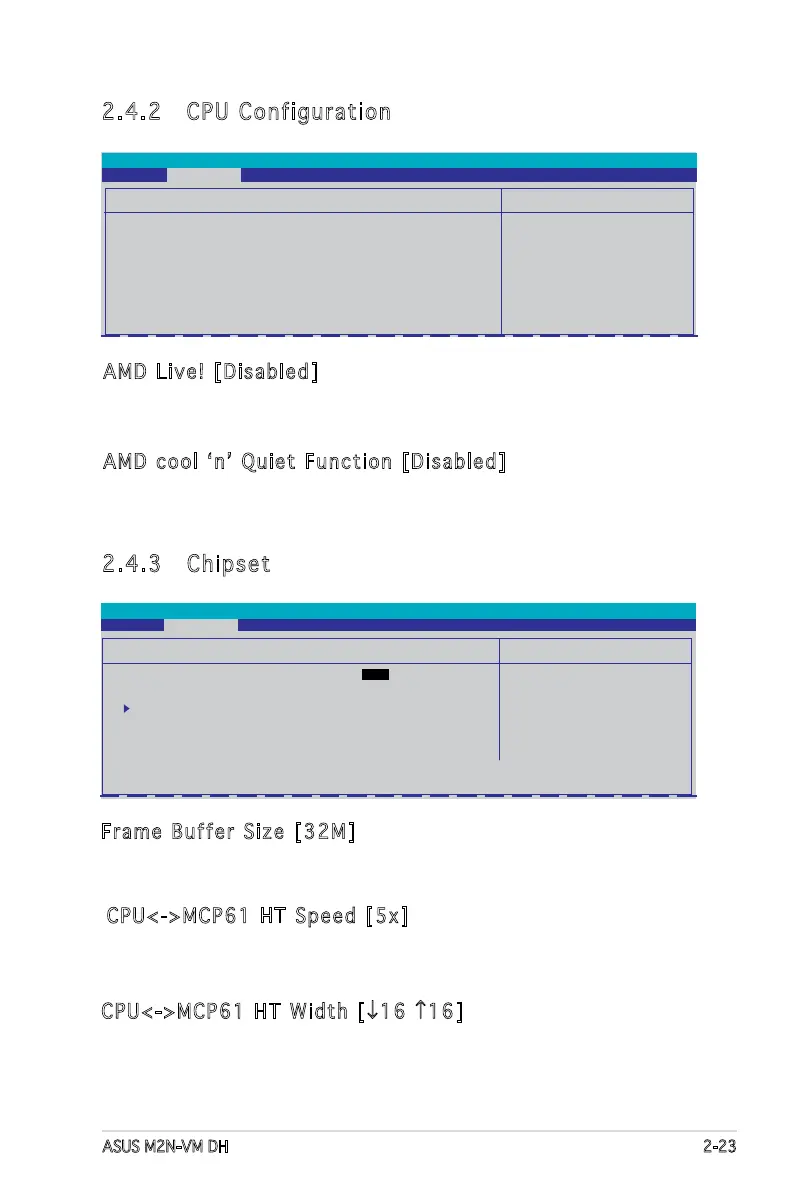

2.4.3 Chipset
2.4.2 CPU Configuration
Select Menu
Item Specic Help
DRAM timing and control
Phoenix-Award BIOS CMOS Setup Utility
Advanced
CPU Conguration
CPU Type AMD Engineering Sample
CPU Speed 2600MHz
Cache RAM 1024K
AMD Live! [Disabled]
AMD cool‘n’Quiet Function [Disabled]
AMD Live! [Disabled]
Enables or disables the AMD Live function. Conguration options: [Enabled]
[Disabled]
AMD cool ‘n’ Quiet Function [Disabled]
Enables or disables the AMD cool ‘n’ Quiet. Conguration options: [Enabled]
[Disabled]
Frame Buffer Size [32M]
Selects the frame buffer size for Onboard Graphic.
Conguration options: [16M] [32M] [64M] [128M] [256M] [Disabled]
CPU<->MCP61 HT Speed [5x]
Sets the processor and MCP61 HyperTransport speed.
Conguration options: [1x] [2x] [3x] [4x] [5x]
CPU<->MCP61 HT Width [↓ 16 ↑16]
Allows you to set processor and MCP61 HyperTransport speed.
Conguration options: [↓8 ↑8] [↓16 ↑16]

Asus M2N-VM DH Specifications

General

ECC	No
Number of memory slots	4
Maximum internal memory	8 GB
Processor socket	Socket AM2
Processor manufacturer	AMD
Maximum number of SMP processors	1
USB 2.0 connectors	2
S/PDIF out connector	Yes
Number of SATA connectors	5
I/O ports	1x WiFi-AP Solo antenna
Special features	ASUS WiFi-AP Solo Asus DH Remote ASUS MP3-In ASUS C.P.R. Q-Fan2 MyLogo2 EZ Flash 2
Manageability features	WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE, Chassis Intrusion
Controller interface type	JMicron JMB363
Controller 2nd interface type	NVIDIA nForce 430
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	ADI AD1988
Power source type	ATX
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Bundled software	Drivers ASUS DH Remote Application ASUS WiFi-AP Solo Wizard Nvidia MediaShield RAID ASUS PC Probe 2 AMD Cool ' n' Quiet Utility ASUS LiveUpdate Utility Anti-Virus software (OEM)
Graphics card	GeForce 6100
Networking features	Gigabit Ethernet, Wireless LAN
BIOS memory size	32 Mbit
RAID levels	0, 1, 0+1, 5, JBOD

Weight and Dimensions

Width	245 mm
