Asus M2N-VM DH User Manual

1-38 Chapter 1: Product introduction

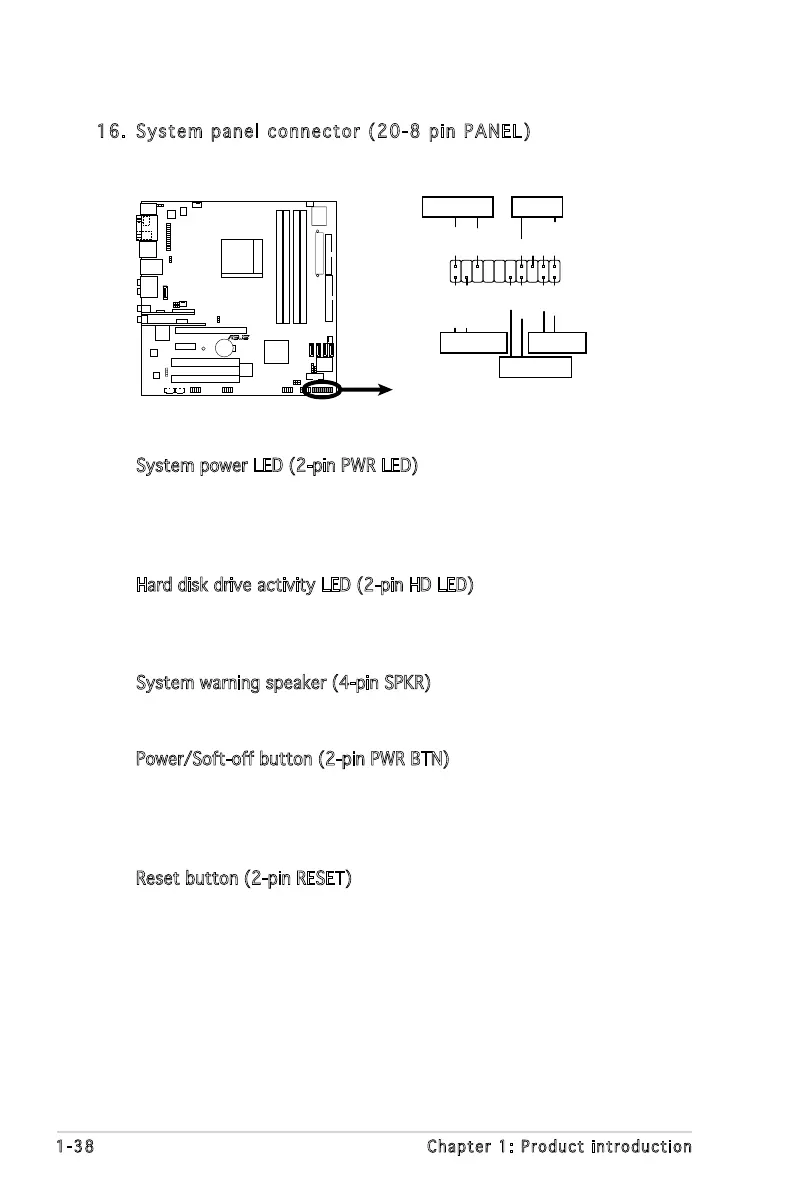

16. System panel connector (20-8 pin PANEL)
This connector supports several chassis-mounted functions.
• System power LED (2-pin PWR LED)
This 3-pin connector is for the system power LED. Connect the
chassis power LED cable to this connector. The system power LED
lights up when you turn on the system power, and blinks when the
system is in sleep mode.
• Hard disk drive activity LED (2-pin HD LED)
This 2-pin connector is for the HDD Activity LED. Connect the HDD
Activity LED cable to this connector. The IDE LED lights up or ashes
when data is read from or written to the HDD.
• System warning speaker (4-pin SPKR)
This 4-pin connector is for the chassis-mounted system warning
speaker. The speaker allows you to hear system beeps and warnings.
• Power/Soft-off button (2-pin PWR BTN)
This connector is for the system power button. Pressing the power
button turns the system ON or puts the system in SLEEP or SOFT-OFF
mode depending on the BIOS settings. Pressing the power switch for
more than four seconds while the system is ON turns the system OFF.
• Reset button (2-pin RESET)
This 2-pin connector is for the chassis-mounted reset button for
system reboot without turning off the system power.
PWR BTN
R
M2N-VM DH
M2N-VM DH System Panel Connector
* Requires an ATX power supply
NEL
PLED-
PWR
+5V
Speaker
Ground
RESET
Ground
Reset
Ground
Ground
PLED+
IDE_LED-
IDE_LED+
HD LED
SPKR
PA
PWR LED

Asus M2N-VM DH Specifications

General

ECC	No
Number of memory slots	4
Maximum internal memory	8 GB
Processor socket	Socket AM2
Processor manufacturer	AMD
Maximum number of SMP processors	1
USB 2.0 connectors	2
S/PDIF out connector	Yes
Number of SATA connectors	5
I/O ports	1x WiFi-AP Solo antenna
Special features	ASUS WiFi-AP Solo Asus DH Remote ASUS MP3-In ASUS C.P.R. Q-Fan2 MyLogo2 EZ Flash 2
Manageability features	WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE, Chassis Intrusion
Controller interface type	JMicron JMB363
Controller 2nd interface type	NVIDIA nForce 430
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	ADI AD1988
Power source type	ATX
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Bundled software	Drivers ASUS DH Remote Application ASUS WiFi-AP Solo Wizard Nvidia MediaShield RAID ASUS PC Probe 2 AMD Cool ' n' Quiet Utility ASUS LiveUpdate Utility Anti-Virus software (OEM)
Graphics card	GeForce 6100
Networking features	Gigabit Ethernet, Wireless LAN
BIOS memory size	32 Mbit
RAID levels	0, 1, 0+1, 5, JBOD

Weight and Dimensions

Width	245 mm
