ASUS M2N-VM DH 2-13

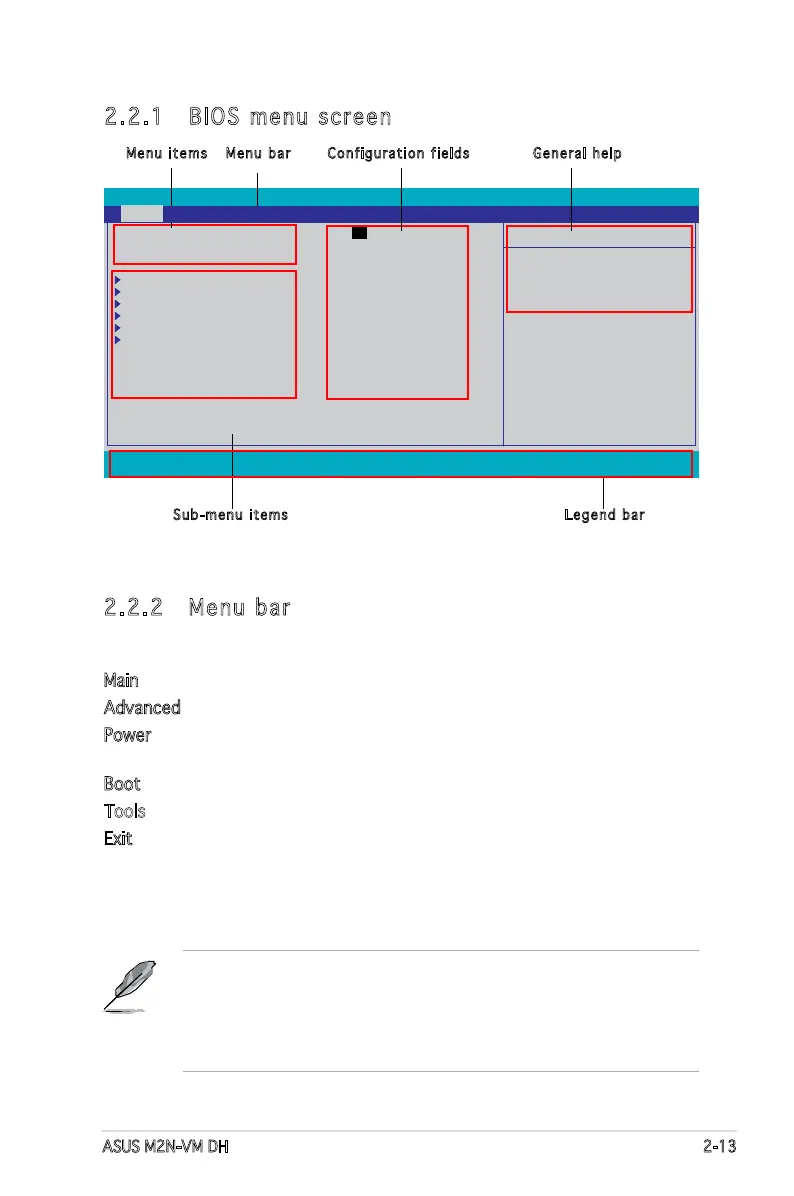

2.2.1 BIOS menu screen
Select Menu
Item Specic Help
Change the day, month,
year and century.
Lege nd bar
Gene ral helpMenu bar
Sub- menu ite ms
Conf iguratio n fie ldsMenu items
Phoenix-Award BIOS CMOS Setup Utility
Main Advanced Power Boot Tools Exit
F1:Help ↑↓ : Select Item -/+: Change Value F5: Setup Defaults
ESC: Exit →←: Select Menu Enter: Select SubMenu F10: Save and Exit
System Time 15 : 30 : 36
System Date Mon, Mar 2 2006
Legacy Diskette A: [1.44M, 3.5in.]
Primary IDE Master [ST321122A]
Primary IDE Slave [ASUS CDS520/A]
SATA1 [None]
SATA2 [None]
SATA3 [None]
SATA4 [None]
HDD SMART Monitoring [Disabled]
Installed Memory 512MB
Usable Memory 512MB
2.2.2 Menu bar
The menu bar on top of the screen has the following main items:
Main For changing the basic system conguration
Advanced For changing the advanced system settings
Power For changing the advanced power management (APM)
conguration
Boot For changing the system boot conguration
Tools For setting EZ Flash 2 and O.C. Prole.
Exit For selecting the exit options and loading default
settings
To select an item on the menu bar, press the right or left arrow key on the
keyboard until the desired item is highlighted.
• The BIOS setup screens shown in this chapter are for reference
purposes only, and may not exactly match what you see on your
screen.
• Visit the ASUS website (www.asus.com) to download the latest BIOS
information.

Asus M2N-VM DH Specifications

General

ECC	No
Number of memory slots	4
Maximum internal memory	8 GB
Processor socket	Socket AM2
Processor manufacturer	AMD
Maximum number of SMP processors	1
USB 2.0 connectors	2
S/PDIF out connector	Yes
Number of SATA connectors	5
I/O ports	1x WiFi-AP Solo antenna
Special features	ASUS WiFi-AP Solo Asus DH Remote ASUS MP3-In ASUS C.P.R. Q-Fan2 MyLogo2 EZ Flash 2
Manageability features	WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE, Chassis Intrusion
Controller interface type	JMicron JMB363
Controller 2nd interface type	NVIDIA nForce 430
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	ADI AD1988
Power source type	ATX
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Bundled software	Drivers ASUS DH Remote Application ASUS WiFi-AP Solo Wizard Nvidia MediaShield RAID ASUS PC Probe 2 AMD Cool ' n' Quiet Utility ASUS LiveUpdate Utility Anti-Virus software (OEM)
Graphics card	GeForce 6100
Networking features	Gigabit Ethernet, Wireless LAN
BIOS memory size	32 Mbit
RAID levels	0, 1, 0+1, 5, JBOD

Weight and Dimensions

Width	245 mm
