4-14
Chapter 4: BIOS Setup
4.4.3

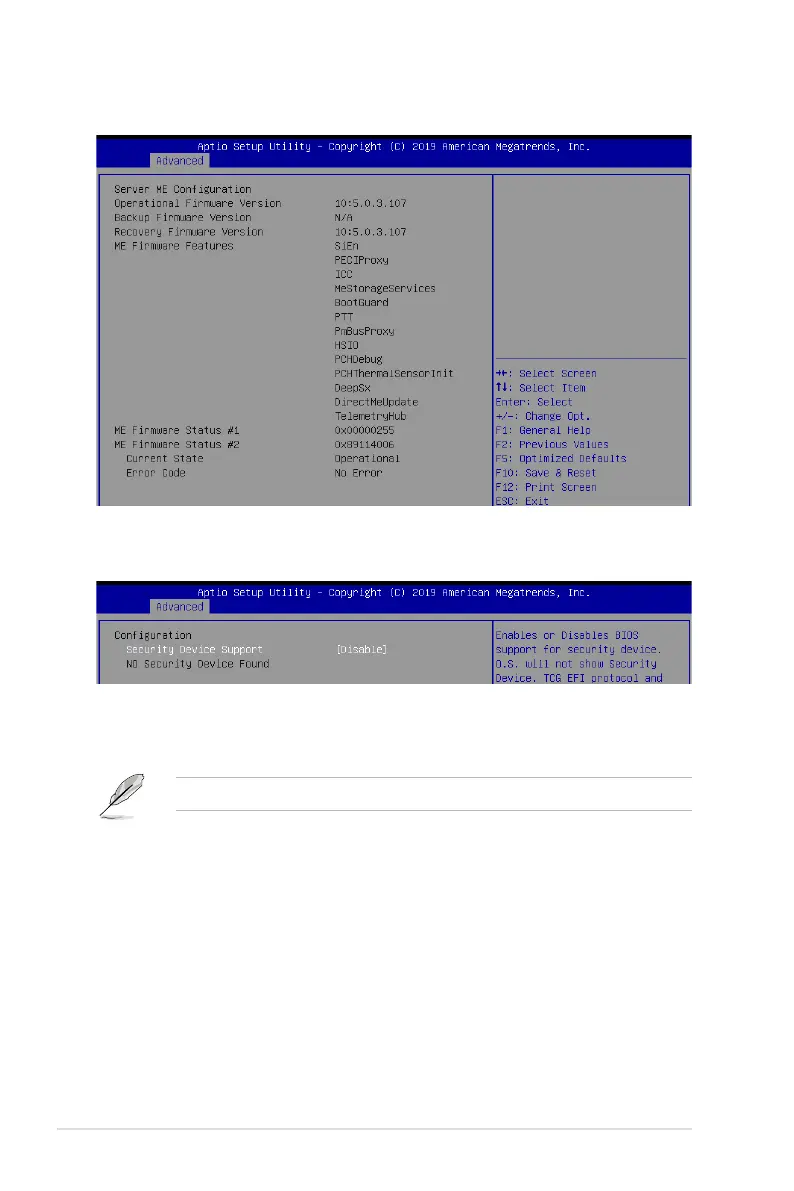

Server ME Configuration
Security Device Support [Disabled]
This item allows you to enable or disable Security Device Support.
Congurationoptions:[Disabled][Enabled]
The following item appears only when you set
Security Device Support
to
[Enabled]
.
TPM Device Selection [PTT]
Allows you to select the TPM device.
Congurationoptions:[PTT][dTPM]
4.4.4
Trusted Computing
69
