ASUS P5QL-E 5-11
5.3.2 Audio congurations
The Realtek
®
audio CODEC provides 8-channel audio capability to deliver the
ultimate audio experience on your computer. The software provides Jack-Sensing
function, S/PDIF Out support, and interrupt capability. The CODEC also includes
the Realtek
®
proprietary UAJ
®
(Universal Audio Jack) technology for all audio ports,
eliminating cable connection errors and giving users plug and play convenience.
Follow the installation wizard to install the Realtek
®
Audio Driver from the support
CD/DVD that came with the motherboard package.
If the Realtek audio software is correctly installed, you will nd the Realtek HD
Audio Manager icon on the taskbar.
From the taskbar, double-click on the SoundEffect icon to display the Realtek HD
Audio Manager.

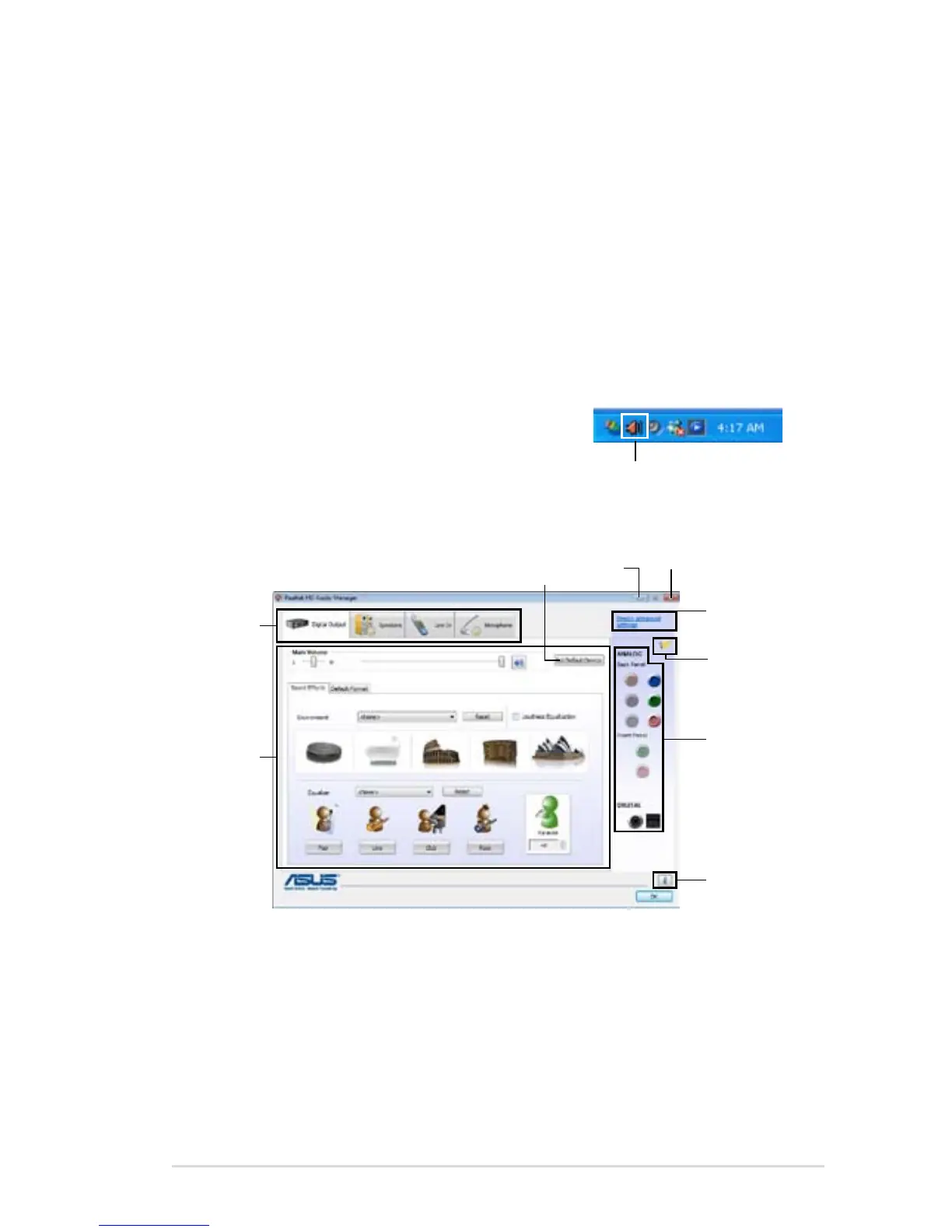

Realtek HD Audio Manager
A. Realtek HD Audio Manager for Windows Vista™
Control
settings
window
Conguration
option tabs
Information
button
Exit button
Minimize
button
Device
advanced
settings
Connector
settings
Analog
and digital
connector
status
Set default
device button

Asus P5QL-E - Motherboard - ATX Specifications

General

Form Factor	ATX
Chipset	Intel P43
CPU Socket	LGA 775
Maximum Memory	16 GB
Memory Type	DDR2
Memory Speed	1066/800/667 MHz
Memory Slots	4 x DIMM
Storage Interfaces	6 x SATA 3Gb/s, 1 x IDE
Compatible Processors	Intel Core 2 Quad, Core 2 Duo, Pentium, Celeron
Expansion Slots	3 x PCI
USB Ports	12 x USB 2.0
LAN	Realtek RTL8111C Gigabit LAN
Audio	8-channel High Definition Audio
RAID Support	RAID 0, RAID 1, RAID 0+1, RAID 5
