ASUS P5QL-E
2-35

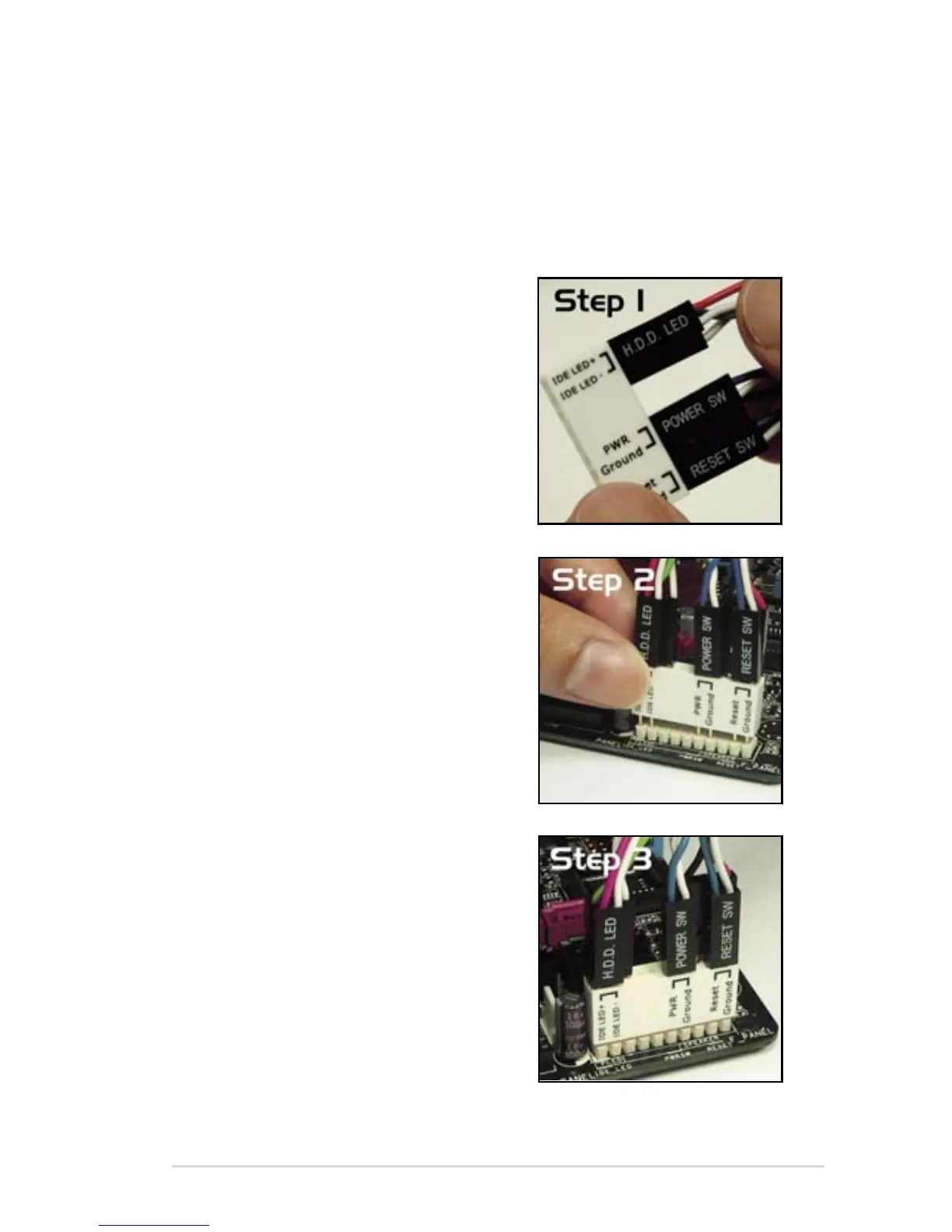

ASUS Q-Connector (system panel)
You can use the ASUS Q-Connector to connect/disconnect chassis front panel
cables in a few steps. Refer to the instructions below to install the ASUS Q-
Connector.
1. Connect the front panel cables to the
ASUS Q-Connector.
Refer to the labels on the Q-Connector
to know the detailed pin denitions, then
match them to the respective front panel
cable labels.
2. Install the ASUS Q-Connector to the
system panel connector, making sure
the orientation matches the labels on the
motherboard.
3. The front panel functions are now enabled.
The gure shows the Q-Connector properly
installed on the motherboard.

Asus P5QL-E - Motherboard - ATX Specifications

General

Form Factor	ATX
Chipset	Intel P43
CPU Socket	LGA 775
Maximum Memory	16 GB
Memory Type	DDR2
Memory Speed	1066/800/667 MHz
Memory Slots	4 x DIMM
Storage Interfaces	6 x SATA 3Gb/s, 1 x IDE
Compatible Processors	Intel Core 2 Quad, Core 2 Duo, Pentium, Celeron
Expansion Slots	3 x PCI
USB Ports	12 x USB 2.0
LAN	Realtek RTL8111C Gigabit LAN
Audio	8-channel High Definition Audio
RAID Support	RAID 0, RAID 1, RAID 0+1, RAID 5
