ASUS P5QL-E
2-23
2.7 Connectors

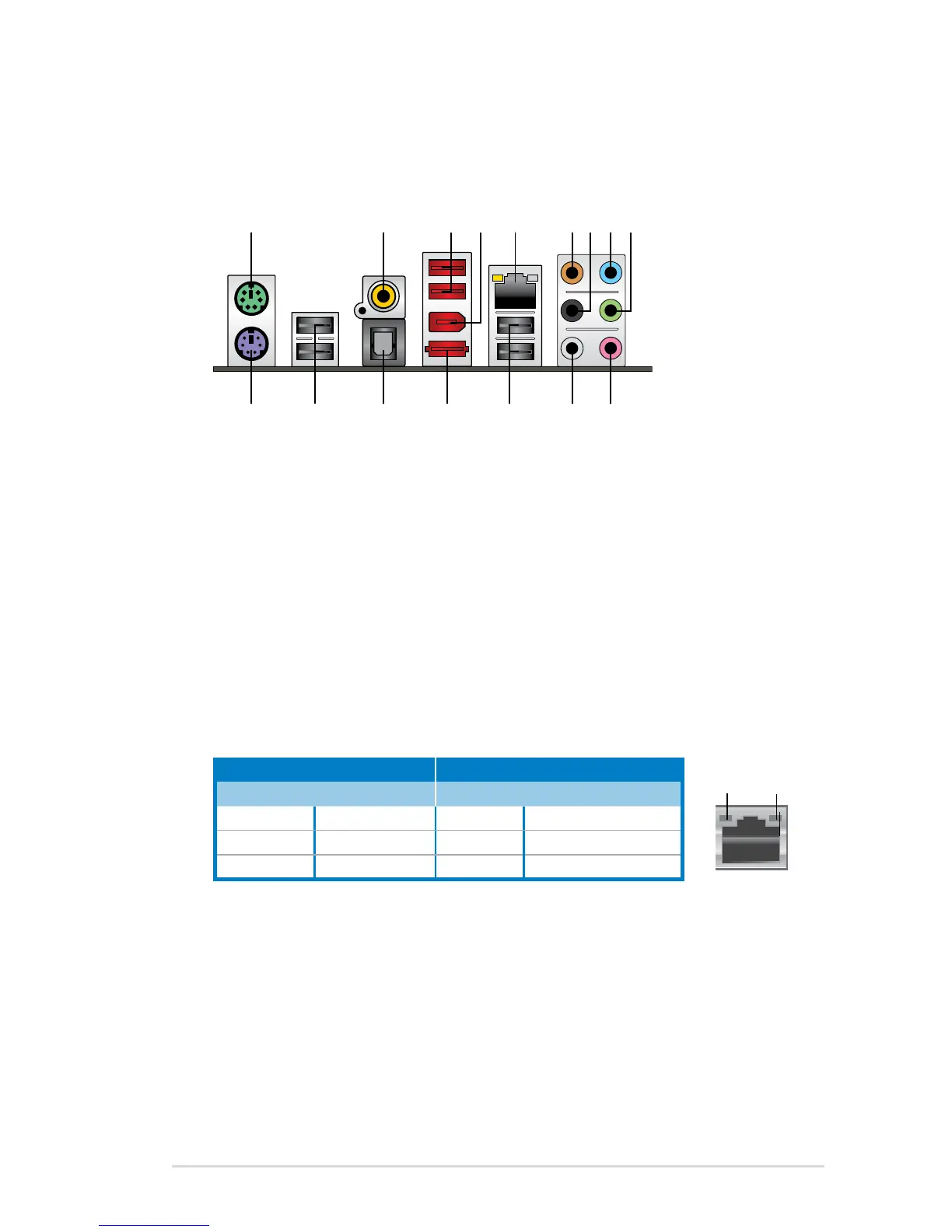

2.7.1 Rear panel connectors
Activity Link LED Speed LED
Status Description Status Description
OFF No link OFF 10 Mbps connection
ORANGE Linked ORANGE 100 Mbps connection
BLINKING Data activity GREEN 1 Gbps connection
LAN port LED indications
SPEED
LED
ACT/LINK
LED
LAN port
4. IEEE 1394a port. This 6-pin IEEE 1394a port provides high-speed
connectivity for audio/video devices, storage peripherals, PCs, or portable
devices.
5. LAN (RJ-45) port.
This port allows Gigabit connection to a Local Area
Network (LAN) through a network hub. Refer to the table below for the LAN
port LED indications.
1. PS/2 mouse port (green).
This port is for a PS/2 mouse.
2. Coaxial S/PDIF Out port.
This port connects an external audio output device
via a coaxial S/PDIF cable.
3. USB 2.0 ports 3 and 4.
These 4-pin Universal Serial Bus (USB) ports are
available for connecting USB 2.0 devices.
111315 12 10
1 32 654 7 8 9
16 14
6. Center/Subwoofer port (orange). This port connects the center/subwoofer
speakers.
7.
Rear Speaker Out port (black). This port connects the rear speakers on a
4-channel, 6-channel, or 8-channel audio conguration.
8. Line In port (light blue).
This port connects the tape, CD, DVD player, or
other audio sources.

Asus P5QL-E - Motherboard - ATX Specifications

General

Form Factor	ATX
Chipset	Intel P43
CPU Socket	LGA 775
Maximum Memory	16 GB
Memory Type	DDR2
Memory Speed	1066/800/667 MHz
Memory Slots	4 x DIMM
Storage Interfaces	6 x SATA 3Gb/s, 1 x IDE
Compatible Processors	Intel Core 2 Quad, Core 2 Duo, Pentium, Celeron
Expansion Slots	3 x PCI
USB Ports	12 x USB 2.0
LAN	Realtek RTL8111C Gigabit LAN
Audio	8-channel High Definition Audio
RAID Support	RAID 0, RAID 1, RAID 0+1, RAID 5
