Asus P5QL-E - Motherboard - ATX User Manual

ASUS P5QL-E
2-33
12. ATX power connectors (24-pin EATXPWR, 8-pin EATX12V)
These connectors are for ATX power supply plugs. The power supply plugs
are designed to t these connectors in only one orientation. Find the proper
orientation and push down rmly until the connectors completely t.
• Make sure to remove the cap on the EATX12V connector before connecting
an 8-pin EPS +12V power plug.
• Use only an 8-pin EPS +12V power plug for the EATX12V connector.
• For a fully congured system, we recommend that you use a power supply
unit (PSU) that complies with ATX 12 V Specication 2.0 (or later version)
and provides a minimum power of 400 W.
• Do not forget to connect the 4-pin/8pin EATX12V power plug; otherwise,
the system will not boot.
• Use of a PSU with a higher power output is recommended when
conguring a system with more power-consuming devices. The system
may become unstable or may not boot up if the power is inadequate.
• If you are uncertain about the minimum power supply requirement for your
system, refer to the Recommended Power Supply Wattage Calculator
at http://support.asus.com/PowerSupplyCalculator/PSCalculator.
aspx?SLanguage=en-us for details.
P5QL-E

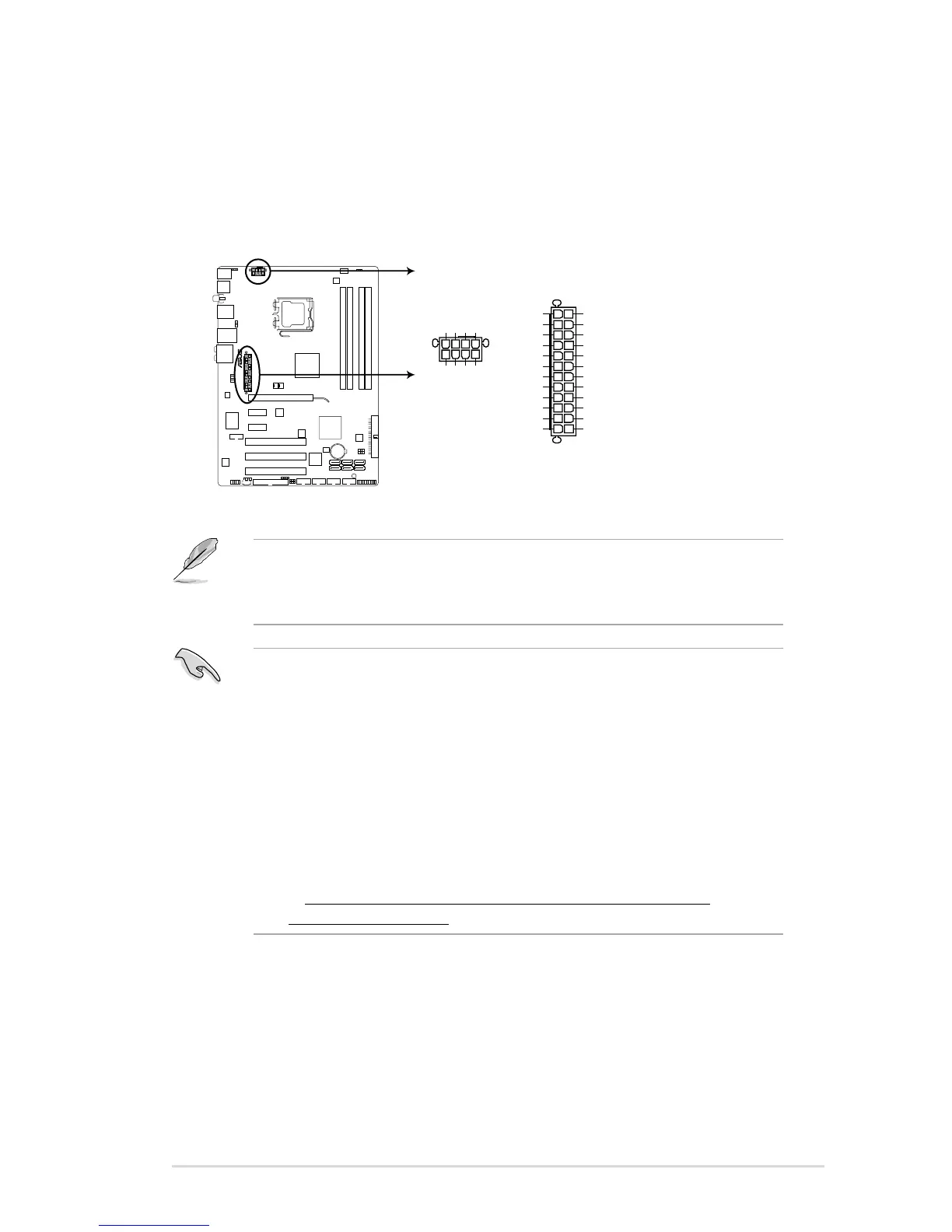

P5QL-E ATX power connectors
EATXPWR
PIN 1
+3 Volts
-12 Volts
GND
PSON#
GND
GND
GND
-5 Volts
+5 Volts
+5 Volts
+5 Volts
GND
+3 Volts
+3 Volts
GND
+5 Volts
GND
+5 Volts
GND
Power OK
+5V Standby
+12 Volts
+12 Volts
+3 Volts
EATX12V
PIN 1
+12V DC +12V DC +12V DC +12V DC
GND GND GND GND

Asus P5QL-E - Motherboard - ATX Specifications

General

Form Factor	ATX
Chipset	Intel P43
CPU Socket	LGA 775
Maximum Memory	16 GB
Memory Type	DDR2
Memory Speed	1066/800/667 MHz
Memory Slots	4 x DIMM
Storage Interfaces	6 x SATA 3Gb/s, 1 x IDE
Compatible Processors	Intel Core 2 Quad, Core 2 Duo, Pentium, Celeron
Expansion Slots	3 x PCI
USB Ports	12 x USB 2.0
LAN	Realtek RTL8111C Gigabit LAN
Audio	8-channel High Definition Audio
RAID Support	RAID 0, RAID 1, RAID 0+1, RAID 5
