Asus P5QL-E - Motherboard - ATX User Manual

ASUS P5QL-E 5-31
5.3.8 ASUS EPU–6 Engine
ASUS EPU–6 Engine is an energy-efcient tool that satises different computing
needs. This utility provides four modes that you can select to enhance system
performance or save power. Selecting Auto mode will have the system shift modes
automatically according to current system status. You can also customize each
mode by conguring settings like CPU frequency, vCore Voltage, and Fan Control.
Installing 6 Engine
To install 6 Engine on your computer:
1. Place the support DVD to the optical drive. The Drivers installation tab
appears if your computer has an enabled Autorun feature.
2. Click the
Drivers tab and then click ASUS EPU—6 Engine.
3. Follow the screen instructions to complete installation.
Launching 6 Engine

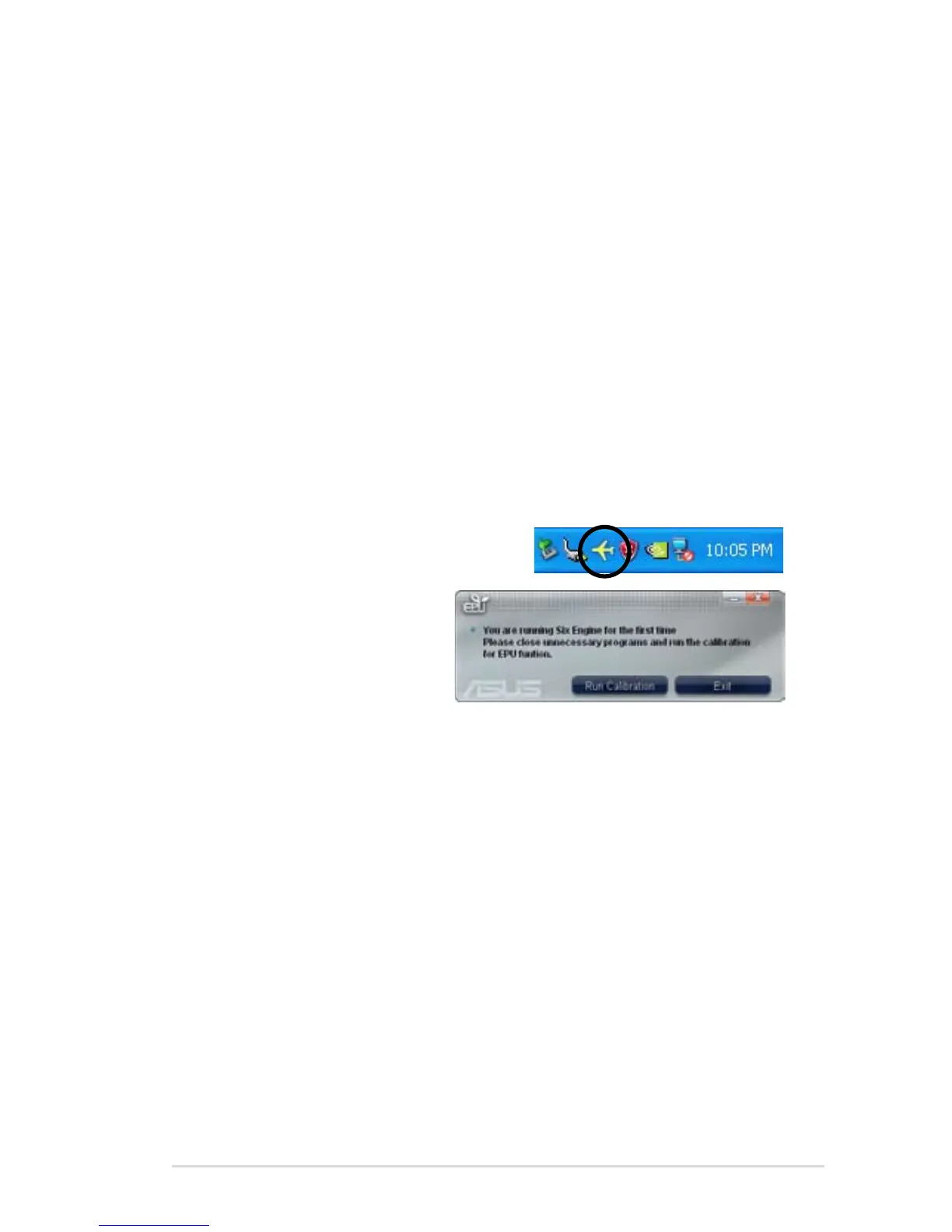

Launch 6 Engine by double-clicking the 6 Engine icon on the Windows
®
notication
area.
The rst time you launch 6 Engine, the following
message will appear, asking you
to run Calibration rst. Running
calibration allows the system to
detect CPU properties to optimize
power management.
Click Run Calibration and wait for a few seconds. Then, the 6 Engine main menu
appears.

Asus P5QL-E - Motherboard - ATX Specifications

General

Form Factor	ATX
Chipset	Intel P43
CPU Socket	LGA 775
Maximum Memory	16 GB
Memory Type	DDR2
Memory Speed	1066/800/667 MHz
Memory Slots	4 x DIMM
Storage Interfaces	6 x SATA 3Gb/s, 1 x IDE
Compatible Processors	Intel Core 2 Quad, Core 2 Duo, Pentium, Celeron
Expansion Slots	3 x PCI
USB Ports	12 x USB 2.0
LAN	Realtek RTL8111C Gigabit LAN
Audio	8-channel High Definition Audio
RAID Support	RAID 0, RAID 1, RAID 0+1, RAID 5
