ATI Q46D Dissolved Oxygen System Part 4 – Electrical Installation
21
O&M Manual
Rev-N (4/21)
4.7 Junction Box Connection
For installations where the sensor is to be located more than 25 feet from the monitor (max. 100
feet), a junction box must be used. The junction box is shown in Figure 15 - Junction Box
Interconnect Wiring, and is supplied with a ½" conduit hub on one end and a sensor cable gland
on the other end.
Note: If sensor is experiencing Low-Slope or Low-Output conditions, due to poor Earth
Ground Connections, move the Shield connection from P/S board to alternate
location on lid, where indicated with an “S”.

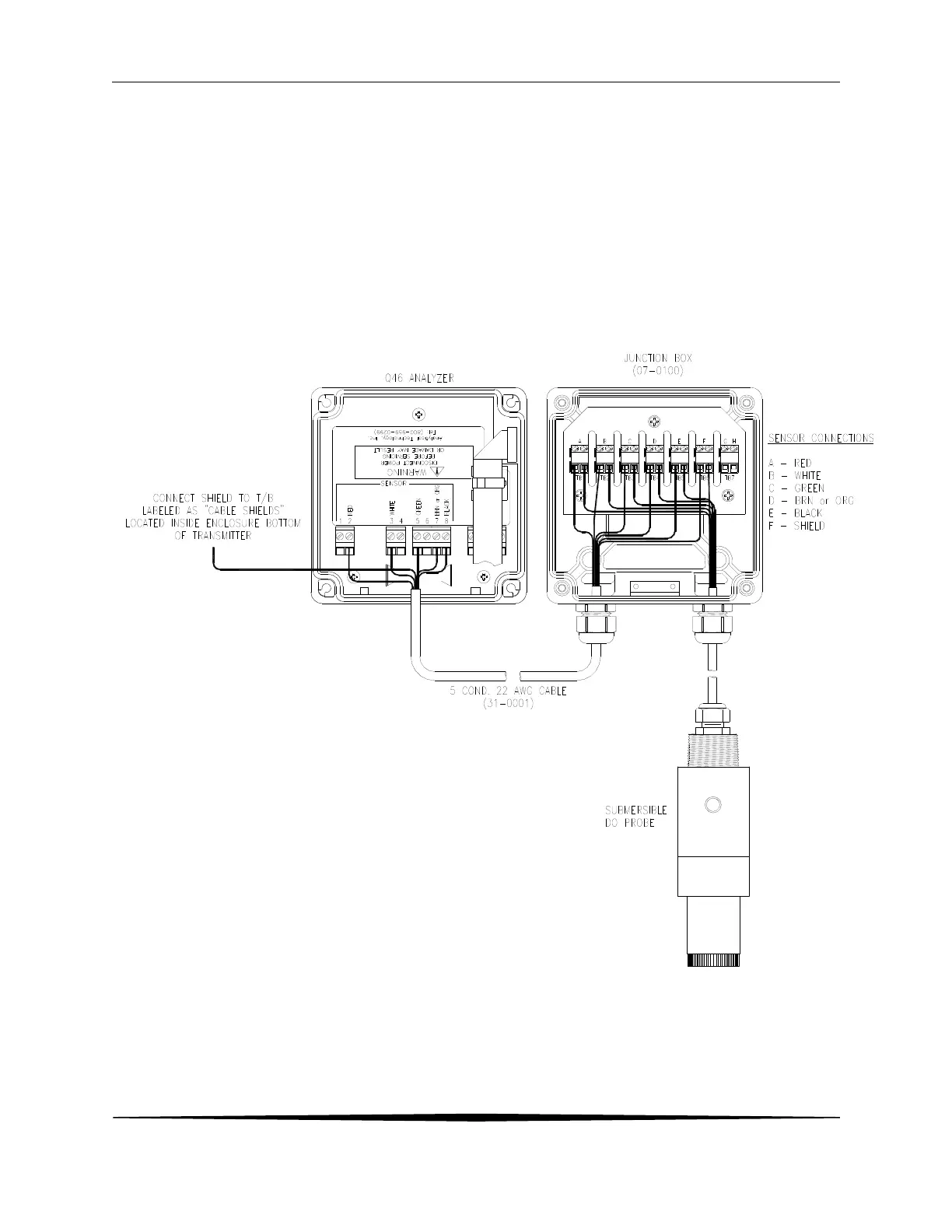

Figure 15 - Junction Box Interconnect Wiring
To Next Page
