ATI Q46D Dissolved Oxygen System Part 5 – Sensor Assembly
24
O&M Manual
Rev-N (4/21)
The sensor is now ready for operation. The membrane should be stretched tightly across the tip
of the sensor.
CAUTION: When handling the assembled sensor, do not set the sensor on its tip or damage
to the membrane will result. Severe impacts on the tip of the sensor from dropping
or other misuse may cause permanent damage to the sensor.
5.2 Flow Type D.O. Sensor
The D.O. sensor designed for use in flow applications is similar in construction to the sensing
module described above. The method for sensor preparation is basically the same as described
in section 5.1.

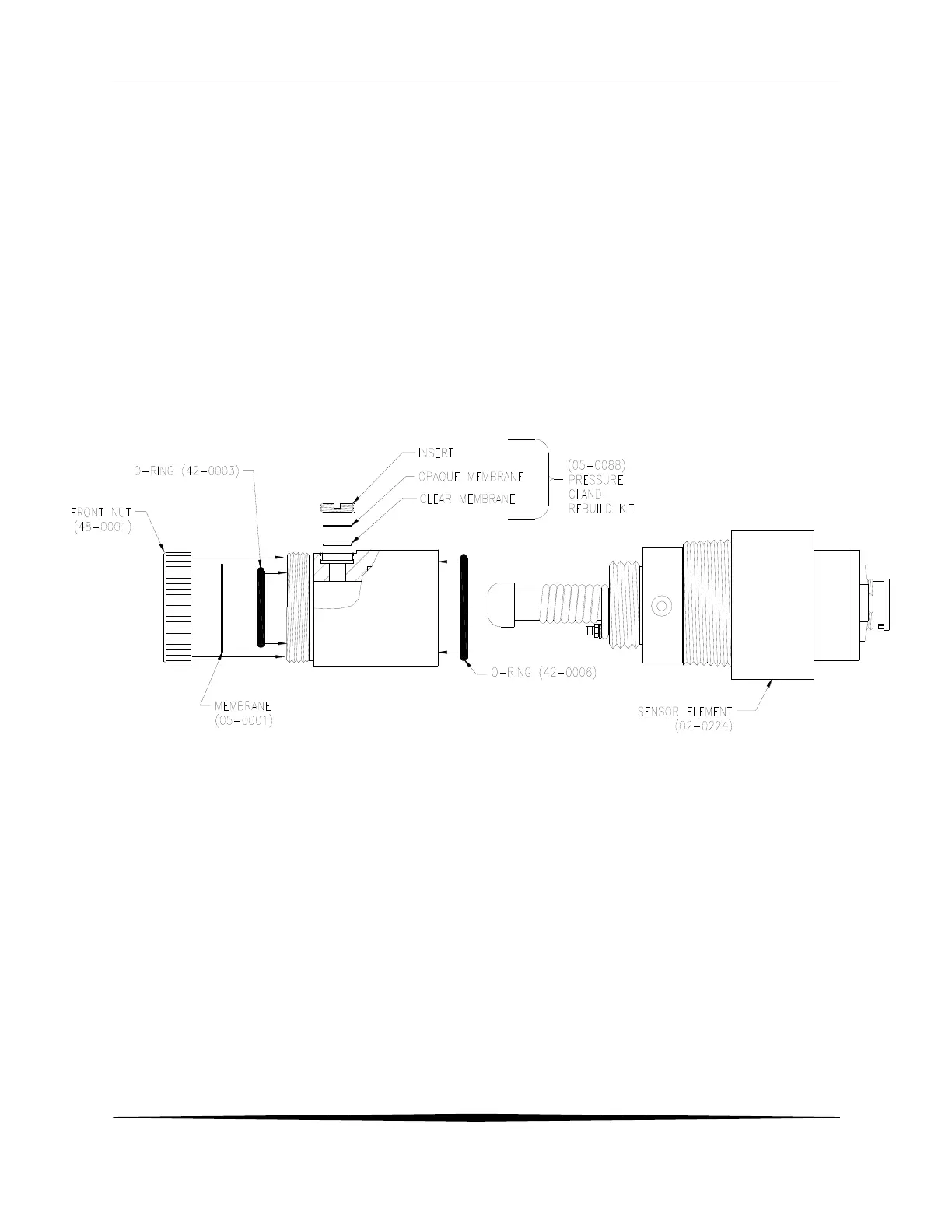

Figure 18 - Flow Type D.O. Sensor Assembly
To Next Page
