Quick Setup Guide 2. Installing the Hardware
BroadCloud SIP Trunk 11 AudioCodes Mediant BRI/PRI Gateway
Protective Earthing
The equipment is classified as Class I EN60950 and UL60950 and must be
earthed at all times.
For Finland: "Laite on liltettava suojamaadoituskoskettimilla varustettuun
pistorasiaan."
For Norway: "Apparatet rna tilkoples jordet stikkontakt."
For Sweden: "Apparaten skall anslutas till jordat uttag."
To earth the device:
1. Connect an electrically earthed strap of 16 AWG wire (minimum) to the chassis'
earthing screw (located on the rear panel), using the supplied washer.
2. Connect the other end of the strap to a protective earthing. This should be in
accordance with the regulations enforced in the country of installation.

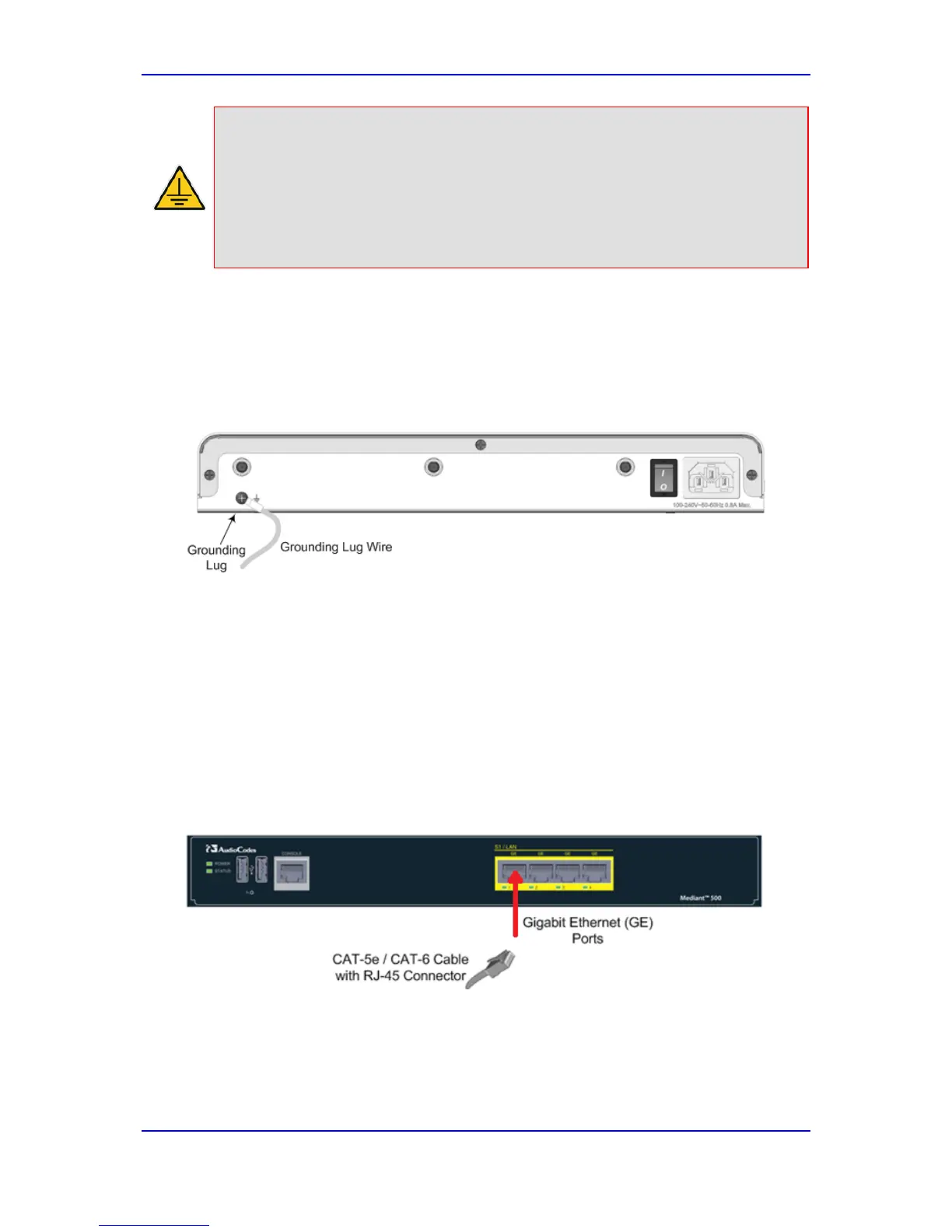

Figure 2-10: Earthing the Device
2.2.1.2 Connecting to the LAN
Up to 4 Gigabit Ethernet (10/100/1000Base-T) ports supporting half- and full-duplex mode,
auto-negotiation, and straight/crossover cable detection allow connection to LAN/WAN.
To connect the device to the BroadCloud service::
1. If the device's IP isn't configured yet, connect as shown in Section 3.
2. If the device's IP has already been configured:
a. Connect one end of a straight-through RJ-45 Cat 5e or Cat 6 cable to the RJ-45
port labeled S1 / LAN GE port 1.
b. Connect the other end to the DMZ port assigned by the IT administrator.
Figure 2-11: Cabling the Ethernet Ports
3. Connect the other end of the cable to the Gigabit Ethernet network.
2.2.1.3 Connecting to an ISDN PRI (E1/T1) Trunk
This section shows how to cable the device's E1/T1 (PRI) trunk interface.
