BroadCloud SIP Trunk
AudioCodes Mediant BRI/PRI Gateway 36 Document #: LTRT-12393
4.9 Step 9: Save the Configuration, Connect to DMZ
Note:
Firewall settings for the DMZ must be in place before resetting the device. After
the device is reset, its IP configuration is applied and it is no longer available for
management via the default IP address.
To save the configuration and reset the device:
1. On the toolbar, click Device Actions and then from the dropdown, choose Reset.
2. On the navigation bar, click the Maintenance tab and then in the navigation tree,
select the Maintenance menu and choose Maintenance Actions.
3. Under the 'Save Configuration' group, click the BURN button; a confirmation message
appears when the configuration successfully saves.

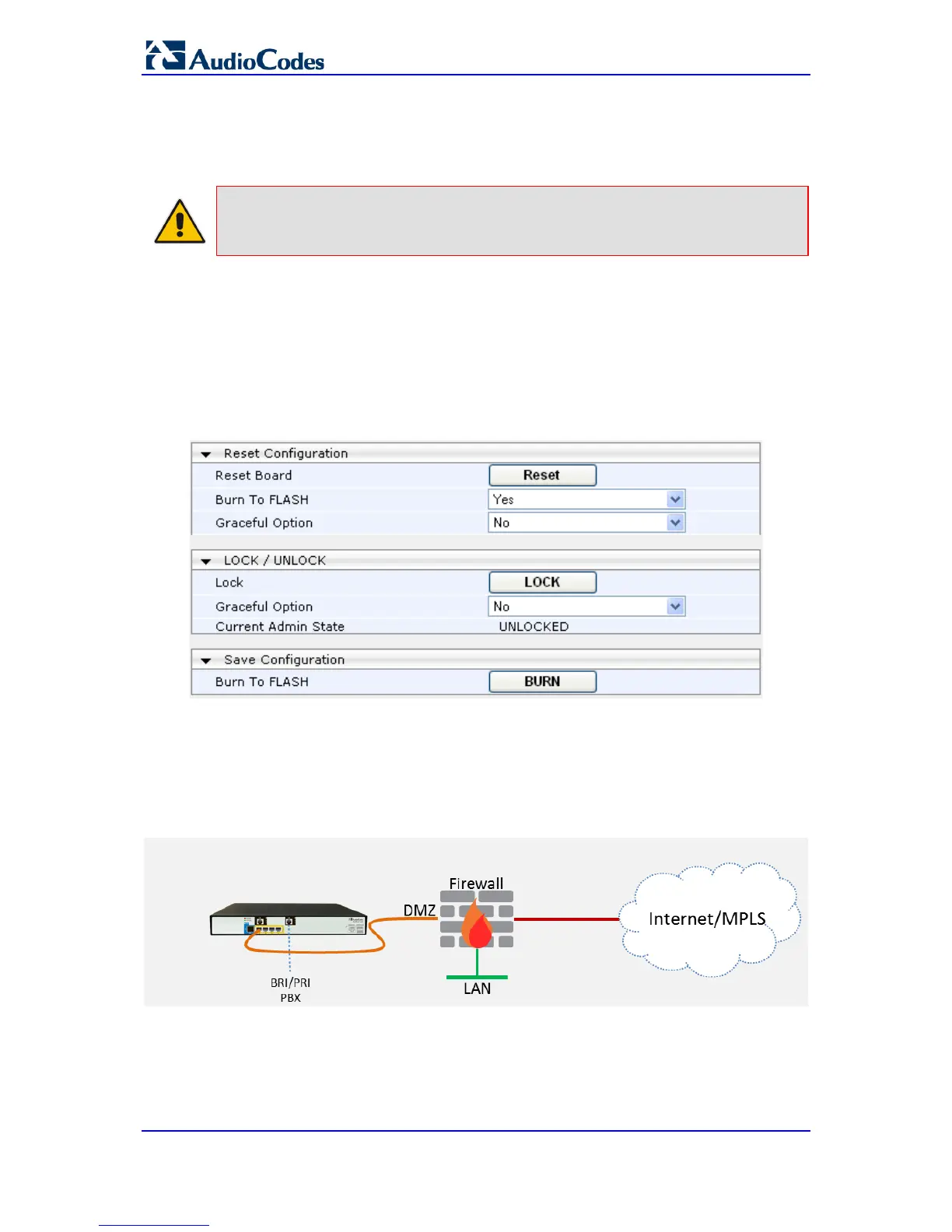

Figure 4-20: Maintenance Actions Page
To connect the device to DMZ:
After the device is reset, the IP address of the device changes to the address
configured in Section 4.2, Step 2. At this point, disconnect your PC from the device
and connect the Ethernet cable from the device’s port 1 (see Section 2) to the DMZ
port provided by the local firewall:
Figure 4-21: Connecting the Device to DMZ
