AudioCodes MSBG Series Installation And Configuration Manual

Survivable Branch Appliance
AudioCodes Enhanced Media Gateway 112 Document #: LTRT-18206
5.2.4 Step 4: Configure SIP TCP Transport Type and Fax Signaling Method
This step describes how to configure the fax signaling method for MP-11x.
¾ To configure the fax signaling method:
1. Open the 'SIP General Parameters' page (Configuration tab > Protocol Configuration
menu > Protocol Definition submenu > SIP General Parameters).

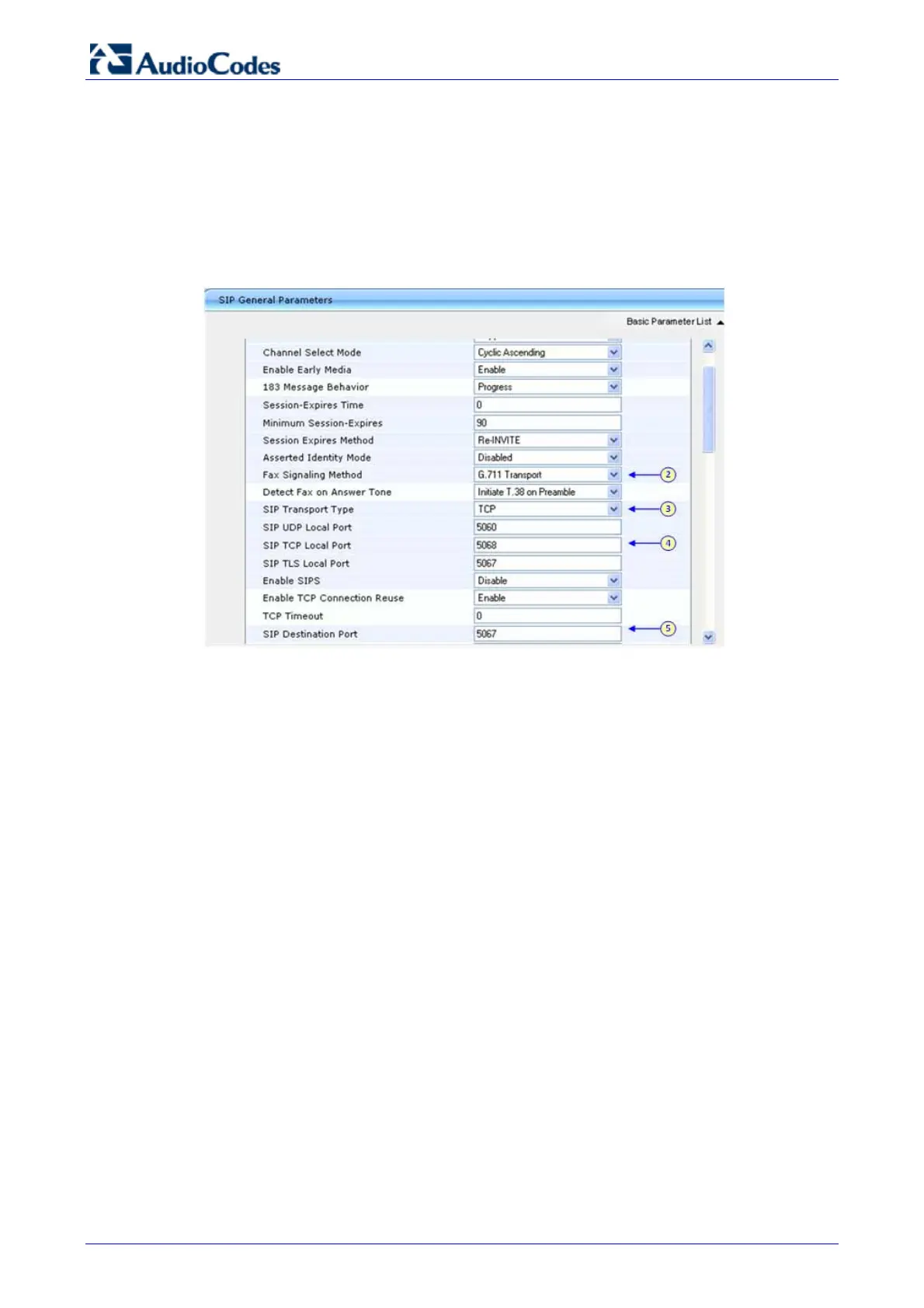

Figure 5-16: SIP General Parameters Page
2. From the ‘FAX Signaling Method’ drop-down list, select ‘G.711 Transport’.
3. From the ‘SIP Transport Type’ drop-down list, select ‘TCP’.
4. In the ‘SIP TCP Local Port’ field, enter ‘5068’ (corresponding to the Central Gateway TLS
transmitting port configuration).
5. In the ‘SIP Destination Port’, enter ‘5067’ (corresponding to the Central Gateway TLS
listening port configuration).
