2.2.3.4.2 Connecting the DC Power Supply
The device can connect to a DC power supply using one of the following methods:
DC terminal block with a screw connection type.
DC terminal block with a crimp connection type.
¾ To connect power using a DC terminal block screw connector:
1. Create a DC cable by inserting two 14-16 AWG insulated wires into the supplied terminal
block adaptor (refer to the figure below), and then fasten the two screws, each one located
directly above each wire.
2. Connect the two insulated wires to the correct DC power supply. Ensure that the connections
to the DC power supply maintain the correct polarity.
3. Insert the terminal block into the DC inlet located on the device's rear panel.

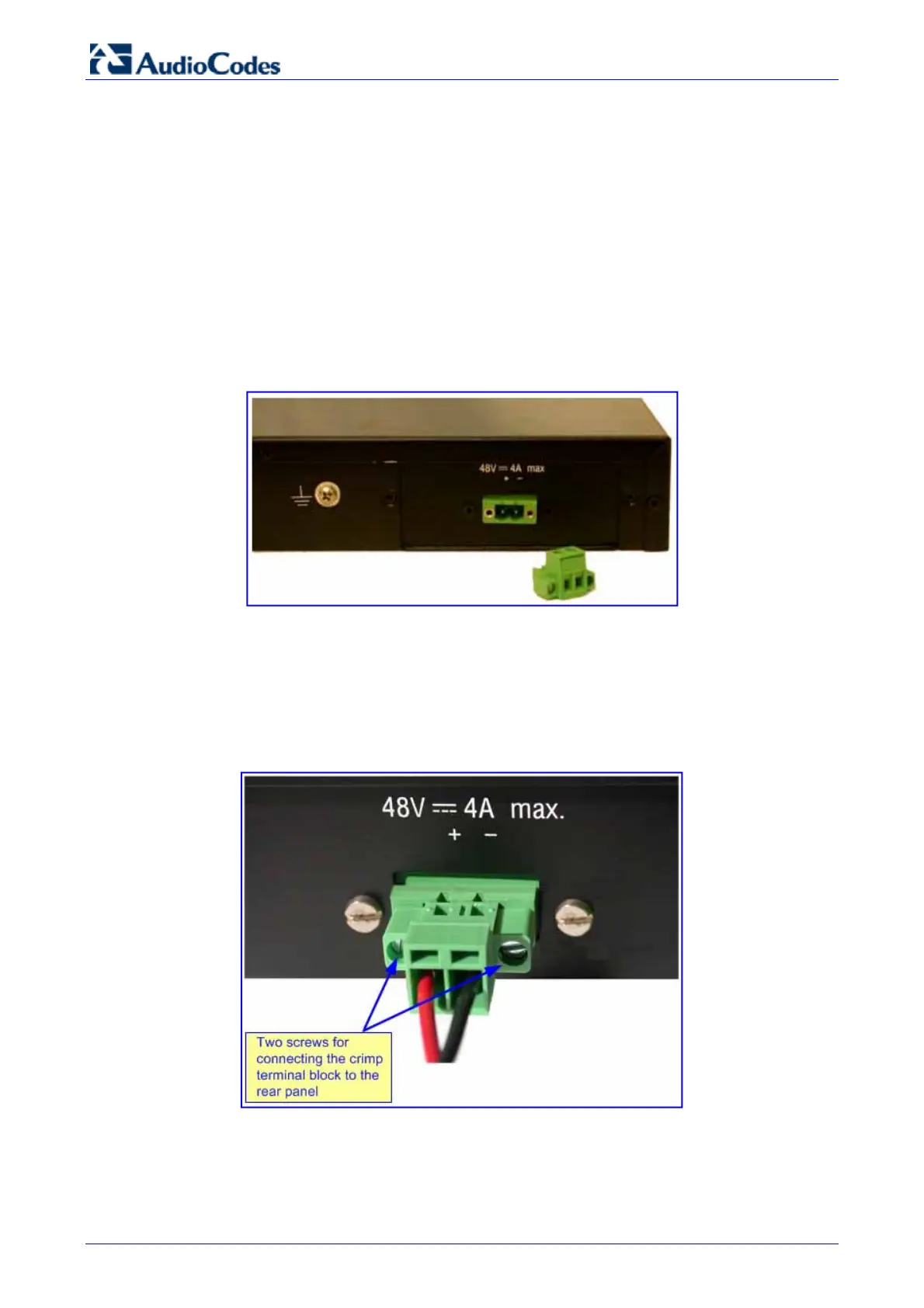

Figure 2-26: DC Power Terminal Block Screw Connector
¾ To connect power using a DC terminal block crimp connector:
1. Remove the DC adaptor (screw connection type) that is attached to the device's rear panel.
2. Connect the two insulated wires to the correct DC power supply. Ensure that the connections
to the DC power supply maintain the correct polarity.
3. Insert the terminal block into the DC inlet located on the device's rear panel.
Figure 2-27: DC Power Terminal Block Crimp Connector
