2 Hardware Installation
This section describes the hardware installation procedures for the following AudioCodes
gateways:
 Mediant 1000/Mediant 1000 MSBG
 Mediant 2000
2.1 Mediant 1000/Mediant 1000 MSBG
The Mediant 1000B chassis is provided only if support for OSN3 is required. The Mediant 1000B
chassis provides eight Advanced Mezzanine Card (AMC) or AdvancedMC form-factor modules
for housing the OSN3 server AMC-based modules (single and mid-sized AMC modules) on its
rear panel. The OSN3 can also be provided with dual SATA hard-disk drives (HDD).
Note: Any usage of additional AMC modules that are not described or mentioned in this
document requires approval by AudioCodes.
2.1.1 Physical Description
This section provides a physical description of the Mediant 1000.
2.1.1.1 Front-Panel Description

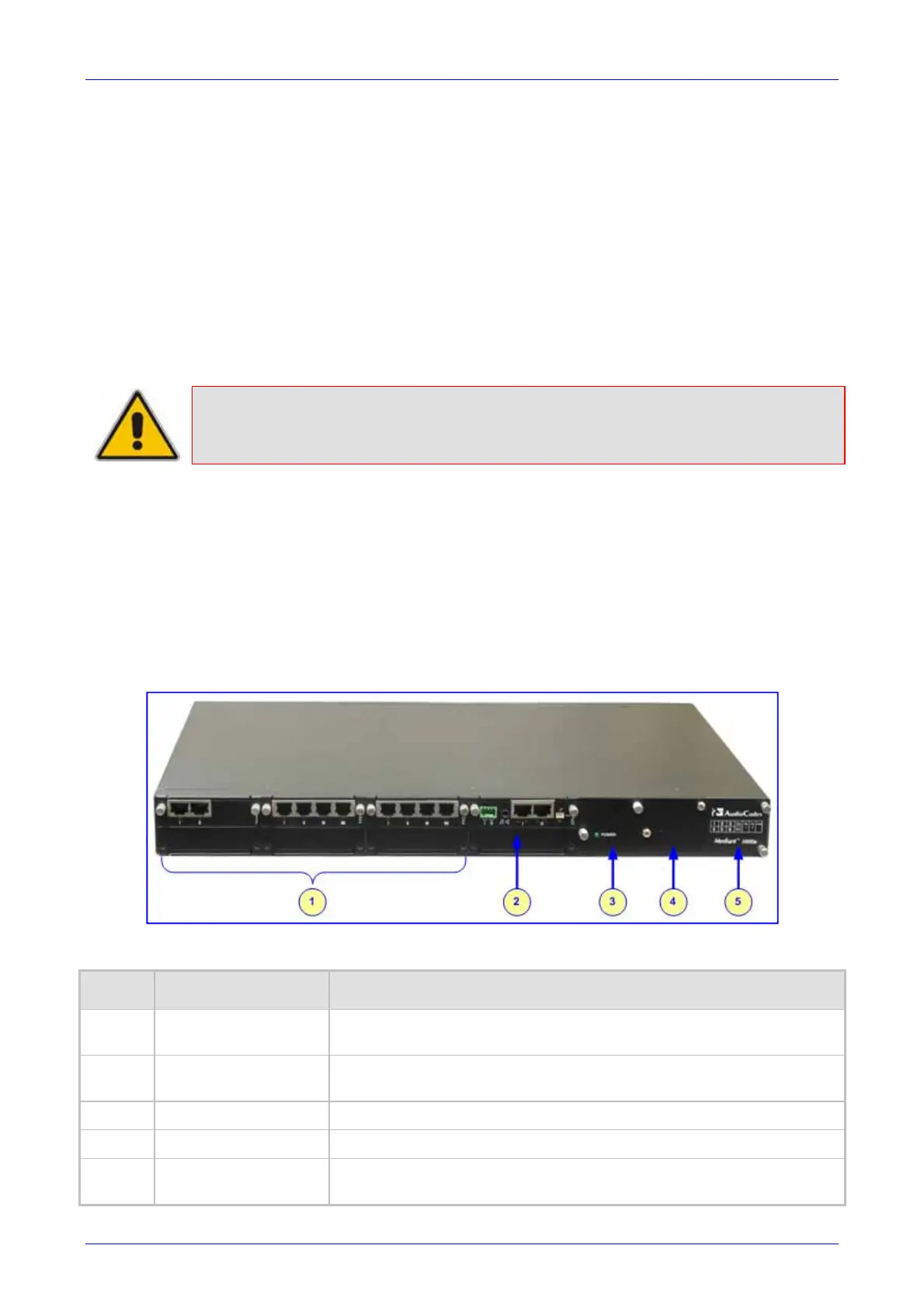

The Mediant 1000B chassis’ front panel is displayed in the figure below and described
in Table 2-1.
Figure 2-1: F
ront-Panel Components
Table 2-1: Front-Panel Component Description
Item # Label Description
1
FXS, FXO, TRUNKS,
BRI, MPM
Telephony modules.
2
CRMX or CMX Hosts either the CRMX module (for data routing) or the CMX module
(CPU for VoIP gateway functionality)
3 Power 1
(Optional) Spare Power Supply module slot
4 Power 2
Main Power Supply module
5
- Extractable Fan Tray module with a schematic displayed showing the
chassis' slot numbers
