Installation and Configuration Manual 3. Initialization
SBA for Microsoft Lync 51 December 2010
3.2 Connecting to the SBA Application
This section describes how to connect to the Survivable Branch Appliance (SBA) application:
Mediant 1000/Mediant 1000 MSBG - refer to Section 3.2.1
Mediant 20
00 - refer to Section 3.2.2
3.2.1 Mediant 1000 and Mediant 1000 MSBG
The OSN Server hosting the SBA application is provided pre-installed with Microsoft Windows®
Server 2008 R2 operating system (OS). You can connect to the OSN Server using Microsoft's
Remote Desktop Connection program.
Notes:
• To connect remotely to the OSN server running Windows, ensure that
Remote Desktop is enabled.
• The remote PC must be in the same subnet as the OSN server (default IP
address is 10.1.10.12).
3.2.1.1 Cabling
Before you can connect remotely to the OSN Server, you need to cable a PC (running Remote
Desktop Connection) to the OSN Server's IP network interface.
The OSN3 server connects initially to the IP network through the LAN port of the OSN3 module.
¾ To cable OSN3 for Remote Desktop Connection:
Connect the Ethernet LAN port of the OSN3 module to the LAN network, by performing one
of the following:
• Remote PC connection: using a straight-through cable, connect the LAN port to a
switch that is connected to the IP network.
• Local PC connection: using a crossover cable, connect the LAN port directly to the
PC's LAN port.

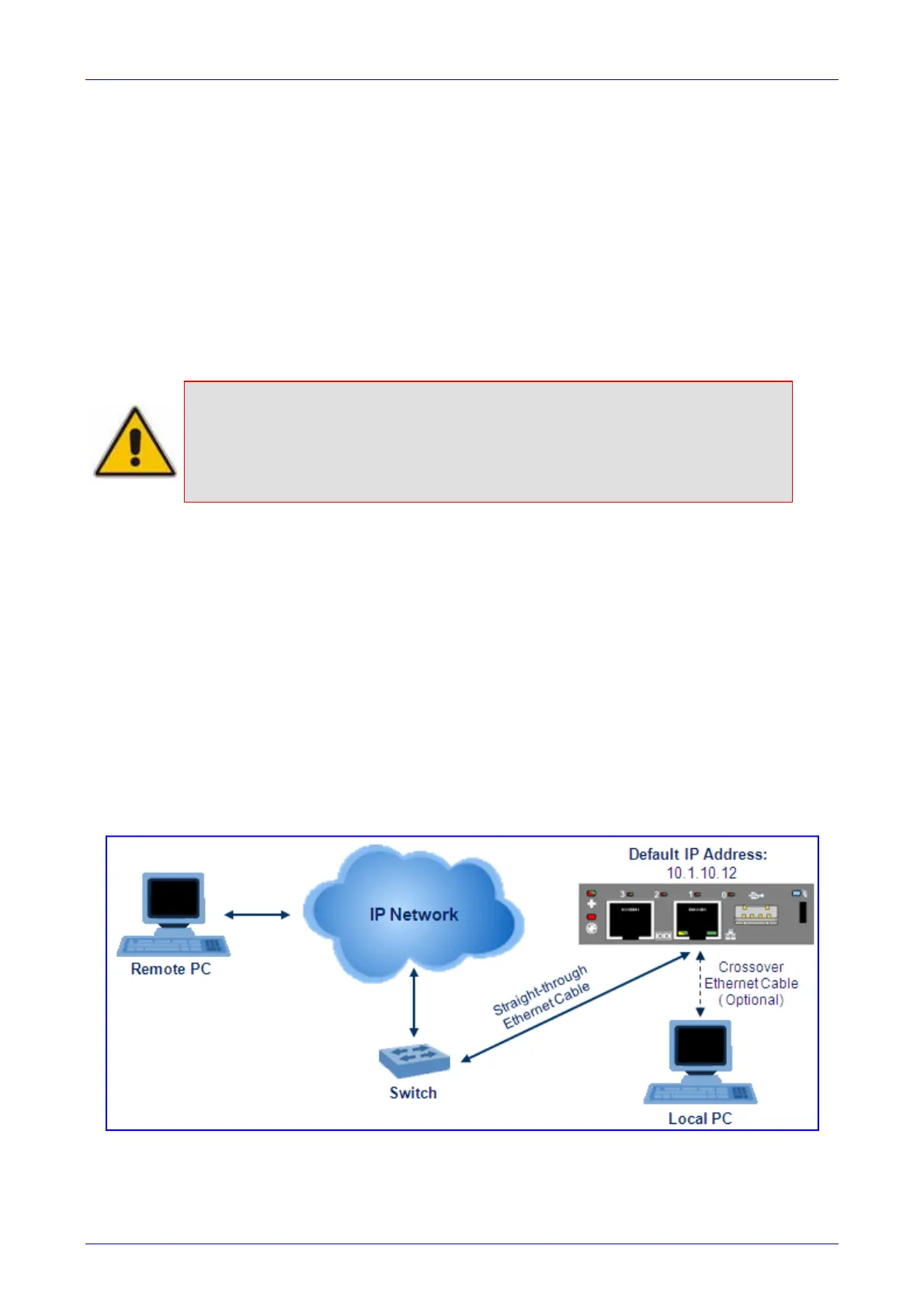

Figure 3-11: Cabling OSN3 for Remote Desktop Connection from PC with Windows XP
