Barco LCD 5521 V4 User Manual

2. Mechanical setup
2 Mechanical setup
2.1 Tools needed for installation
• Torx key size 30
• Wrench key size 13, 15, 24
• Hexagon key size 5, size 4
• Hammer
• Tape, level
• Drilling machine, drill M10, M12, (M6)
• Level (1m)
• Nylon construction line of 25m (wall mount only)
• Tape rule 5m (wall mount only)
The system needs to be fixed to the wall and to the floor. The anchors for this fixations are
not included in the delivery!
The anchors have to be selected according the actual material of the wall /the floor.
X: number of system in horizontal direction (columns)
Y: number of systems in vertical direction (rows)
Required anchors for wall mount: X*Y*3 + X*4 (Size M8)
Required anchors for wall fixation: 2* (1 + roundup(Y/3)) * (X+1) (wall fixation brackets)
Required anchors for floor fixation: 2* (2*X) (floor fixation brackets)
Size: M10 (or M12) (wall fixation brackets, floor fixation brackets)

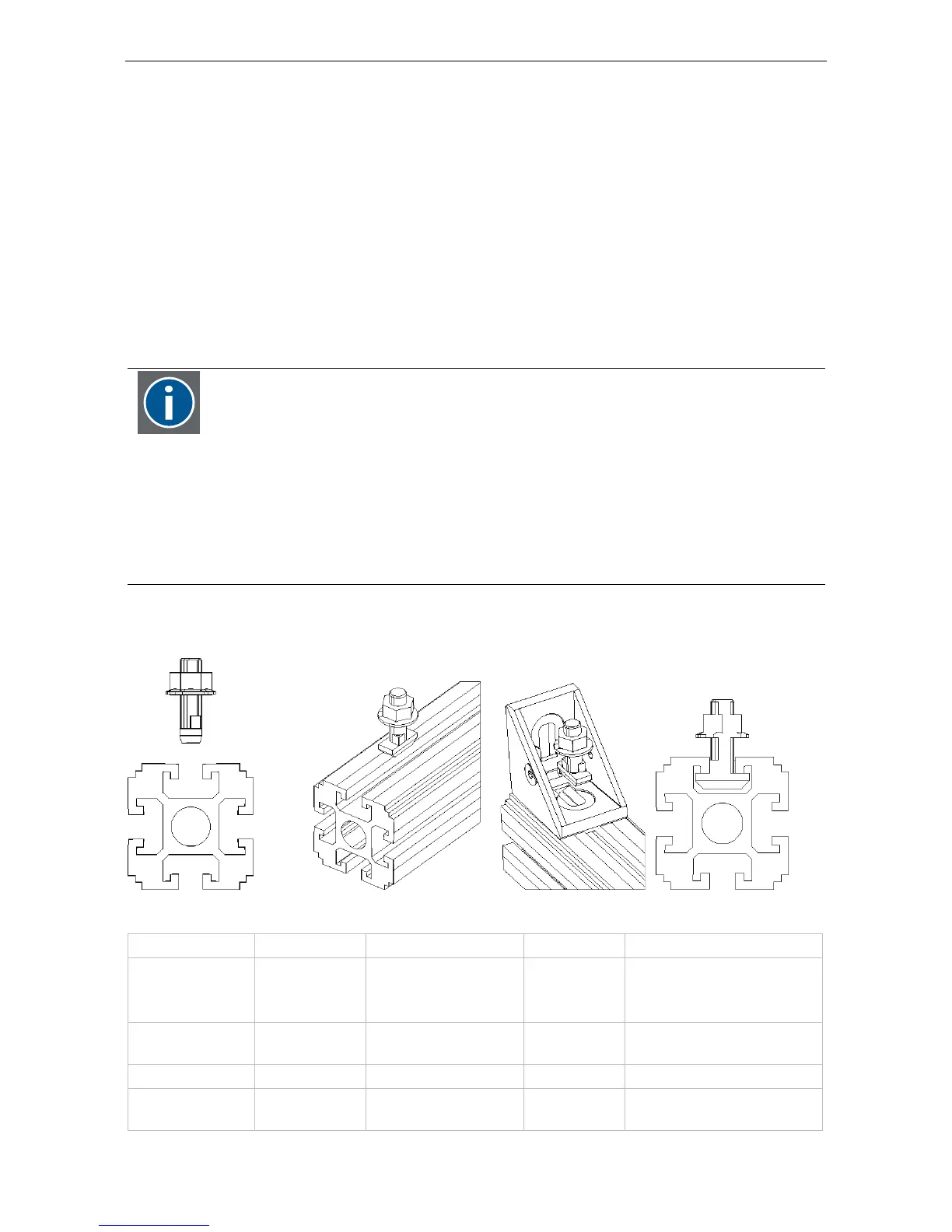

The structure is based on aluminum profiles which are mounted using alu corner brackets and hammer bolts. The
hammer bolts are pre-assembled with a nut. This preassembly is inserted (hammer bolt head parallel to the
groove of the profile) and then rotated by 90 degrees. Subsequently the nut is fixed.
The following table shows the required torque for fixing the screws. When tightening screws, please stick to
these values!
Component Size ItemNo /description Torque Comment
Torx Screw
(Metric)
M6 x 7 B362666 SCR
D7985TXM 6 X 7 STBK
min 3Nm;
max 6Nm
screwed in Nut B358674 PF X
ACC NUT SPGM6 B32-60
Hammer bolt M8X25, M8x20 B361304,B362864 15Nm For powder coated aluminum
covers
Hammer bolt M8X25, M8x20 B361304,B362864 25Nm For aluminum brackets
Headless screw M8X10 0.5 Nm Headless screws on T-bar
connectors
Barco - LCD 5521 V4 - R591734 - Installation manual - Revision 00 - March-2017
_____________________________________________________________
19
