5. Mechanical setup of display wall with pedestals
5.6 Finalizing the structure

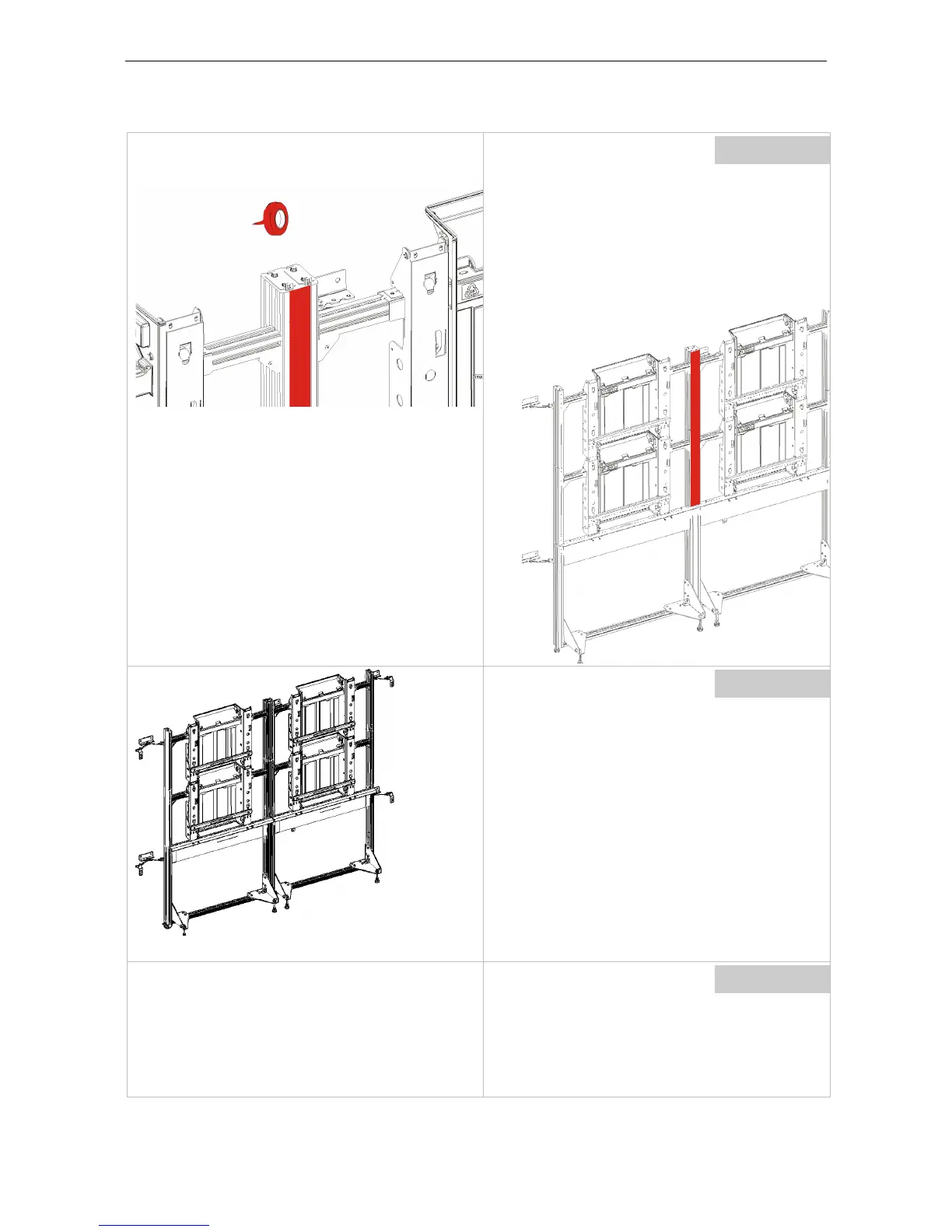

When the entire system is set up, gaps between
the profiles of the front sides of the front access
mount modules have to be covered with black
tape.
The black tape prevents light leak from behind
the structure.
If the entire structure is fixed to the wall accord-
ing the rules (cf. Pedestal 01
) and the floor posi-
tioning brackets are applied and fixed to the floor
it is possible to remove the front feet.
Pedestal
Due to the reduced height (-2mm) of HVD panels
the vertical profiles “protrude” some millimetre
on the top of the display wall.
Barco - LCD 5521 V4 - R591734 - Installation manual - Revision 00 - March-2017
