Barco LCD 5521 V4 User Manual

5. Mechanical setup of display wall with pedestals
5.2 Preparation

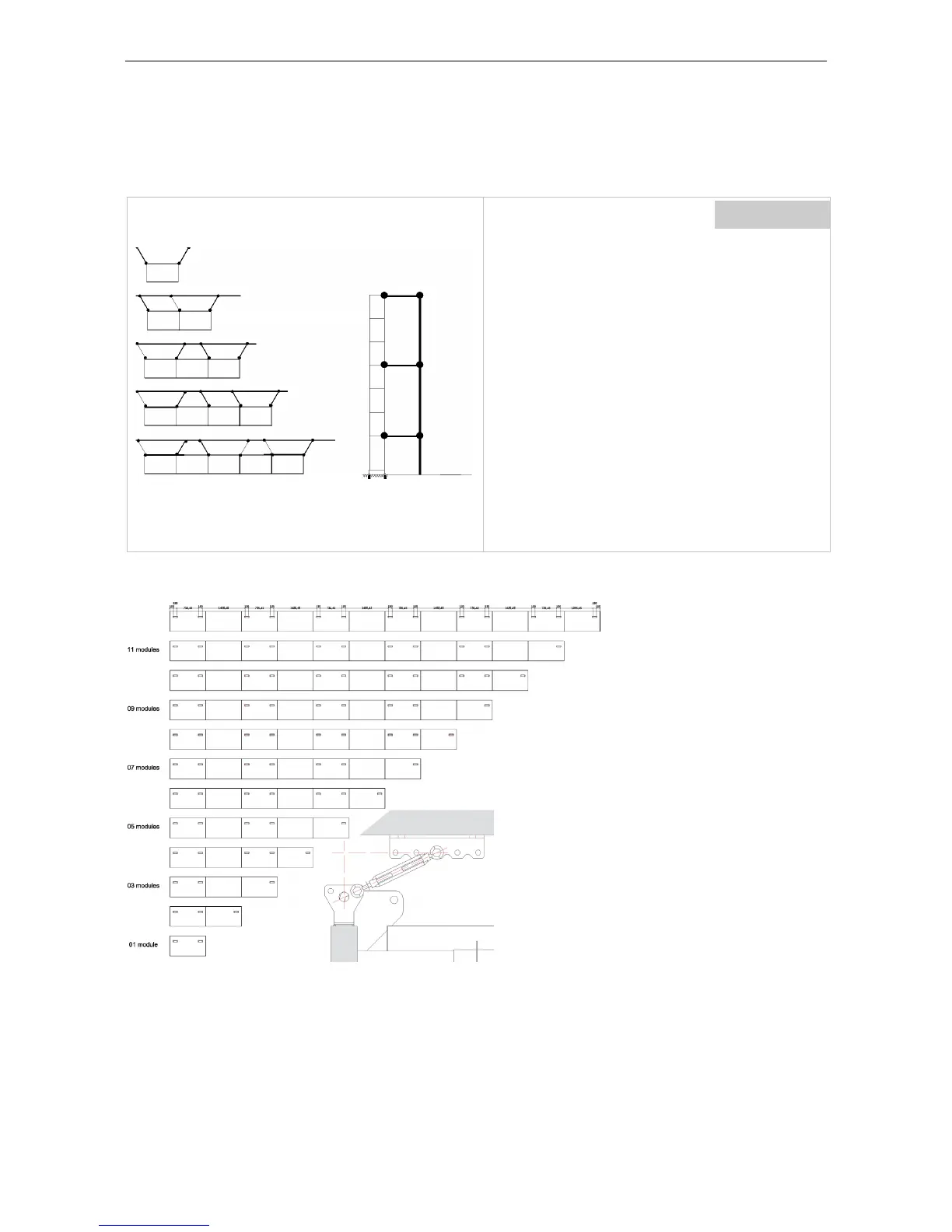

5.2.1 Wall fixation
The systems need to be fixed to the wall.
Pedestal
01
This is the rule:
Every column needs to be fixed to the wall.
The first wall fixation is at the height of the ped-
estal top.
Then every third row is fixed to the wall.
If mounted with an angle to the wall always the
following wall fixation has to be mounted with
the corresponding negative angle. Thus shearing
forces are compensated.
Barco - LCD 5521 V4 - R591734 - Installation manual - Revision 00 - March-2017
