4. Adjustment of the mechanics for the display

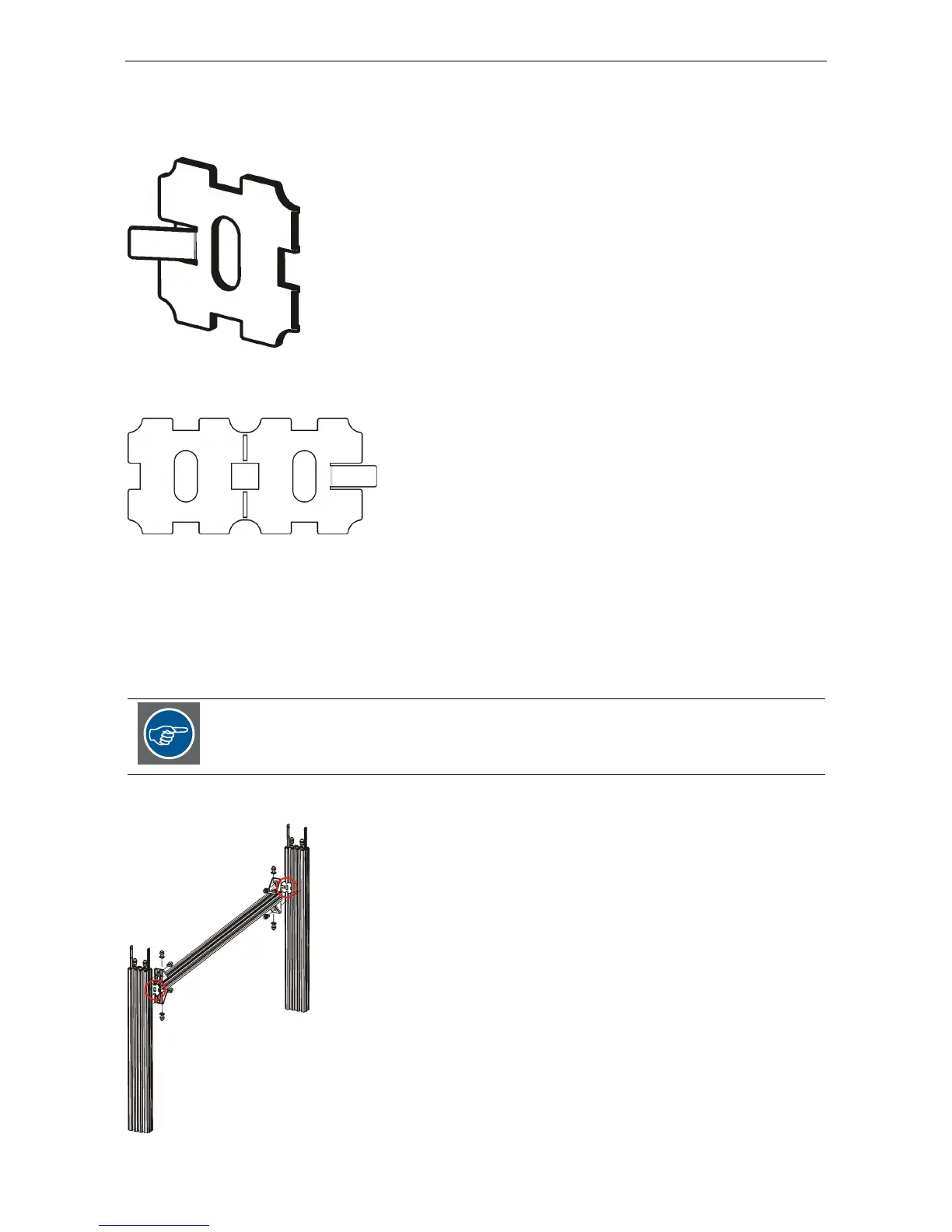

The spacer comes as a folded part with a total depth of 2mm and looks like this:
In case you need a spacer of 1 mm, you have to unfold this part and bend it sometimes to and fro to split it and
to halve the depth:
For installation, only the part with the “nose” is required. Scrap the part without nose.
4.2 Front access mount module
The adjustment in width is done via spacers (same as with pedestals)
The front access mount module comes with the spacers installed.
In case of OVD, KVD and IVD: mount the front access mount module as delivered
In case of HVD: prior installation, remove the spacers, see chapter 5!
Barco - LCD 5521 V4 - R591734 - Installation manual - Revision 00 - March-2017
