Barco LCD 5521 V4 User Manual

5. Mechanical setup of display wall with pedestals
5.5 Floor fixation of the display wall
Pedestal
77
For safety reasons the video wall has to be fixed
to the wall.
Before it is fixed to the wall the position on the
floor has to be fixed. This is done by means of th
e
floor fixation brackets.
Pedestal
78

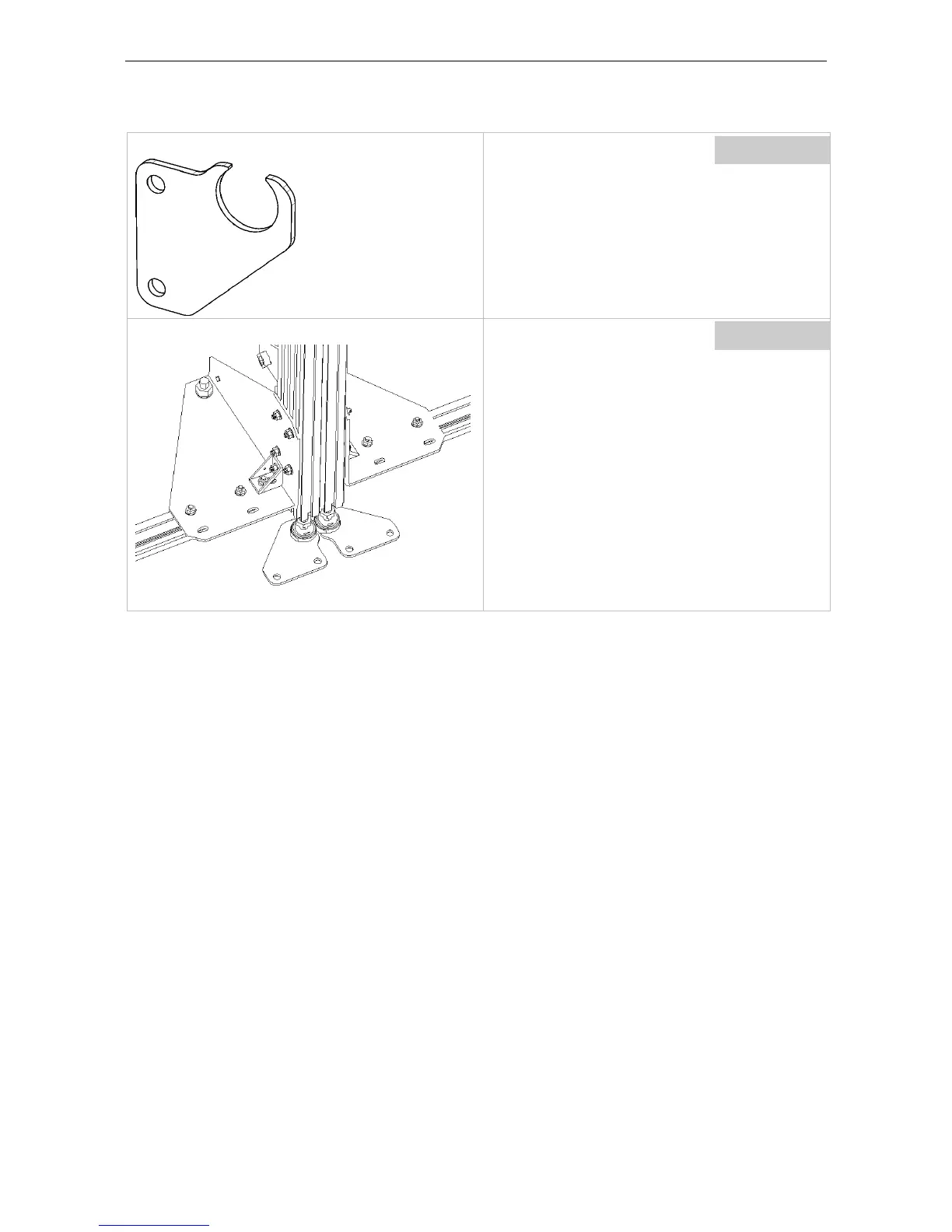

Apply the brackets on each foot.
Fix the brackets to the floor by means of a chemi-
cal anchor, either M10.
Mind to select the appropriate anchor according
the floor material.
Every fixation point has to withstand a pull out
force of 0.5kN.
In case of false floor: Make sure that the bracket
is fixed to the concrete!
Barco - LCD 5521 V4 - R591734 - Installation manual - Revision 00 - March-2017
