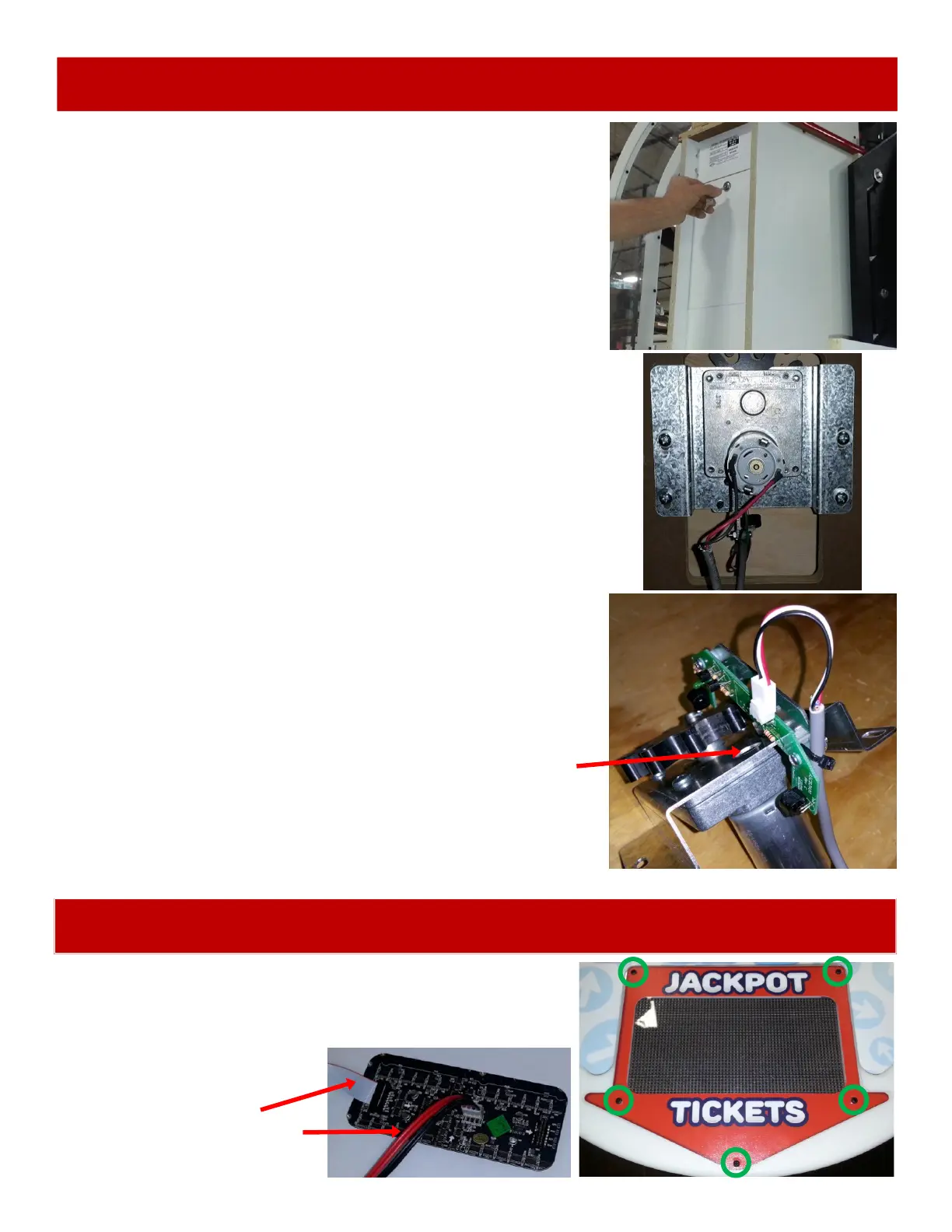

HOW TO ACCESS TOP BALL FILL MOTOR & SENSOR
Using a ladder, carefully unlock the upper back door of the
marquee.
This provides access to the Top Auger Motor and Encoder
Sensor.
To change motor or sensor:
Remove the 4 pan head bolts (A5BOPH220) with split washers
(A5WASI020) using a Phillips screwdriver.
This whole assembly will come down.
The sensor or motor can now be swapped out.
The top auger sensor watches the gear turn through this hole.
HOW TO CHANGE JACKPOT DISPLAY BOARD
Unplug the game from the wall, use a ladder to remove the 5 small
black screws A5SCPH030 using a small Philips screwdriver.
Carefully pull out the display
board and unplug:
the CE5841 ribbon cable
the 5 volt power CE3892 cable.
