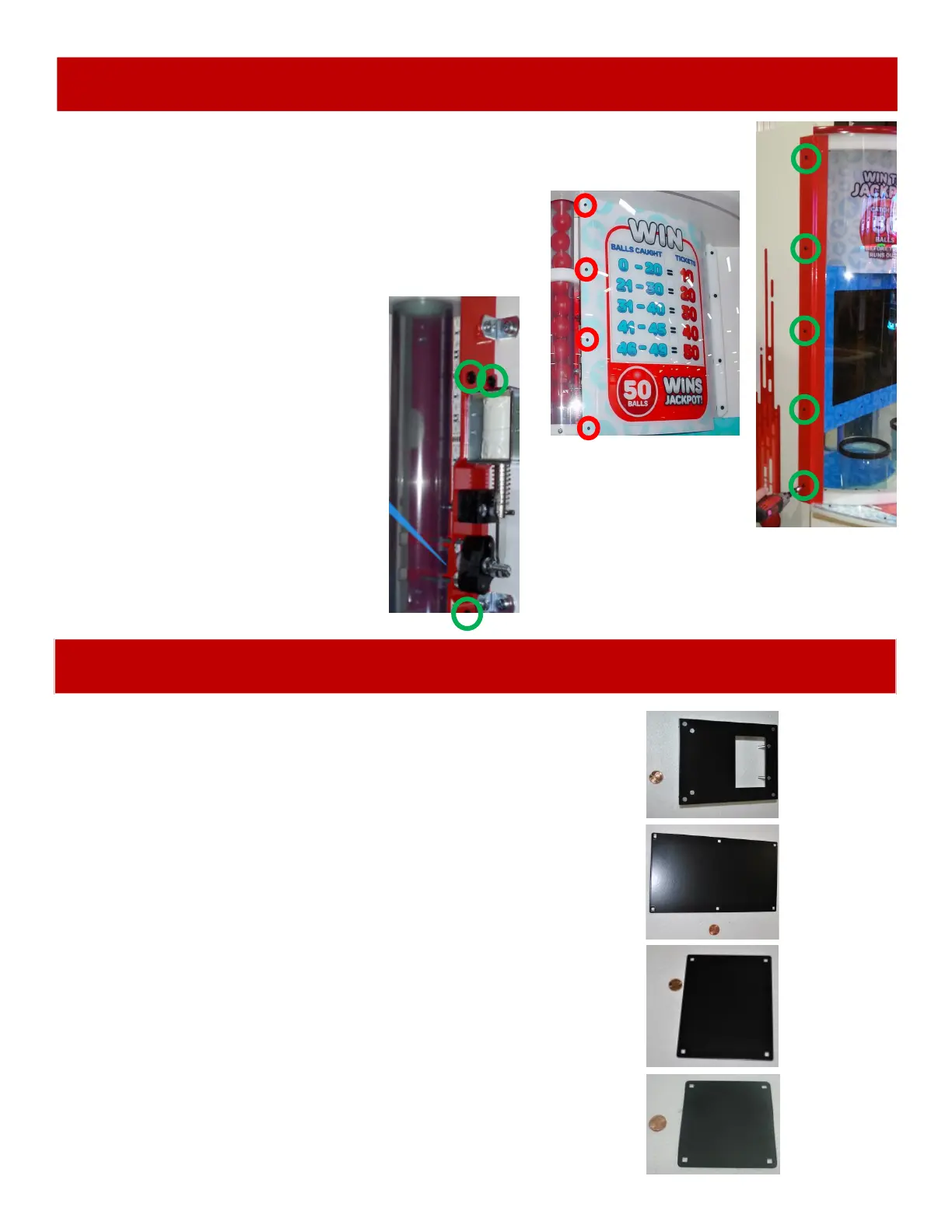

HOW TO REPLACE BALL DROP SOLENOID
Remove the 5 flat head bolts (A5BOBH030) using a 5/32” Allen wrench from the side rail.
Bend and flex the front plexi around the drop button and out of the way.
Remove the 4 small screws (A5SCPH030) using a small
Phillips screwdriver.
Bend and flex the plexi way from the solenoid.
AVAILABLE BLANKING PLATES
A5PL4200 DBA Plate used for Upstacker Bill Acceptor
A5PL9998 Plate used instead of Coin Mechanisms
A5PL8900 Plate used for Bill Validator
A5PL9995 Plate used instead of ticket dispenser
The solenoid assembly (AASO5800)
can now be removed and replaced by
removing the 3 black self taping
screws(A5SCPH190) using a # 2
square bit.
Pull the cable through the hole to
unplug connector.
