HOW TO REPLACE CAROUSEL MOTOR

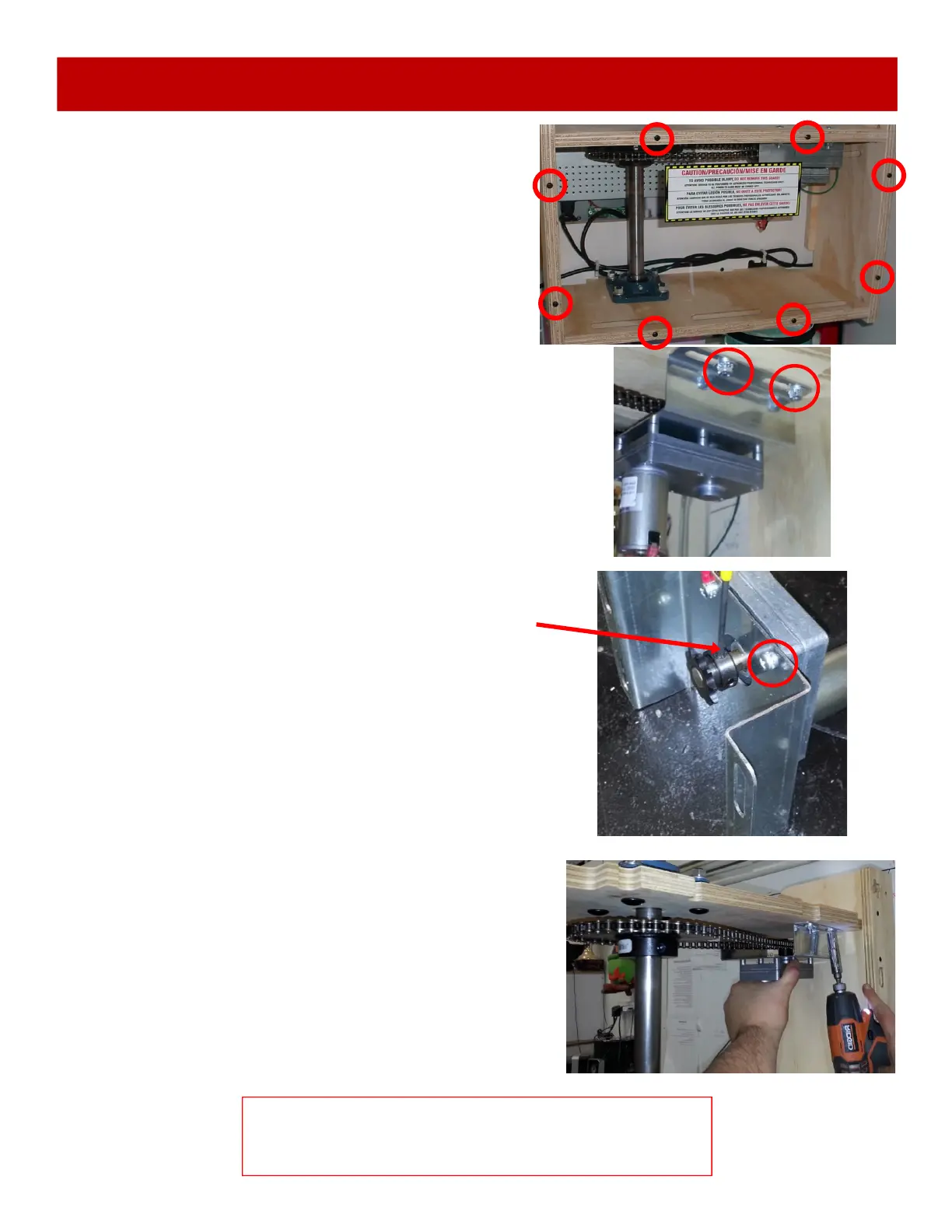

Unplug the game from the wall and remove the back door.
Remove the 8 black 8 screws (A5SCPH101) using a
# 2 square bit and remove the plexi shield.
Remove the motor bracket from game by removing the 4 nuts
using a 7/16” wrench.
Remove the sprocket from motor shaft by loosening the set
screw using a 1/8” Allen wrench.
Remove the motor from the bracket by removing the 4 bolts
(A5BOPH270) using a Phillips screwdriver.
Install the new motor onto bracket by installing the 4 bolts using
a Phillips screwdriver.
Install the sprocket onto new motor by tightening the set screw
using a 1/8” Allen wrench. The sprocket should be flush with the
end of the motor shaft.
Wrap the chain onto the sprocket and install the motor bracket
into game by hand threading the 4 nuts onto the bolts.
Push the motor bracket to the right as you tighten the 4 nuts
using a 7/16” wrench.
There should be about 1/8” play in the chain after it is tightened.
Warning: Do Not spin the carousel or motor by hand.
This will cause the gears in the motor to wear much faster
and may shorten the life span of the motor significantly.
