Bosch ACS 751 Repair Instructions

1 689 975 223 2013-10-21| Robert Bosch GmbH
20 | ACS 751/651 | Panelsen

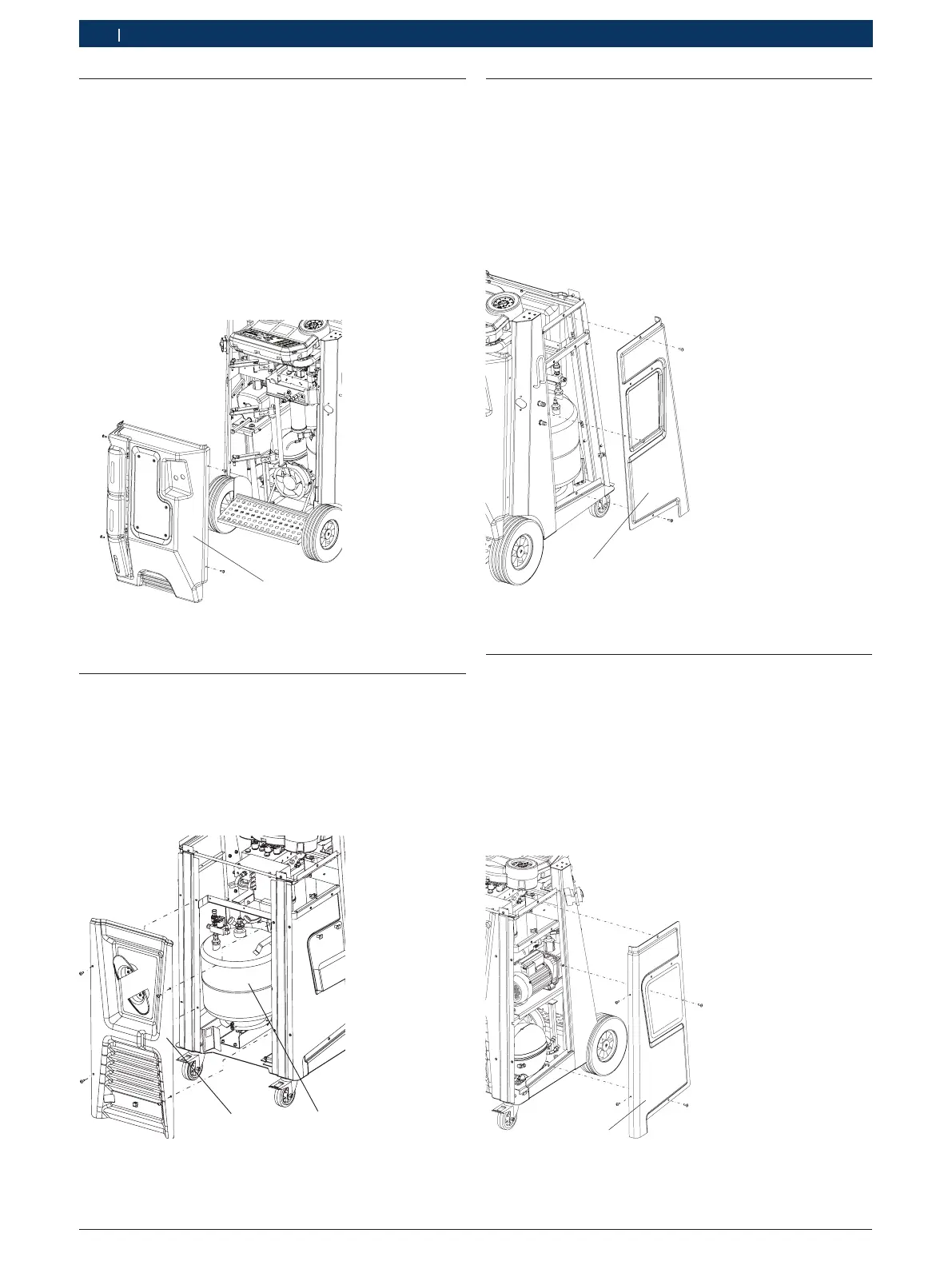

6.2 Opening the front panel
1. Apply the brakes.
2. Switch off the ACS 751/651.
3. Remove the top panel
4. Open the front service hatch.
5. Detach the bottles from the connectors.
6. Disconnect the service hoses.
7. Unfasten the screws on either sides of the front
panel.
8. Pull out the front panel.
459898_31Nkv
1
Fig. 18: Opening the front panel
1 Front panel
6.3 Opening the rear panel
1. Apply the brakes.
2. Switch the ACS 751/651 off.
3. Remove the mains connection.
4. Unfasten the screws on either sides of the rear panel.
5. Pull out the rear panel.
459898_30Nkv
2 1
Fig. 19: Opening the rear panel
1 Rear panel
6.4 Opening the right panel
1. Apply the brakes.
2. Switch the ACS 751/651 off.
3. Unfasten the knob screws on the service hatch and
remove the service hatch.
4. Unfasten the screws on the right panel.
5. Pull out the right panel.
459898_11Nkv
1
Fig. 20: Opening the right panel
1 Right panel
6.5 Opening the left panel
1. Apply the brakes.
2. Switch the ACS 751/651 off.
3. Disconnect the mains connection.
4. Unfasten the knob screws on the service hatch and
remove the service hatch.
5. Unfasten the screws on the left panel.
6. Pull out the left panel.
459898_10Nkv
1
Fig. 21: Opening the left panel
1 Left panel
