1 689 988 238 2012-11-06| Robert Bosch GmbH
Program description | ACS 651/751 | 109
en
10. Press the o or u keys to scroll through the list of
Renault vehicle models. Select the required model
and press E.

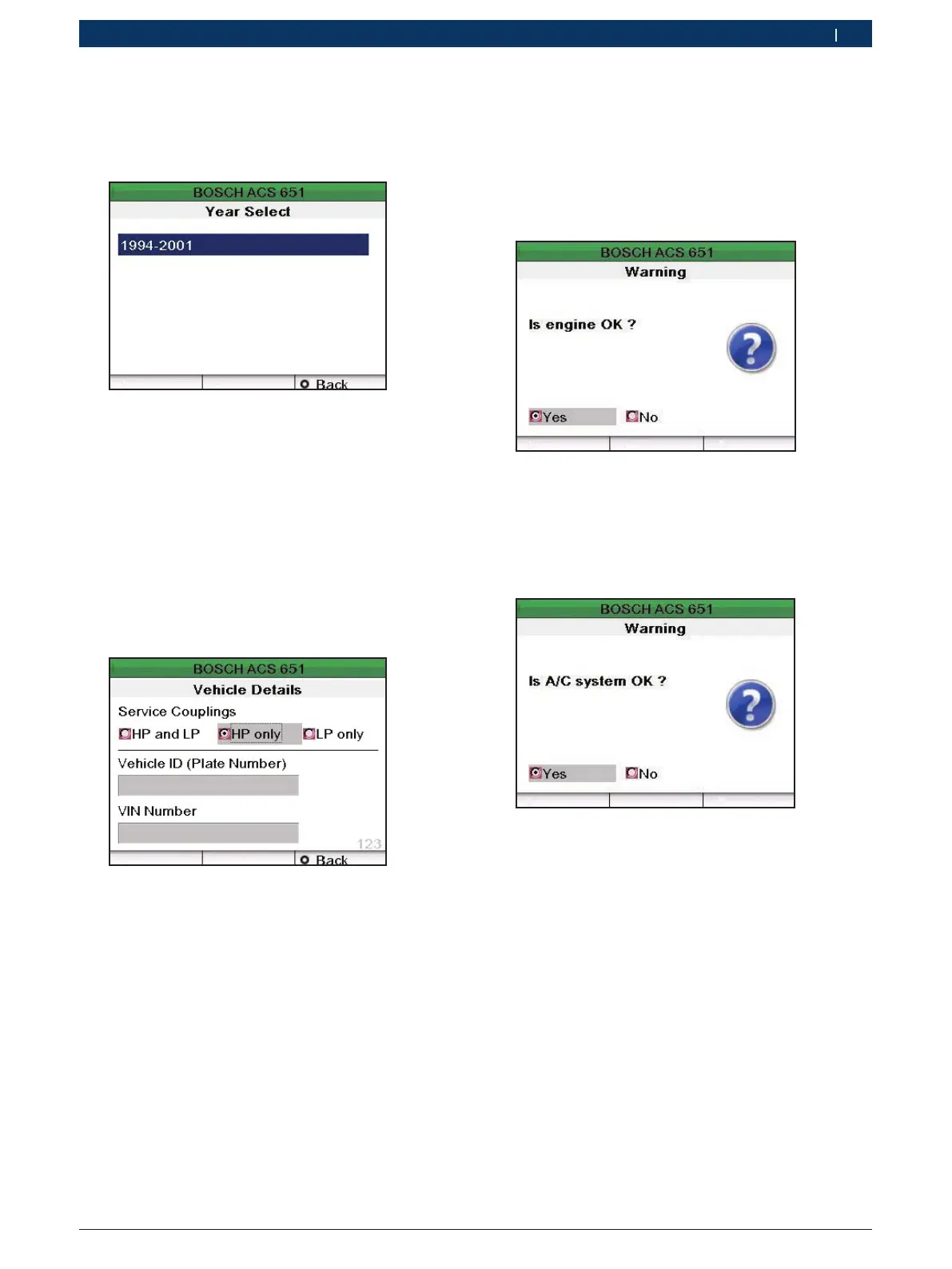

 The following screen is displayed.
11. Press E.
 The vehicle code and the vehicle information
corresponding to the selected vehicle model are
displayed on the screen.
12. Press E.
 The automode service parameters are displayed.
i To modify the automode service parameters,
refer to chapter 4.8.1.
13. Press E.
 The “Vehicle Details” screen is displayed.
14. Check the type of service couplings on the vehicle
A/C system. Connect the appropriate couplings to
the service connections.
! Do not use any tools to tighten the couplings.
15. Press u to navigate to the “Vehicle ID (Plate Num-
ber)” field. Enter the plate number of the vehicle
being serviced.
16. Press u to navigate to the “VIN Number” field. En-
ter the VIN number of the vehicle being serviced.
17. Press E.
 The following “Information” screen is displayed.
i If the engine is not OK, select “No” and press
E. Execute the steps listed in chapter 6.13.4.
18. If the engine is OK, press E.
 The following screen is displayed.
19. If the A/C system is OK, press E. Execute the
steps listed in chapter 6.13.2.
i If the A/C system is not OK, select “No” and
press E. Execute the steps listed in chapter
6.13.3.
