AutoDome Pipe Mount Installing the Pipe Mount | en 11
Bosch Security Systems, Inc. Installation Guide F.01U.251.410 | 1.0 | 2011.08
2.3 Pressurized Environmental Mounting
Option
The AutoDome Pressurized Environmental Housing must be
mounted to the appropriate pipe mount. The mounts for the
Pressurized Environmental Housing have been modified to
remove the guide pins that serve as installation aids. You must
mount the Pressurized Environmental Housing to the VG4-A-
9543N Pipe Mount.
CAUTION!
DO NOT mount a Pressurized Environmental Housing to the
VG4-A-9543 mounting option. This pipe mount contains guide
pins that are not compatible with the Pressurized

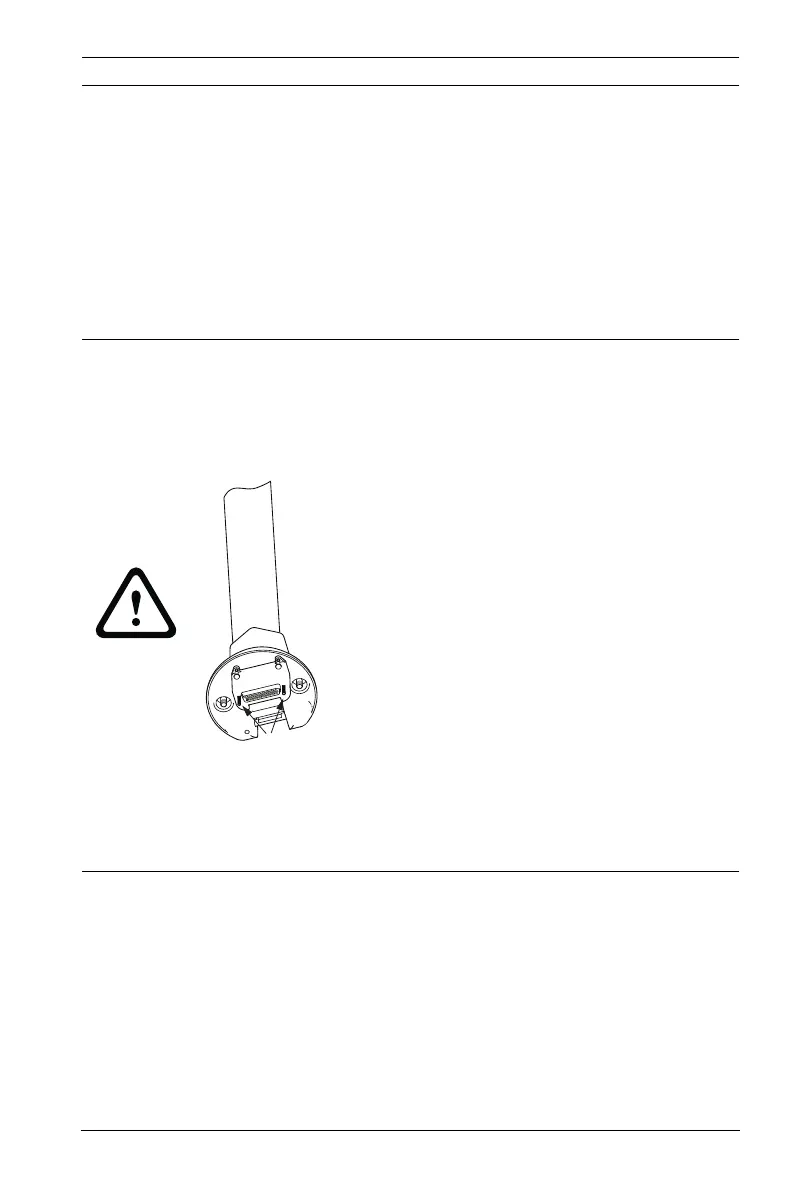

Environmental Housing. Refer to item 1 on the image below:
If your pipe mount contains these pins, DO NOT attempt to
mount a Pressurized Environmental Housing to this mount. You
must order the VG4-A-9543N pipe mount option for the
Pressurized Environmental Housing.
