AutoDome Pipe Mount Installing the Pipe Mount | en 29
Bosch Security Systems, Inc. Installation Guide F.01U.251.410 | 1.0 | 2011.08
2.8 Attach Pendant to Pipe and Tighten
1. Before attaching the Pendant, visually inspect the Pendant
dome and the Interface Board connectors for any blocked
pin holes and bent pins.
2. Tilt the Pendant enough to place its mounting hook on top
of the its housing, over the recessed hinge pin of the Dome
Cap.

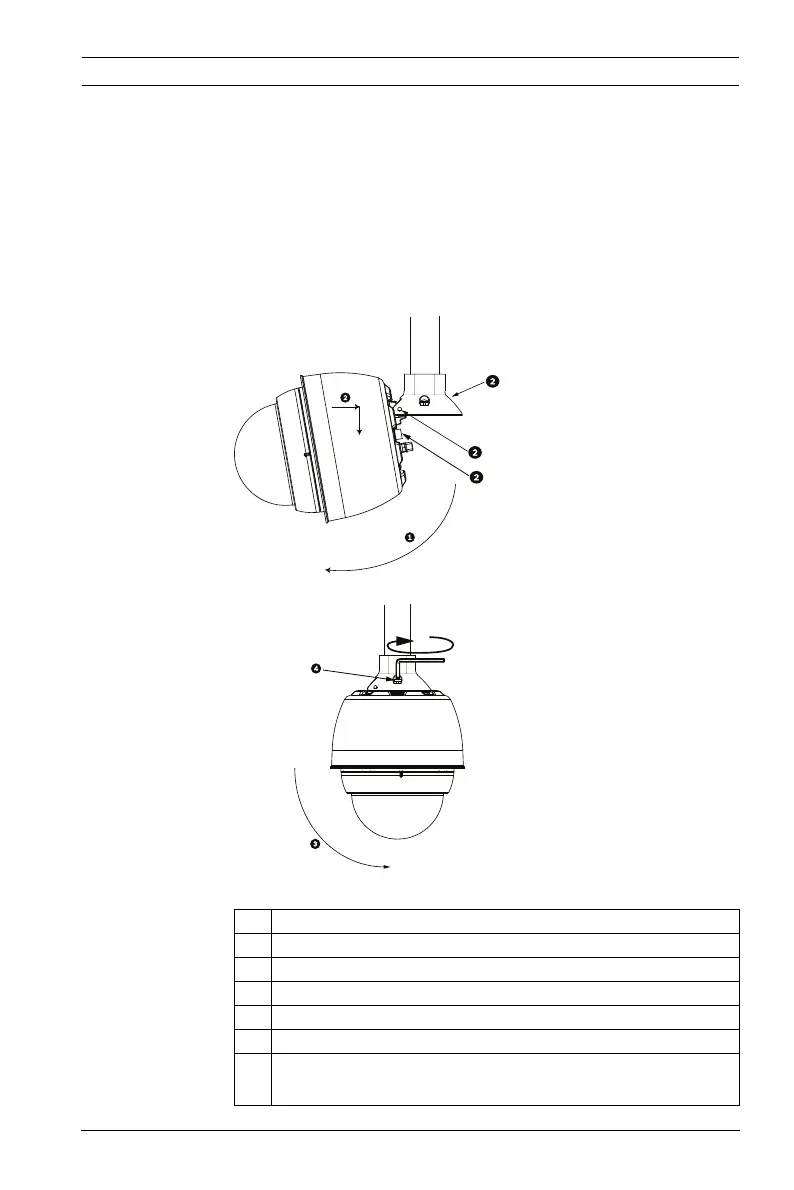

Figure 2.9 Pendant to Pipe Mount Attachment
1Tilt Dome
2 Hook and drop
2a Dome Cap
2b Recessed Hinge Pin
2c Dome Connector
3 Rotate down to engage dome connector
4 Tighten the two (2) mounting screws to a minimum
torque of 10-12 N-m (90-105 in.-lbs)
a
b
c
To Next Page
