Bosch VG4-A-9543 - Configuring Non-Supervised Alarms (Inputs 1 through 7); Configuring a Normally Open Non-Supervised Alarm

AutoDome Pipe Mount Alarms and Relay Connections | en 47
Bosch Security Systems, Inc. Installation Guide F.01U.251.410 | 1.0 | 2011.08
3. From the AutoDome main menu select Alarm Setup>Inputs
Setup, and set Alarm Input # to N.C.S. See the table below
for contact and condition details.
4.3 Configuring Non-supervised Alarms
(inputs 1 through 7)
You can configure alarms 3 through 7 as non-supervised
Normally Open (N.O.) or Normally Closed (N.C.) alarms.
4.3.1 Configuring a Normally Open Non-supervised
Alarm
1. Connect the alarm to the appropriate input (1 through 7)
and ground at the AutoDome.

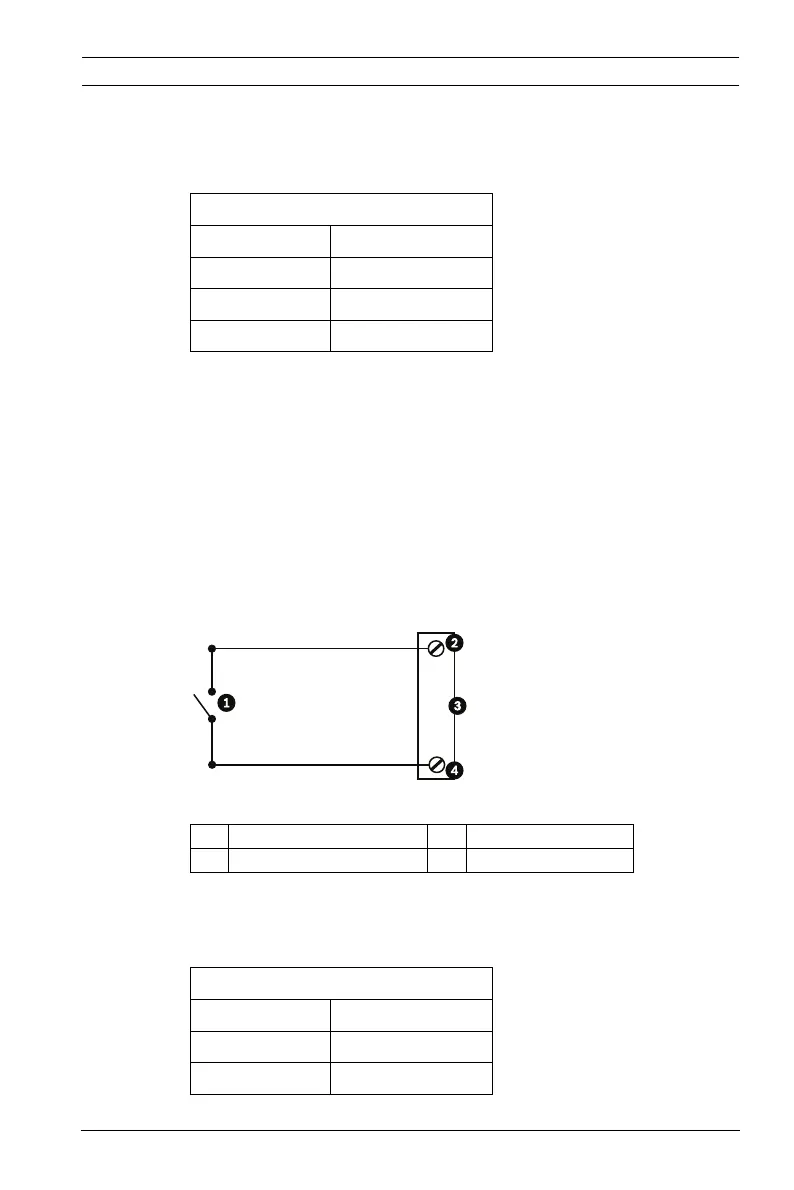

Figure 4.3 N.O. - Normally Open Non-supervised Connections
2. From the AutoDome main menu select Alarm Setup>Inputs
Setup, and set Alarm Input # to N.O. See the table below
for contact and condition details.
AutoDome Programmed N.C.S.
Contact Alarm Condition
Open Alarm
Closed Normal
Short Tamper
1 Dry Contact 3 Dome Connector
2 Alarm Inputs 1 to 7 4 Ground
AutoDome Programmed N.O.
Circuit Alarm Indication
Open Normal
Closed Alarm
