4. PREPARATION BEFORE SEWING

BAS-326G PS

4-7. Home position detection

Before starting home position detection, check that the

needle bar is at its highest position.

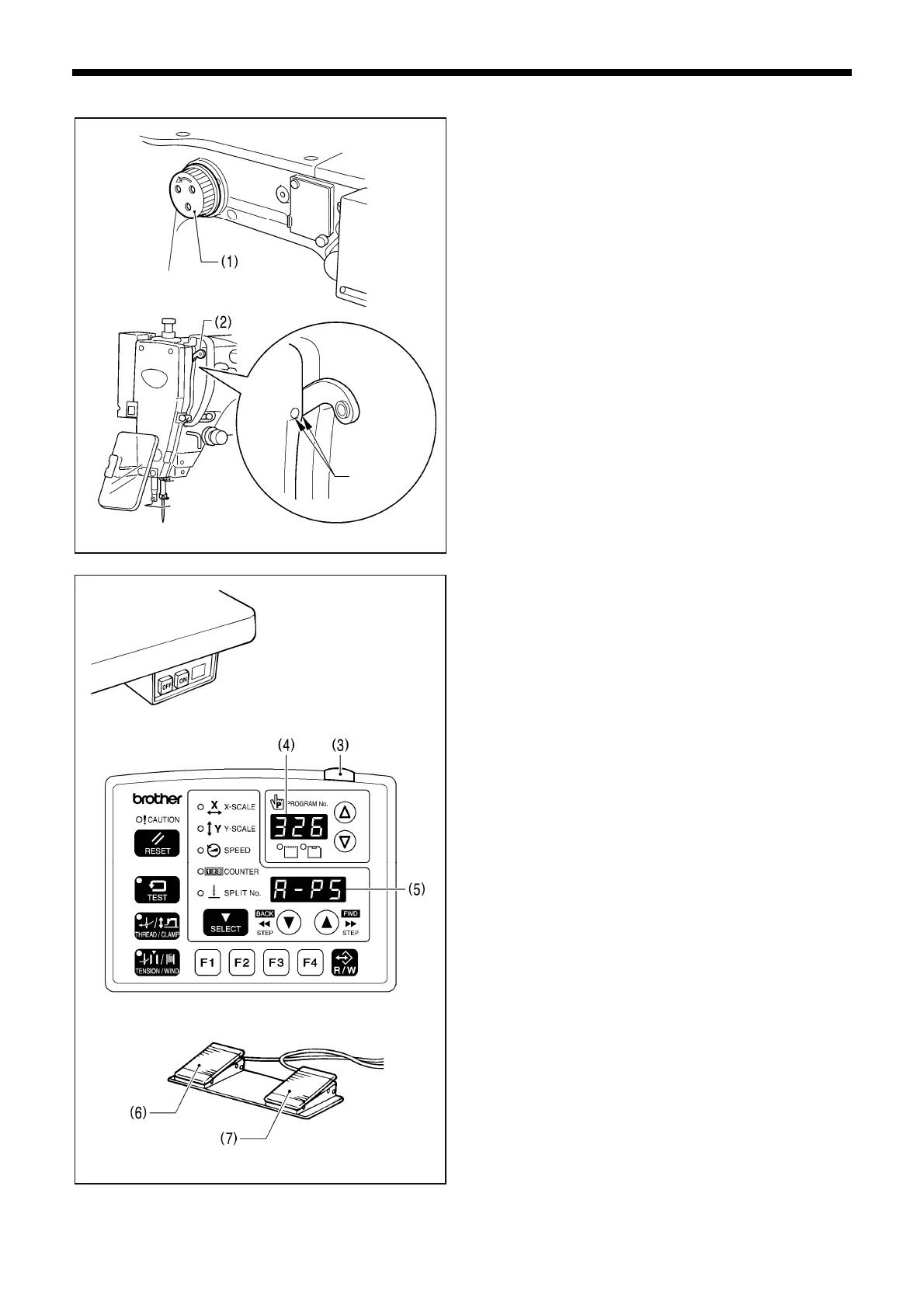

Turn the pulley (1) until the ridge at the bottom of the thread

take-up (2) is aligned with the { mark on the arm.

1. Turn on the power switch.

The power indicator (3) will illuminate, and the model

name [326] will appear in the PROGRAM No. display (4)

and [A-PS] will appear in the menu display (5).

After this, the program number will flash in the

PROGRAM No. display (4).

2. Depress the work clamp switch (6) to lower the work

clamp, and then depress the start switch (7). (After

home position detection is carried out, the work clamp

will move to the sewing start position and then it will

rise.)

* For programs with a large number of stitches, the

buzzer will sound after the home position is detected,

and then the work clamp will move to the sewing start

position.

NOTE:

If error "E110" is displayed when the start switch (7)

is depressed, turn the pulley (1) in the direction of

operation to clear the error display.

2154B 2155B

4421Q

4950Q

1876B

Aligned
