10. STANDARD ADJUSTMENTS
BAS-326G PS
60

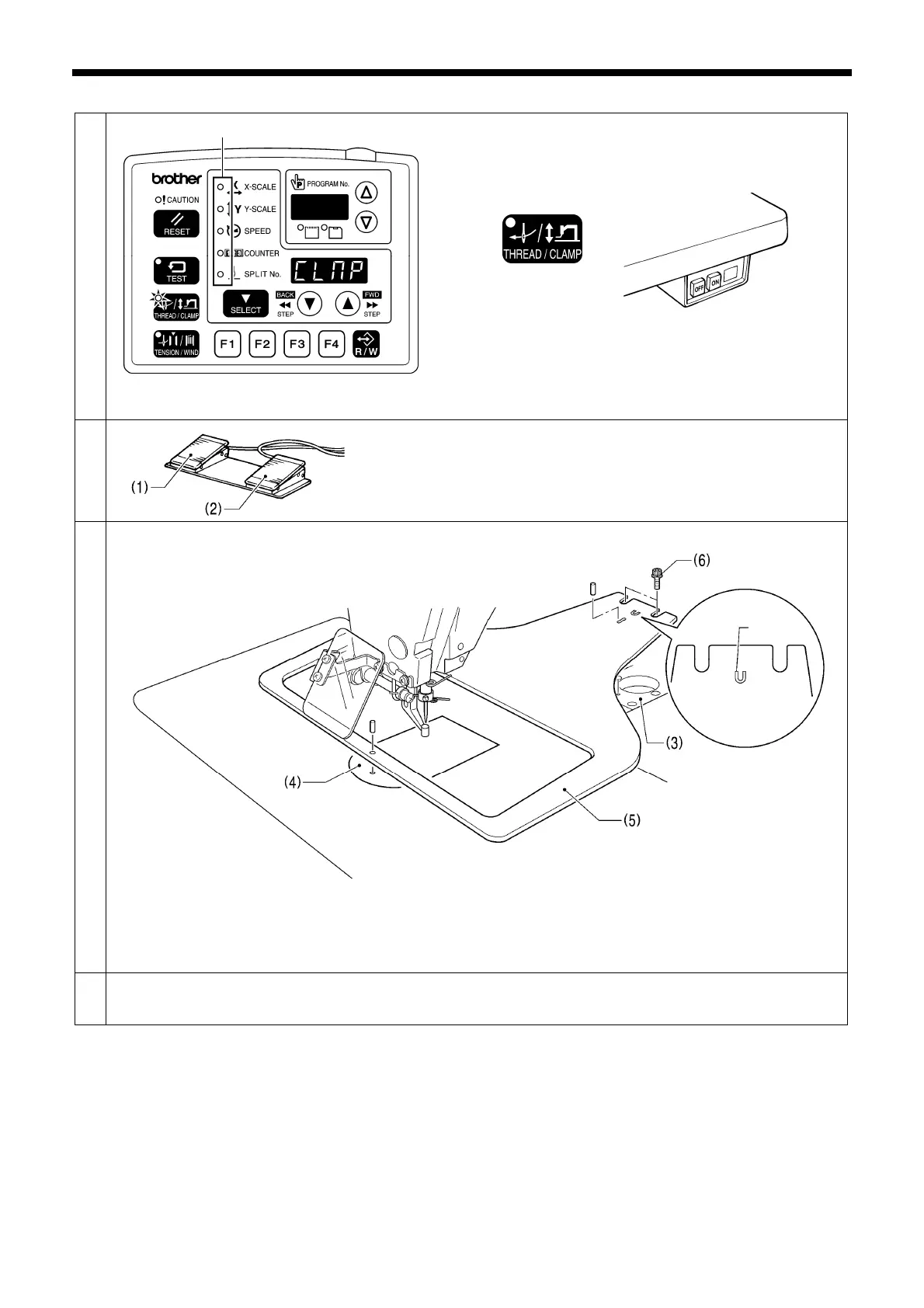

10-11-1. Installing the feed plate
1
MENU indicator switches off
THREAD/CLAMP indicator illuminates
While pressing the THREAD/CLAMP key, turn on the power
switch.
* Keep pressing the THREAD/CLAMP key until the model
name is displayed and the buzzer beeps once.
• "CLMP" will appear in the menu display.
2
Depress the work clamp switch (1) to lower the work clamp, and then
depress the start switch (2).
• After the home position is detected and the work clamp drops, the
feed mechanism will move to the feed plate installation position and
then the work clamp will rise.
3
Use a 2 mm diameter pin to align the holes in the X feed bracket (3) and the needle plate (4) with the two holes in the
feed plate (5), and then tighten the two bolts (6).
NOTE: Install the feed plate so that the surface with the index mark is facing upward.
4
End feed plate installation mode
Turn off the power.
All indicators switch off
5005Q
4014M
2164B
4421Q
Index
mark
