Brother BAS-326G PS User Manual

10. STANDARD ADJUSTMENTS
BAS-326G PS
61

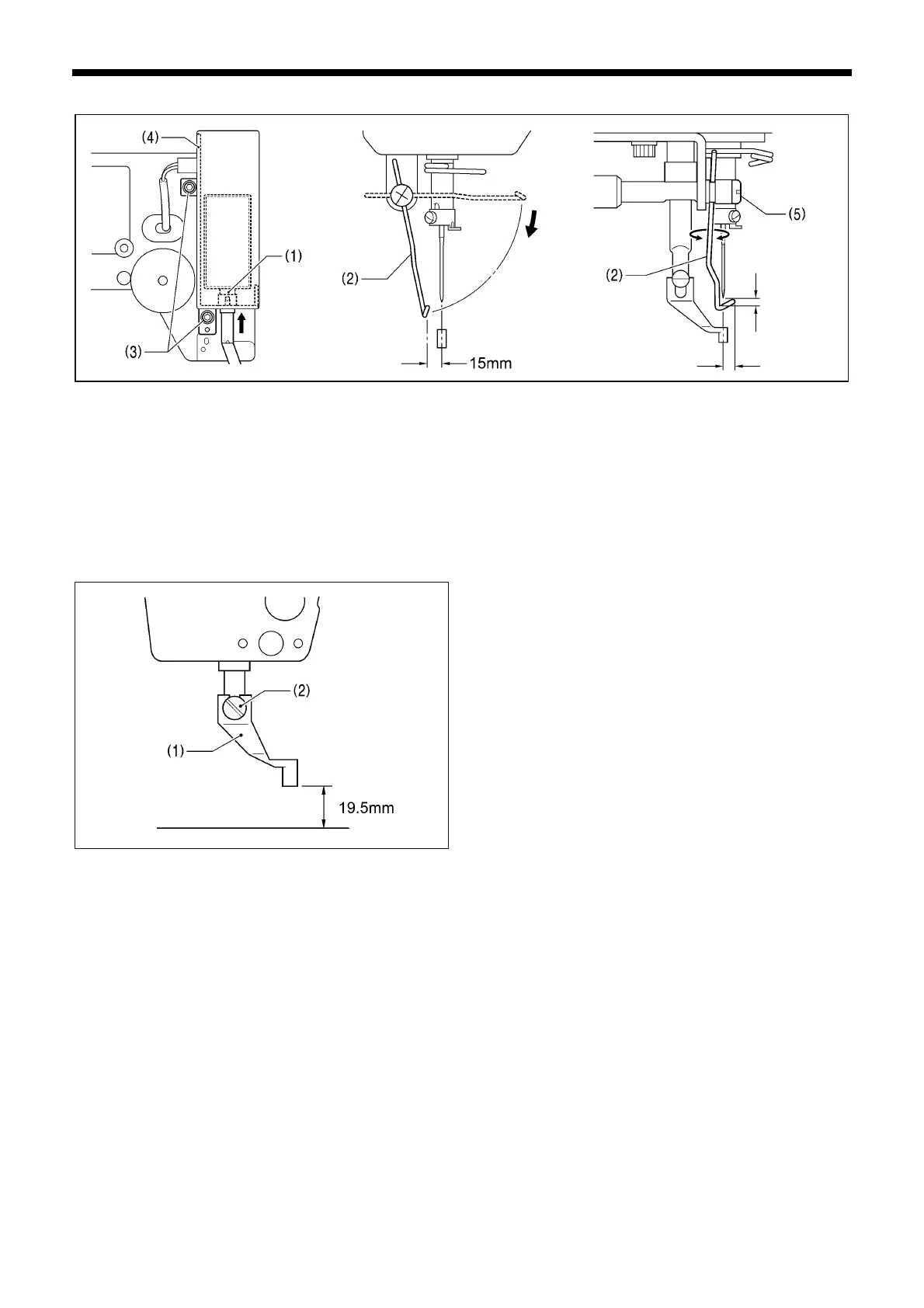

10-12. Adjusting the thread wiper
1. Loosen the two screws (3) and shift the entire solenoid setting plate (4) up or down to adjust so that the thread wiper (2) is
15 mm in front of the needle center when the plunger (1) of the thread wiper solenoid is driven to the full stroke.
2. Loosen the screw (5) and adjust the position of the thread wiper (2) so that the distance from the thread wiper to the tip of
the needle is approximately 2 mm and the tip of the thread wiper (2) is approximately 3 mm from the center of the needle
when the thread wiper (2) passes below the needle during operation.
Note: Check that the thread wiper (2) does not touch the finger guard.
10-13. Intermittent presser foot installation position
Install the intermittent presser foot (1) with the screw (2) so
that the distance from the bottom of the intermittent presser
foot to the top of the needle plate is 19.5 mm when the
sewing machine is stopped and the intermittent presser foot
(1) is raised.
Approx. 2mm
Approx. 3mm
1893B 1892B5007Q
1894B
