6. USING THE OPERATION PANEL (ADVANCED OPERATIONS)
43
BAS-326G PS

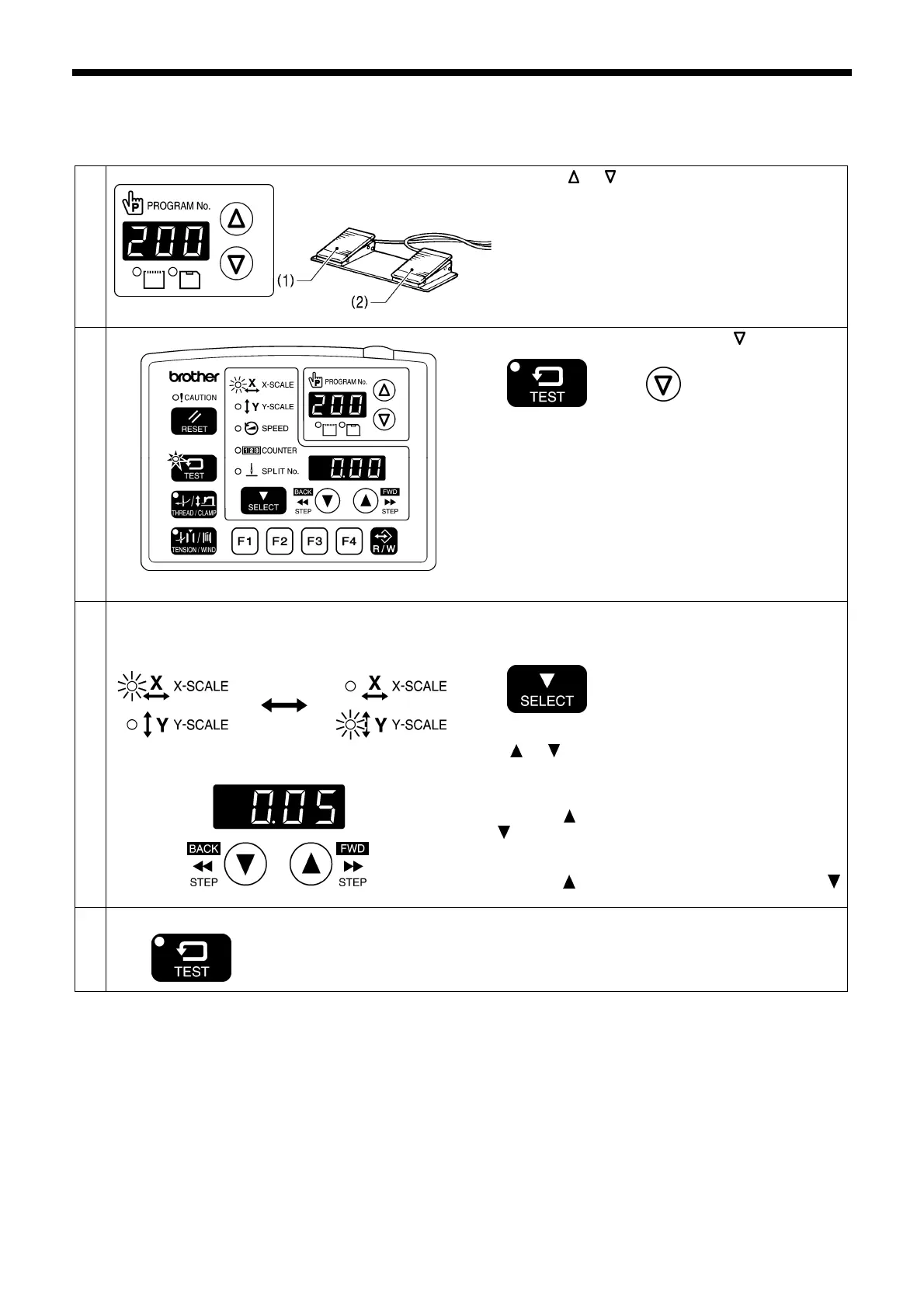

6-10. X and Y parallel movement of sewing pattern
You can move the feed mechanism to the desired position to move an already-programmed sewing pattern in a parallel
direction up, down or to the left or right.
1
1. Press the
or key to select the program number.
2. Depress the work clamp switch (1) to lower the work
clamp, and then depress the start switch (2).
• The work clamp will move to the sewing start
position.
2
TEST indicator illuminates, X-SCALE indicator flashes
While pressing the TEST key, press the
key.
• The parallel movement amount will appear in the menu
display in units of mm.
3
X-scale Y-scale
parallel movement mode parallel movement mode
Press the SELECT key to switch between the X-SCALE
indicator and Y-SCALE indicator flashing. Select either
direction.
The feed mechanism will move by 0.05 mm each time
the
or key is pressed. (When the distance reaches
10 mm, the amount of movement will change to 0.1 mm.)
• When using X-scale parallel movement mode, the
needle moves the corresponding distance to the right
when the
key is pressed, and to the left when the
key is pressed.
• When using Y-scale parallel movement mode, the
needle moves the corresponding distance backward
when the
key is pressed, and forward when the
key is pressed.
4
End parallel movement mode
TEST indicator switches off
Press the TEST key.
NOTE:
• The feed mechanism will not move to a position that would move the sewing pattern outside the sewing area.
• If you change the program number, X-scale or Y-scale settings, the amount of movement recorded will be reset.
• In addition, the amount of movement will be reset if the power switch is turned off and then back on again. However,
memory switch No. 465 is set to "ON", the amount of movement will be recorded and will not be reset. (Refer to the
service manual for details on memory switch No. 465.)
4975Q 4559Q
4561Q
4560Q
4974Q 4014M
